10FSN fm Transmitter 1w Radio Equipment PC Control

Specifications

Applications

-------------------------------------------------------------------------------------------------------------

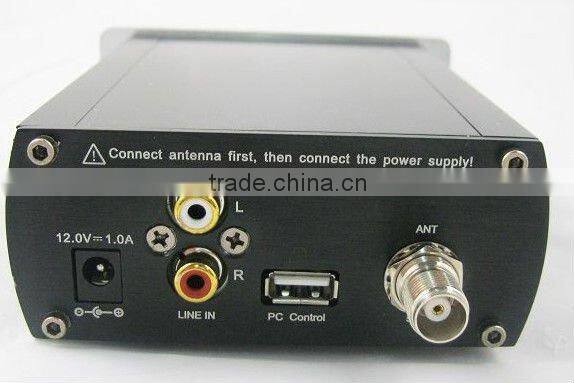

1W Fmuser ST-1A FM transmitter Silver equipment

 Description:

-------------------------------------------------------------------------------------------------------------

Fmuser FM transmitter is a professional grade low power FM transmitter operating in the commercial FM band (78 - 108MHz).
It is intended for indoor (churches, theaters, cinemas, auditoriums, conference halls , Hostels, Commercial Plaza ,Shopping Center,Government Building, Sports Center, Fitness Center,Conference) or outdoor (business parkings, tourist attractions, talking signs, Rural radio, Outdoor Advertising ,Outdoor Activities ,Orienteering) short range broadcasting in a variety of applications:  hearing assistance, translation, information, sound re-enforcement.
Its outstanding RF and audio performances, ruggedness, reliability and versatility make FMuser FM transmitter stand out from conventional hearing assistance systems.

PC Control Function

<-------------------------- PHOTO-------------------------->

Main Features:
1. Wide frequency range: 76~108MHZ
2. Optional Channels: STEREO/MONO
3. Count down Power ON/OFF function
4. Power output is adjustable from 0~1w.
5. One button to control all the functions.Easy operation.
6. Adopting several protection methods, it has strong empty load protection ability.
7.PC control: Easy control through software in PC. Download the software called SDA-01A PC CONTROL from our website before using.
8. Working status lighting: When the transmitter is standinby, the backlight of the knob is red.When the transmitter is working, the backlight of the knob is blue.

Technial Specification:
Power supply: DC12V
Working currect: <0.5A
Frequency range: 76~108mhz
Frequency stability: ±10PPM
Frequency stepping:100KHz
Working temperature: -10°c~50°c
Output impedance:50Ω
Power output:0W~1W continuously adjustable
Harmonics, spurious radiation   ≤-50dB
Audio distrotion: ≤0.3%
Frequency Response: 50Hz~15000Hz
Seperation:≥40 dB
Input level:≤-15 dBV
Frequency Modulation:±75KHZ
SNR≥60 dB
Size: 140mm(L)*105mm(W)*43mm(H)
Net weight: 550g

About Us

-------------------------------------------------------------------------------------------------------------

FMUSER is a high tech cooperation dedicated in providing solution project designing, technology exploring, manufacturing and marketing of fm transmitters. FMUSER has been in cooperation with plenty of countries overseas manufacturing fm transmitters as per customers’ needs, the business map reached to countries and regions like United States, United Kingdom, Japan and lots of countries from European and Southeast Asia. FMUSER is currently one of the biggest manufacturer of fm transmitters in china.

SPORTS BARS

Sports bars can be noisy environments. More often than not, there is no sound output from their TV or when there is, it is simply impossible to hear it. With a Fmuser transmitter installed, patrons can tune in and quietly receive the audio signal of the TV. A simple solution to please customers who want to know everything that is gonig on during their favorite sporting event!

Products list

Permit licenses

-------------------------------------------------------------------------------------------------------------

In Canada:There is a permit or license required on your particular application using transmitters, so please contact your nearest office Industry Canada to obtain related information.

In the U.S.A: There is a permit or license required on your particular application using transmitters, so please contact your nearest FCC office to obtain related information.
