05FSN CZH-05A 0.5w fm Broadcast Transmitter

Specifications

Applications

-------------------------------------------------------------------------------------------------------------

0.5w Fmuser CZH-05A FM broadcast transmitter black OEM ODM

Description:

-------------------------------------------------------------------------------------------------------------

Fmuser FM transmitter is a professional grade low power FM transmitter operating in the commercial FM band (87- 108MHz).
It is intended for indoor (churches, theaters, cinemas, auditoriums, conference halls , Hostels, Commercial Plaza ,Shopping Center,Government Building, Sports Center, Fitness Center,Conference) or outdoor (business parkings, tourist attractions, talking signs, Rural radio, Outdoor Advertising ,Outdoor Activities ,Orienteering) short range broadcasting in a variety of applications:  hearing assistance, translation, information, sound re-enforcement.
Its outstanding RF and audio performances, ruggedness, reliability and versatility make FMuser FM transmitter stand out from conventional hearing assistance systems.

Features

-------------------------------------------------------------------------------------------------------------

• User programmable frequency

• Easily choose your frequency LCD and buttons,No manual tuning required

• Japan Phase Lock Loop (PLL) Technology

• Works with standard FM receivers

• Hi-Fi Steroe audio quality

• Adjustable input level with over modulation indicator

• Stereo 1/4-F audio input connector

• Choice of GP antenna or telescopic antenna

• Temperature protect

• Standing Wave Protect

• 5 years warranty

Technical Specifications

-------------------------------------------------------------------------------------------------------------

• DC input:2.1mm

• input voltage:DC12V

• operating current:300mA

• Frequency:87~108MHz

• Modulation:WFM

• Frequency Step:0.1MHz

• Frequency stabilization method: PLL

• deviation:±75KHz

• RF Output:0.5 W

• Output Impedance:50Ω

• Harmonic radiation:-60db

• Frequency Response:50~15000Hz

• Distortion:0.2%

• Pre-emphasis delay:50us

• Stereo Separation:40db

• Input level:-15dbV

• Input impedance:50KΩ

• SNR:65db

• Match the microphone:ECM mic

• Size:110*74*29mm

• Color:black

• Weight:0.2kg

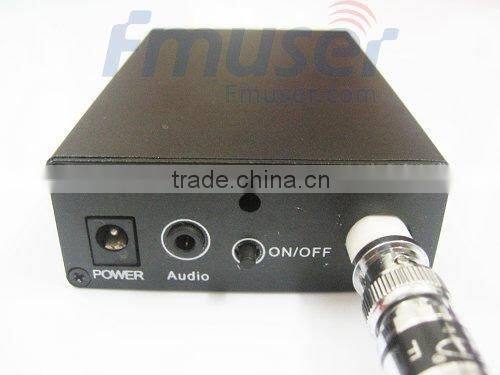

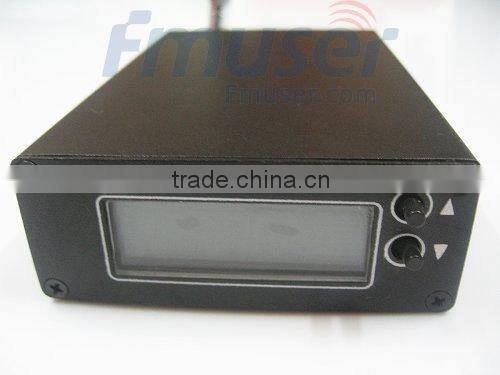

Front and Back panel description

-------------------------------------------------------------------------------------------------------------

1. FREQUENCY DISPLAY: displays the programmed transmitting frequency (87.0 – 108.0 MHz)

2. FREQUENCY UP: transmitting frequency UP

3. FREQUENCY DOWN: transmitting frequency DOWN

4. DC INPUT: Connect the DC adaptor (supplied) here (12V 1A,Core 2.1mm))

5. AUDIO INPUTS: connect your audio source here (Input level:-15dbv ; Connector:3.5mm)

6. DC POWER SWITCH: turns the transmitter ON or OFF

7. TRANSMITTING Connector:Connect the GP antenna OR telescopic antenna (50Ω BNC)

About Us

-------------------------------------------------------------------------------------------------------------

FMUSER is a high tech cooperation dedicated in providing solution project designing, technology exploring, manufacturing and marketing of fm transmitters. FMUSER has been in cooperation with plenty of countries overseas manufacturing fm transmitters as per customers’ needs, the business map reached to countries and regions like United States, United Kingdom, Japan and lots of countries from European and Southeast Asia. FMUSER is currently one of the biggest manufacturer of fm transmitters in china.

RELIGIOUS MATTER BROADCASTING

All over the world, Fmuser transmitters are used to broadcast the religious content of a celebration (mass, wedding, funeral) either inside the church building or outside. With the RF power of the transmitter lowered to cover inside the church area, hearing impaired people with the help of their own portable FM receiver are able to listen to the content of the celebration with crystal clear sound without suffering from natural reverberation and echoes in the hall. Numerous hearing impaired people are going back to church due to the new concept. When the transmitter is installed to broadcast outside the building, people that cannot attend the celebration are able to pickup the signal in their home with their FM receiver and participate to the celebration.

Products list

Permit licenses

-------------------------------------------------------------------------------------------------------------

In Canada:There is a permit or license required on your particular application using transmitters, so please contact your nearest office Industry Canada to obtain related information.

In the U.S.A: There is a permit or license required on your particular application using transmitters, so please contact your nearest FCC office to obtain related information.
