Home > Products > Magnetic level gauge > Magnetic Level Gauge for PN11MPa 600LB ANSI 450C

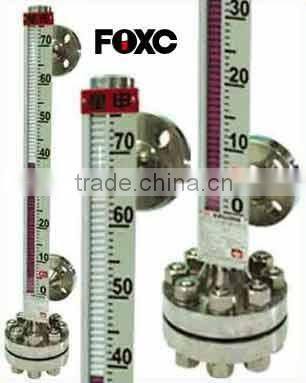

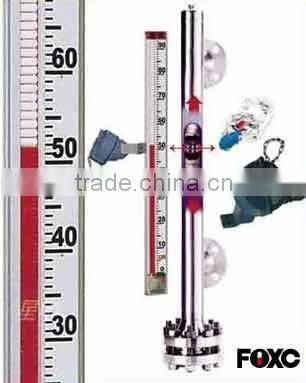

Magnetic Level Gauge for PN11MPa 600LB ANSI 450C
Negotiable
/ Set
1 Set(Min. Order)
- Shanghai China
- T/T Credit Card PayPal
You May Like
-
UHZ 517C12B Magnetic Float Level Gauge for Fuel Level Measuring Insturment Max 450 Centigrade 400lb
-
Magnetic Level Gauge for PN5.0MPa /300LB ANSI 450C
-
Magnetic Level Gauge/Tank Level Indicator
-
UHZ 517C10 Liquid Level Gauge for Magnetic Column Flap Indicator Max 200 Centigrade 150lb
-
Bicolor LED Indication Liquid Level Gauge
-
Magnetic Level Gauge/ Indicator
Product Details
| Place of Origin | Shanghai, China | Brand Name | XINGSHEN | |
| Model Number | UHZ517C12C |
Product Description
Specifications
1. Level Switch and Level Transmitter are optional2. For High Temperature High Pressure applications
3. Wide measure range
Measure Range: | 150~8000mm (center distance) or on request. |
Nominal Pressure: | PN11 MPa Class 600LB ANSI |
Working Pressure: | ≤8.25Mpa 450LB |
Working Temperature | 450°C 723.15K |
Medium Density | 500~2000kg/m³ |
Chamber(bypass tube) | Φ63.5×4mm |
Process Connection | Factory Standard: DN25 PN 11MPa HG20592-97; 600LB 1" ANSI B16.5; Optional std: 1/2"~ 4" ANSI B16.5; DN10-DN100 GB/T 9112-2000; JB/T 79.1-94 SH3406-1996 DIN 2635;DN10-DN100; DIN 2527;DN10-DN100 10A~100A JIS 40K FF RF; 1/2"~4" JPI 600LB RF |
Chamber/Flange/ Wetted Material | 304, 316, 316L, 316Ti, 321, 1.4301, 1.4435, 1.4401, 1.4571, 1.4783, 0Cr18Ni9, 1Cr18Ni9Ti, 00Cr17Ni14Mo2, 0Cr17Ni12Mo2, 0Cr18Ni2Mo2Ti |
Magnetic Float | Its size depends on liquid density Material: Titanium, 316SS or 316L SS |
Optional Items | 1. Tri-magnet level switch 2. Quad-magnet level switch 3. Heating Jacket 4. Depth Vacuum heating jacket 5. Coil type heating jacket 6. Drain/Vent valves 7. Transmitter(4~20mA, two/ three wire,HART) 8. Magnetostrictive level transmitter |
