Home > Products > Magnetic level gauge > UHZ 517C12A Fuel Tank Gauge Float for High Temperature 450 Centigrade Mid-pressure 300lb Level Indicators

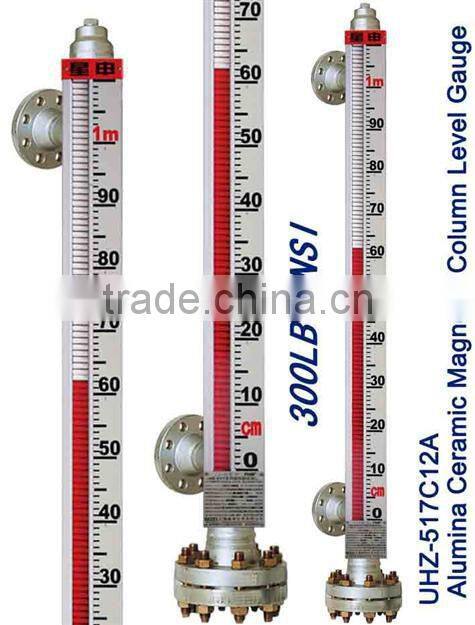

UHZ 517C12A Fuel Tank Gauge Float for High Temperature 450 Centigrade Mid-pressure 300lb Level Indicators
Negotiable
/ Set
1 Set(Min. Order)
- Shanghai China
- T/T Credit Card PayPal
You May Like
-
UHZ 517C12B Float Type Level Sensor for Water Level Measurement Instruments High Temperature 450 Centigrade High Pressure 400lb
-
UHZ 517C12B Liquid Level Indicator for Fuel Level Meter 450 Centigrade 400lb
-
UHZ 517C12C Water Tank Level Gauge for Liquid Level Indicator 450 Centigrade 600lb
-
UHZ 517C12C Water Level Transmitter for Electronic Water Level Controller High Temperature Pressure 450 Centigrade PN10 600lb
-
UHZ 517C12D Diesel Fuel Tank Level Gauge for Fuel Sensor Gauge High Temperature 520 Centigrade High Pressure PN16.0 900lb
-
UHZ 517C12D Gas Level Indicator for Fuel Tank Gauge 520 Centigrade 900lb
Product Details
| Place of Origin | Shanghai, China | Brand Name | FOXC | |
| Model Number | UHZ 517C12A |
Product Description
Specifications
1. high temperature applications, 450 centigrade2. easy reading, visual indication, long life
3. with optional function

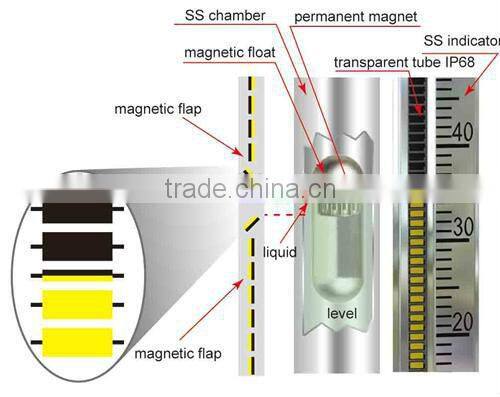

PRODUCT DIAGRAM :

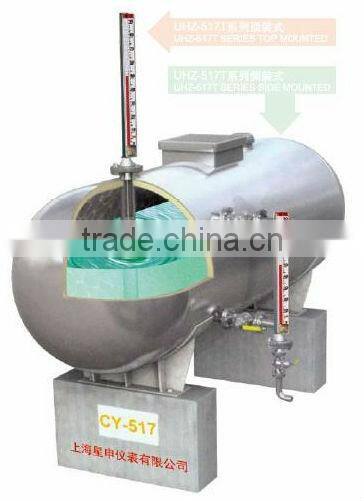

LEVEL GAUGE APPLICATION DIAGRAM :
TECHNIQUE PARAMETER :
Measure Range: | 150~8000 mm (center distance) or on request. |
Nominal Pressure: | PN5.0MPa Class 300LB ANSI |
Working Pressure: | ≤3.75Mpa 225LB |
Working Temperature | 450°C (723.15K) |
Medium Density | 500~2000 kg / m³ |
Chamber(bypass tube) | Φ63.5×3 mm |
Process Connection | Factorty Standard: DN25 PN 4.0MPa HG20592-97; 300LB 1" ANSI B16.5;
Optional std: 1/2"~ 2"ANSI B16.5; DN10-DN50 GB/T 9112-2000; JB/T 79.1-94 SH3406-1996 DIN 2635; DN10-DN50; DIN 2527; DN10-DN50 10A~50A JIS 20K FF RF; 1/2"~2" JPI 300LB RF |
Chamber/Flange/ Wetted Material | 304, 316, 316L, 316Ti, 321, 1.4301, 1.4435, 1.4401, 1.4571, 1.4783, 0Cr18Ni9, 1Cr18Ni9Ti, 00Cr17Ni14Mo2, 0Cr17Ni12Mo2, 0Cr18Ni2Mo2Ti, 1Cr18Ni9Ti |
Magnetic Float | Its size depends on liquid density Material: Titanium, 316SS or 316L SS |
Optional Items |
|

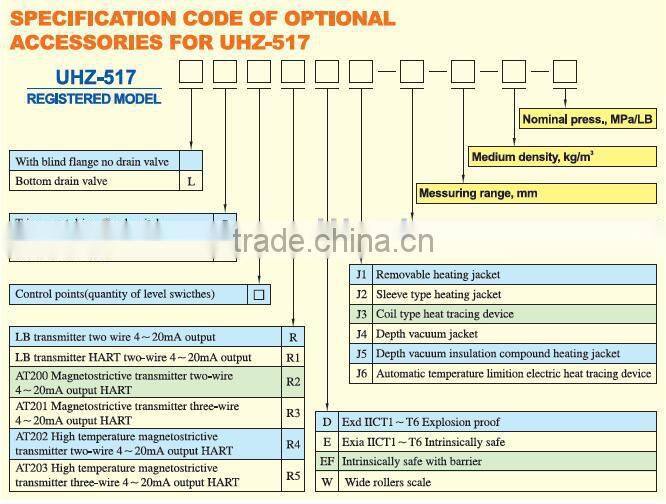

SPECIFICATION MODEL LIST :
