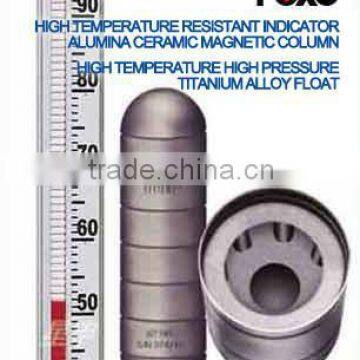

Magnetic Level Gauge for PN15MPa /900LB ANSI 520C Degree

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China		Brand Name	XINGSHEN
Model Number	UHZ517C12D

1. Level Switch and Level Transmitter are optional
2. For High Temperature High Pressure applications
3. Wide measure range

Technique Parameter

Measure Range:	150~8000mm (center distance) or on request.
Nominal Pressure:	PN15MPa Class900LB ANSI
Working Pressure:	≤11.25Mpa 675LB
Working Temperature	520°C 793.15K
Medium Density	500~2000kg/m³
Chamber(bypass tube)	Φ63.5×6mm
Process Connection	DN25 PN 15MPa HG20592-97; 900LB 1" ANSI(Factory std) ANSI B16.5; 1/2"~ 4" DN10-DN50 GB/T 9112-2000; JB/T 79.1-94 SH3406-1996 DIN 2635;DN10-DN100; DIN 2527;DN10-DN100 10A~100A JIS 63K FF RF; 1/2"~4" JPI 900LB RF
Chamber/Flange/ Wetted Material	304, 316, 316L, 316Ti, 321, 1.4301, 1.4435, 1.4401, 1.4571, 1.4783, 0Cr18Ni9, 1Cr18Ni9Ti, 00Cr17Ni14Mo2, 0Cr17Ni12Mo2, 0Cr18Ni2Mo2Ti
Magnetic Float	Its size depends on liquid density Material: Titanium, 316SS or 316L SS
Optional Items	Tri-magnet level switch Quad-magnet level switch Heating Jacket Depth Vacuum heating jacket Coil type heating jacket Drain/Vent valves Transmitter(4~20mA, two/ three wire,HART) Magnetostrictive level transmitter

Model Table

UHZ-517C12D		With blind flange, no drain valve
	L	Bottom drain valve
		G	Tri-magnet driven level switch
		GH	High temperature four-magnet driven level switch
				Control points(quantity of level switches)
				R	Ltransmitter two wire 4~20mA output
				R1	LB transmitter HART two-wire 4~20mA output
				R2	AT200 Magnetostrictive transmitter two-wire 4~20mA output HART
				R3	AT201 Magnetostrictive transmitter three-wire 4~20mA output HART
				R4	AT202 High temperature magnetostrictive transmitter output HART
				R5	AT203 High temperature transmitter three-wire output HART
					D	ExdIIBT1~T6 Explosion proof
					E	ExiaIICT1~T6 Intrinsically safe
					EF	Intrinsically safe with barrier			W	Wide rollers board
							Removable heating jacket		J2	Sleeve type heating jacket
						J3	Coil type heat tracing device		J4	Depth vacuum jacket
						J5	Depth vacuum insulation& compound heating jacket
								Installation height(N/A for side-side mounted level gauge
									(M)Measuring range,mm
										Medium density,kg/m³
											Nominal pressure
