XQZ-A Gap Making Machine make gap on cantilever beam and simple beam impacting testing machine
Negotiable
/ Set
1 Set(Min. Order)
- Qingdao
- T/T Credit Card
You May Like
-
Plastic Pipe Pressure Testing Machine for PVC,PRE etc material
-
Tubular materials plastic pipe withstanding pressure blasting testing machine
-
XGY Series Tubular Materials Withstanding Pressure and Blasting Testing Machine, Plastic Tubular Materials Test Equipment
-
Tubular Materials Withstanding Pressure(Blasting) Testing Machine/Electronic Power and Plastic Testing Machine Usage Hydrostatic
-
Tubular Materias Pipe Pressure Testing Machine+gas pipes water pipes machine+plastic pipes testing machine
-
Tenson Plastic Tube/Pipe Compression Testing Machine
Product Details
| Place of Origin | Shandong, China | Brand Name | TENSON | |
| Model Number | XWY-300D | Power | Electronic | |
| Usage | Deformation Testing Machine |
Product Description
Specifications
1.making machine2. Cutter stroke: 36mm
3.The dimension of gap is accurate
4.Type of specimen: 1type, 2type, 3type, 4type

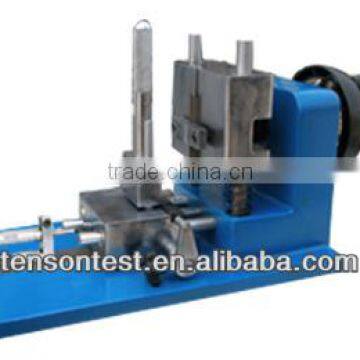

XQZ-A Gap Making Machine make gap on cantilever beam and simple beam impacting testing machine
1. Introduction:
This machine is used to make gap on cantilever beam and simple beam impacting testing machine. It can make one or more gap at one time. The dimension of gap is accurate.
2. Main Technical Parameters:
2.1. Cutter stroke: 36mm;
2.2. Feeding stroke: 10mm, the feed volume is variable
2.3. Type of specimen: 1type, 2type, 3type, 4type
2.4. Type of gap: A type, B type, C type;
2.5. Parameter of cutter:
Cutter of A type: 45°±30′, r=0.25±0.025;
Cutter of B type: 45°±30′, r=1±0.025;
Cutter of C type: width Ⅰ=2±0.2, r≤0.1;
width Ⅱ=0.8±0.1, r≤0.1
