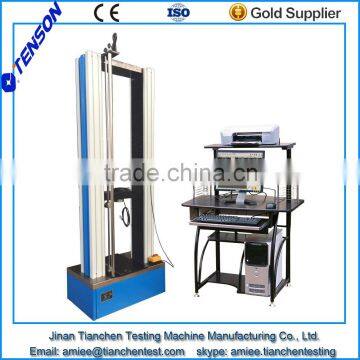

XHW-20D Computer Control Tubular Materials Ring Stiffness Testing Machine

XHW-20 Computer Control Tubular Materials Ring Stiffness Testing Machine

Main functions

This machine is mainly used for the ring stiffness test ( including ring softness test and flatness test) of all kinds of tubular materials. To meet with special needs. it can add three functions, i.e. tension, compression and bending  testing, the machine is one kind of multifunctionaal electronic universal testing machine.

Main technical parameters

2.1 Max. Capacity: 20kN
2.2 Measure range: (0.2~20)kN
2.3 Accuracy: ±1%
2.4 width of test space: 370mm
2.5 Compression speed: 0.01-500mm/min,variable speed.
2.6 Diameter range of pipe specimen: 20- 800mm or at customer’s requirement
2.7 Power supply: Single phase, 220v±10%, 50Hz
2.8 Work environment: room temperature~30℃, the relative humidity is less than 80%.

Product features

1. For the tubular materials that the inner diameter is anomalistic, the measuring device of wall thickness deformaton should be equipped to mearue the deformation of inner diameter. The measuring accuracy is high and control is reliable.

2. Computer control type adopts avanced CMOS  chip itegrated technology and professionally designed data acquiring mu-factor and controlling software, which can automatically calculate rign stiffness, rign softness and so on.
