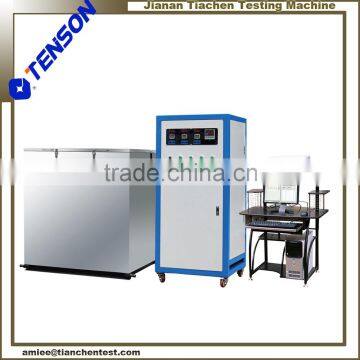

25Mpa PPR Tubular Withstanding Pressure Blasting Testing Machine 3 Stations Working

25Mpa PPR Tubular  Withstanding Pressure Blasting Testing Machine 3 Stations Working

Usage

XGY-25 tubular materials withstanding pressure ( blasting) testing machine  is mainly used for all kinds of plastic pipes at a constant temperature and pressure transient performance of the bursting pressure of the determination of the plastic pipe manufacturers,tertiary institutions, the quality of scientific research units and units of essential equipment.

Functions and features

1.Closed loop control,which makes the accuracy of pressure dwell are more reliable;
2.Each circuit is separately controlled and can set different testing pressure and time;
3.Automatically conserving the testing data when the power supply is cut off and automatically continuing to finish the testing after the current is switched on again insure the testing continuity;
4.Real time detecting test state during test process;automatically note the testing result and
print in normal format;
5. Reserved data interface can link with internet directly and achieve resource sharing;
6.Import solenoid valve,pressure sensors,booster pumps;The pressing speed is fast and
controlled accurately .
7.Water and electricity separation,high security.

Main Technical Specifications:

 Testing software interface ( 3 stations)

 Electronic cabinets

Water tank

Grips

Compressor & USA SC pneumatic booster pumo & solenoid valve --Netherland GEVA

Specimen testing
