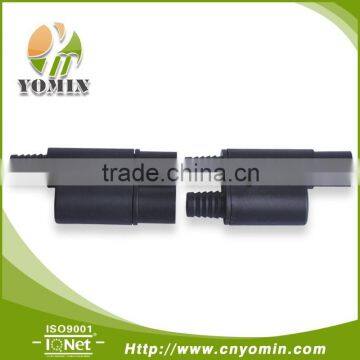

Manufacturer Solar Panel Connector , Good Quality Branch Connector BC 30 Plug / 1000V DC Connector
US$ 1 - 10
/ Piece
1 Piece(Min. Order)
- Ningbo or Shanghai
- T/T Credit Card
You May Like
-
Manufacturer BC 30 Socket Branch Connector , Solar Module Connector / Best Price PV Connector
-
Manufacturer Solar Connector , Cable Coupler CN30-CMMM-14 , MC3 Cable Coupler
-
Manufacturer CN40-PMMM-14 Panel Receptacle , MC4 MC3 Connector For Solar Panel /
-
Manufacturer Solar Connector , Cable Coupler CN30-CMMM-12 , PA Cable Coupler
-
Manufacturer PV Matching , Cable Coupler CN30-CMMM-10 , Solar Connector Coupler Terminal /
-
Manufacturer Solar Connector , Solar Cable MC3 Cable Coupler CN30-CFPM-14 , PA Cable Coupler
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Yomin | |
| Model Number | BC 30 Plug | Type | Other, Power |
Product Description
Manufacturer Solar Panel Connector , Good Quality Branch Connector BC 30 Plug/ 1000V DC Connector
Product Description
- Compatible MC3
- Simple on-site processing
- Quick,Parallel connection of PV Modules
- Mating safety provided bykeyed housings
- Multiple plugging and unplugging cycles
- High current carrying capacity
- TUV And CE approved
Technical parameters
| Rated Voltage | 1000V DC |
| Rated Current | 30A |
| Temperature Range | -40°C ~ +110°C |
| Degree of Protection | IP65/IP2* |
| Safe Class | Class II |
| Connector Material | Copper,Ag plated |
| Connector Resistance of plug connectors | 1mΩ |
| Insulation Material | PA |
| Insertion Force | ≤50N |
| Withdrawal Force | ≥50N |
| Flame Class | UL94-VO |
| Test Voltage | 6000V(50Hz,1min) |
| Overvoltage Category/Pollution Degree | CAT III/2 |
Dimension and wiring
