Product Details
| Place of Origin | Shandong, China | Brand Name | TENSON | |
| Model Number | XYJ-20B | Power | Electronic | |
| Usage | Strength Testing Machine |
Product Description

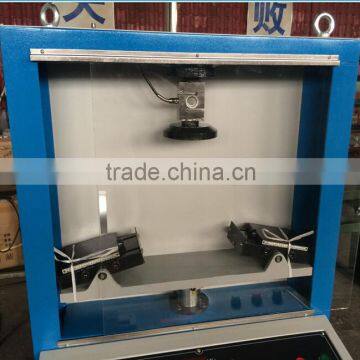

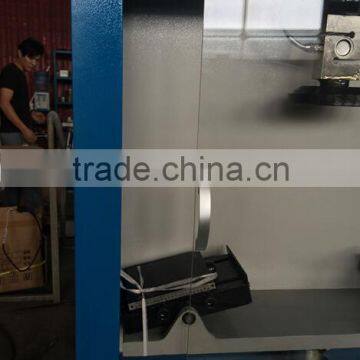

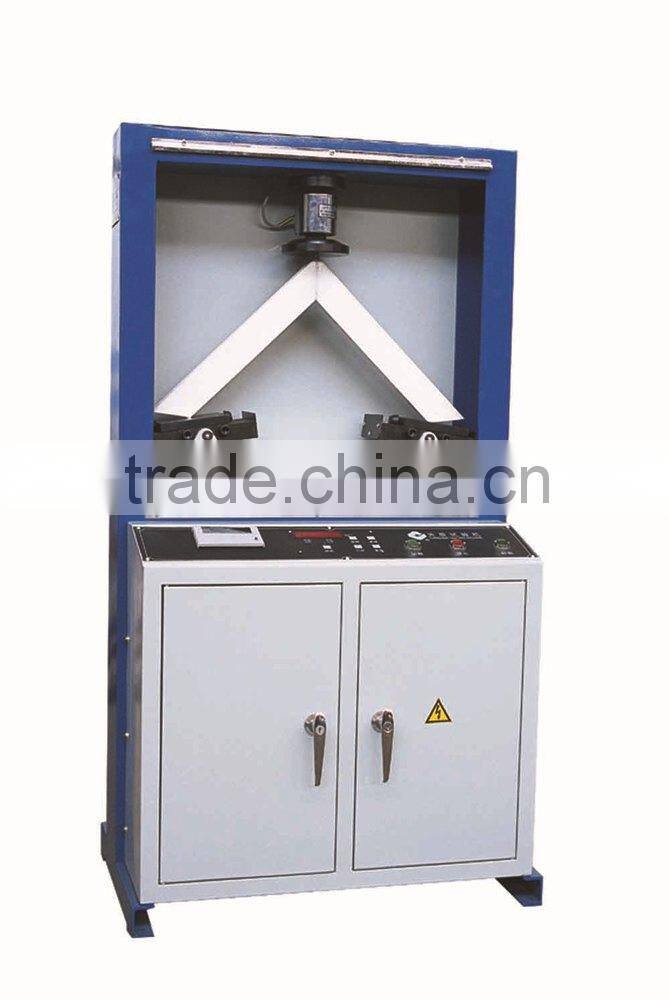

Famous TENSON Brand Angle Strength Test Equipment for Door & Window Profile Welding Test
Introduction
It is manily applied in the detection of PVC door and window profile welding testing
2.Product features
XYJ-20B Angle strength testing machine is conforming to GB/T, ISO/ASTM/JIN/BS EN /DIN Standard, " Up plasticized polyvinyl chloride( PVC-U) profiles for the doors and windows
1. This series adopts mechnical-electrical intergration structure, which is mainly composed of host machine and electric cabinet, the structure is reliable and operates easily

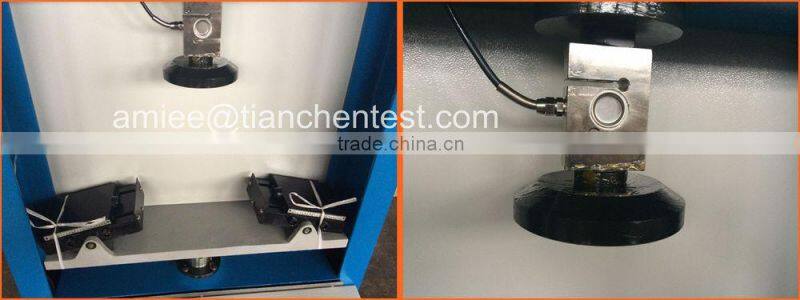

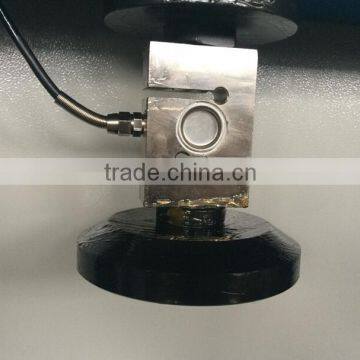

2. Single chip data acquistion system and high preicsion load sensor can realize electronic measurement, digital display, which assure the accuracy of test data and stable performances.
3. Auto- print and save records
4. XYJ-20B adopts the unique automatic pulley mechanism, it can avoid the friction force between the old speimen and cushion, it makes the test means more technical and accurate.

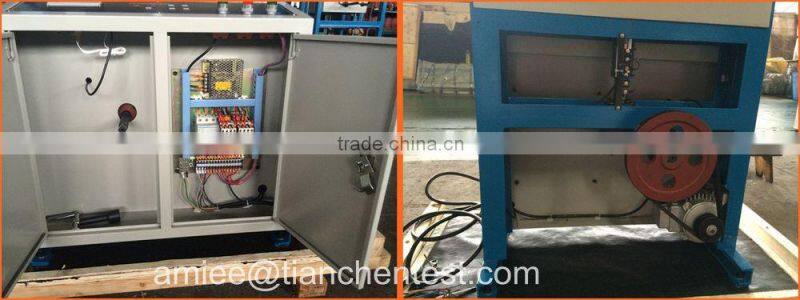

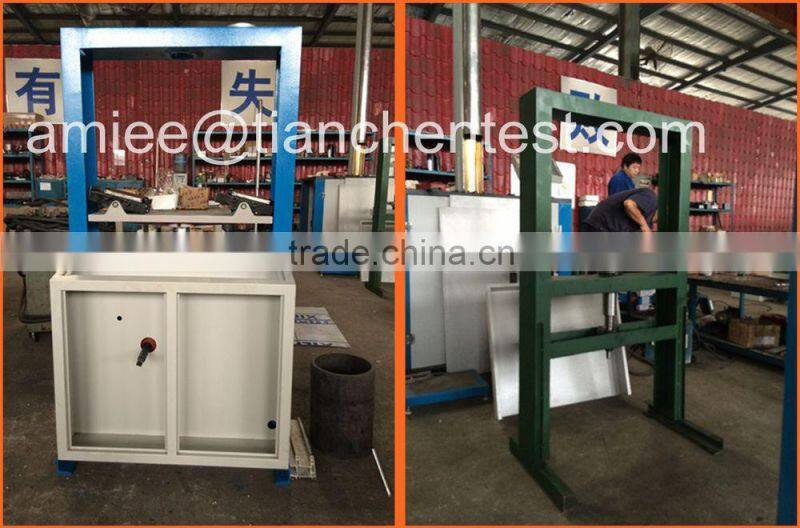

Reference parts photos

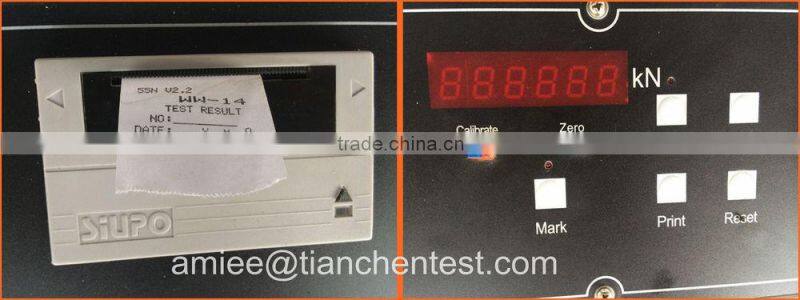

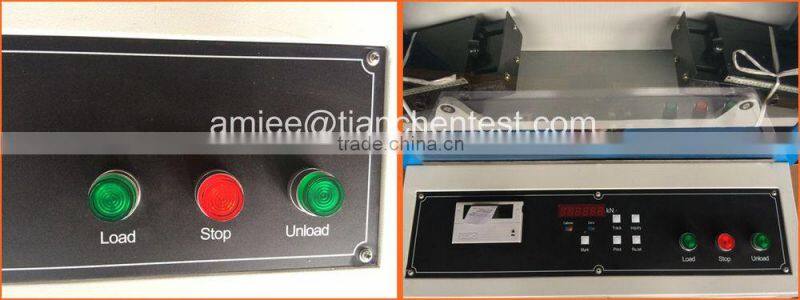

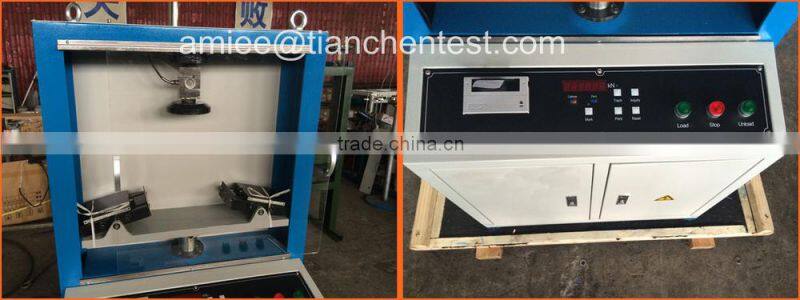

Control panel & micro printer

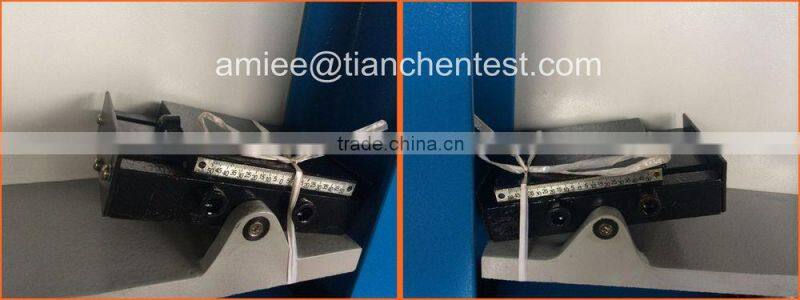

Pulley structure
Technicalparameters
Model | XYJ-20B |
Maximum testing force | 20kN |
Accuracy of testing force | ±1% |
Loading speed | 50±5 mm/min |
Power supply | AC 220V/ 380V±10%, 50Hz |
Overall dimension(L×W×H) | 950×460×1590mm |
Weight | 230kg |
1.Are you factory or trading company?
Established in 1998, Jinan Tianchen Testing Machine Manufacturing Co., Ltd is a high technology enterprise devoting on researching, manufacturing, sales and service of Material Testing Machines in Jinan city, China. The registered capital is 10 million RMB.
2.After an order is placed, when to deliver?
Generally about 2-3 weeks, If have in stocks, we can arrange shipment within 3 days.
Please note, different specification/model, needs different delivery time.
3.What about the warranty with after - sales services?
12 months warranty. Besides,we can help you to repair your problem controller freely,even it's not from our factory. What you need to do is to send us the controller. After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.Product use training, each of our product provide video training to show you how to install & operate. Main clients has Bureau Veritas and Intertek. our products are widely recognized and trusted by users. All the products meet with: ISO, ASTM,AATCC, BS, EN, DIN, JIS and other requireable standards.
