Door and Window Mechanical Properties Tester
- Qingdao or according to your need
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Door and Window Insulation Properties Test Machine
-
Door and Window Mechanical Property Tester with GB/T Standard
-
Insulating Glass Dew Point Tester
-
Angle Strength Testing Machine
-
Dropping Hammer Impact Testing Machine for Testing Plastic Profile
-
Thermal Resistance Tester for Testing Insulation Materials
Product Details
| Place of Origin | Shandong, China | Brand Name | TENSON | |
| Model Number | CWWS | Power | Electronic | |
| Usage | Other, Door and Window |
Product Description

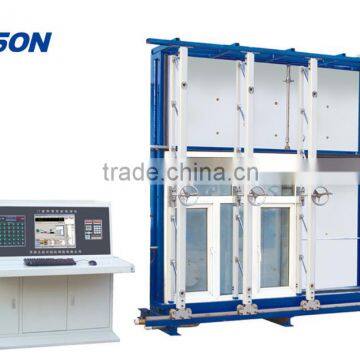

CWWS Series Door and Window Mechanical Properties Tester
Main functions
This series machines are applicable for the physical property test of building outer windows,such as window pressure resistance ability ,air tightness and water tightness. According to standard GB/T7106-2008.
Technical Parameters
Type | CWWS-2324 | CWWS-3030 | |
Span of flux | 0.1~635m³/h, accuracy ±3% | ||
Water tightness | Range of water flow supply | 100~1000L/h | 160~1600L/h |
Accuracy | 1.5 grade | ||
Range of tricking water | 2~3L/m².min | ||
Cycle of fluctuation | 3~5s | ||
Time per level fluctuations | 5min | ||
Wind resistance | Pressure regulating range | -6000Pa~+6000Pa | |
Accuracy of sensor | ±0.25% | ||
Measuring range of displacement and accuracy | 0~50mm,±0.1%FS | ||
Resolution of displacement | 0.01mm | ||
Control method | Microcomputer automatic | ||
Electric and power | 380V±10%,50HZ;12KW | ||
Dimension of control box | 1200×930×1260mm | ||
Dimension of host machine | 3000×1200×2900 mm | 3190×1400×3700 mm | |
Weight | About 1700kg | About2000kg | |
For more information, quotation, working videos, just feel free to contact us!
