Door and Window Insulation Properties Test Machine
- Qingdao or according to your need
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Door and Window Mechanical Property Tester With GB/T Standard
-
Insulating Glass Dew Point Tester
-
Angle Strength Testing Machine
-
Dropping Hammer Impact Testing Machine for Testing Plastic Profile
-
Thermal Resistance Tester for Testing Insulation Materials
-
CWWS-3030 Door and Window Mechanical Properties Tester
Product Details
| Place of Origin | Shandong, China | Brand Name | TENSON | |
| Model Number | CWWS | Power | Electronic | |
| Usage | Other, Door and Window |
Product Description

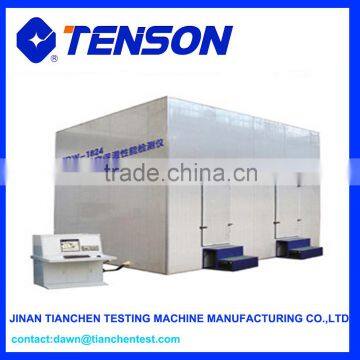

MBW Series Door and Window Insulation Properties Test Machine
Main functions
It is conforming to GB 8484-2002 Architecture, window insulation performance classification and detection methods. This machine is used to test for properties of outer door and window.
Product features
1. Automatic failure-free operation.
2. Real-time monitoring of temperature curve, transfer at any time, observation the changes of room temperature in hot and cold room.
3. Advanced quality temperature sensor can improve the precision of measurement; operating system is stable, reliable.
4. 145temperature measurement can mark the temperature sensors.
5. Store records of all the test process, print the original data.
Technical Parameters
Type | MBW-1824 | |
Range of temperature fluctuation in hot room | 19℃~21℃,±0.1℃ | |
Range of temperature fluctuation in cold room | -20℃± 0.3℃ | |
Range of temperature fluctuation in environment | 19℃~21℃,±0.5℃ | |
Condensation resistance factor test | Hot room, relative humidlity ≤20% | |
Temperature Measurement | Specimen hot side temperature sensor | Standard 20(independent coding, enlarge) |
Specimen cold side temperature sensor | Standard 10(independent coding, enlarge) | |
Temperature measuring resolution | 0.0625℃ | |
Total temperature measuring | 155points | |
Temperature control | Environment temperature setting range | 15~35℃, accuracy:≤0.5℃ |
Hot room temperature setting range | 15~35℃, accuracy:≤0.1℃ | |
Cold room temperature setting range | -10~-22℃, accuracy:≤0.3℃ | |
Max. Size of specimen | 1800×2400mm | |
Overall dimension | 5100×4000×4400mm | |
Power supply | 380V±10%,50HZ;15KW | |
For more information, quotation, working videos, just feel free to contact us!
