3000L stainless steel fermenter bucket
- QINGDAO PORT CHINA
- T/T Credit Card PayPal
You May Like
-
2000L micro beer fermenter with cooled jacket for beer fermenting and maturing
-
600L SUS304 beer conical fermenter
-
400L conical beer fermentors
-
200L-20000L Conical jacketed Beer FermentationTank for sale
-
10hl/20hl/25hl/30hl Microbrewery Beer Fermentation Plant
-
1000l beer fermentation system / small beer factory fermentation system
Product Details
Condition | New | Place of Origin | Shandong, China | |
Brand Name | Tiantai or OEM | Model Number | 3000L | |
Processing Types | Alcohol | Voltage | 3phase/380(220,400,415,440)v/50 (60)Hz | |
Power(W) | 15-70Kw depends on size | Dimension(L*W*H) | Various in different models | |
Weight | Various in different models | Certification | CE ISO | |
Warranty | 3 years from commissioning | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
3000L stainless steel fermenter bucket
Stainless steel fermenter bucket is also called CCT’s (Cylindrical Conical Tanks), FV’s (Fermentation Vessel),
primary fermentor or unitanks as they are used both for fermenting and lagering.Fermenting is the process
during which the yeast transforms the wort into beer. Lagerings takes place after fermenting and is the
time given to the beer to stabilize and age after fermenting.
TBE stainless steel fermenters can be individually temperature controlled through glycol jackets and
are mostly equipped with accessories such as overpressure and under pressure valve, CIP cleaning jet,
sanitary sample valve, manhole,etc.The design of TBE fermenters is based on our vast beer knowledge
and especially the conical fermenter bottom and the fact that we combine fermentation and maturation
in the same vessel is very important. When calculating your fermenting and lagering capacity and
configuration sufficient time for fermenting and lagering to produce quality beers must be taken into
consideration.
3000L stainless steel fermenter bucket | |
Function | Wort Fermentation or maturation |
Tank Capacity | 3000L (+25% Headspace minimum) |
Interior Shell | SUS304 full welded; TH=3mm |
Exterior Shell | SUS304 full welded; TH=2mm |
Insulation | Polyurethane; TH=80mm |
Glycol Jacket | Dimpled plate on cone and side |
Head and Bottom | Dished head and 60 degree cone bottom |
Sampling valve | Full sanitary perlick style sampling valve |

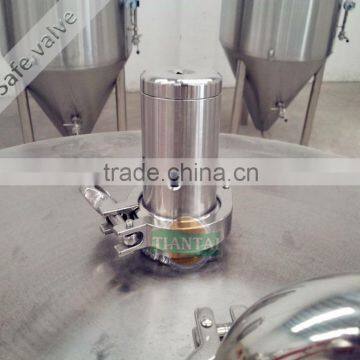

Safe valve | Mechanical relief valve 2 bar on CIP arm |
Pressure gauge | Shockproof pressure gauge with two gauges on CIP arm |

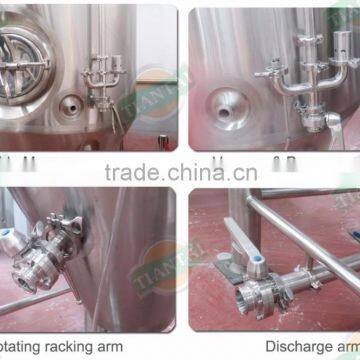

Beer outlet | Rotating racking arm and port on cone with butterfly valve |
Hopping port | Dry hopping port with solid end cap |
Leg | 4pcs completely SUS304 heavy duty legs with leveling pad and legs support |
The fermenter which has only 1 CIP arm can't blow off the additional air totally, because there is a CIP ball.
2.Lever butterfly valve, it has more interval adjustment than handle ball butterfly valve.
3.Double tri-clamp CIP ball:The CIP ball equips two clamps, so the brewer does not need to enter the tank inside for taking apart CIP ball. It can be take apart from outside easily and conveniently.
5.Perlick style Sample valve: The sample valve is Perlick style. There is no thread inside, so it is not easy to remain bad bacteria.
6.The pressure gauge: we choose the shockproof kind pressure gauge which is good quality and read exactly.
7.Legs: The leg is full stainless steel.

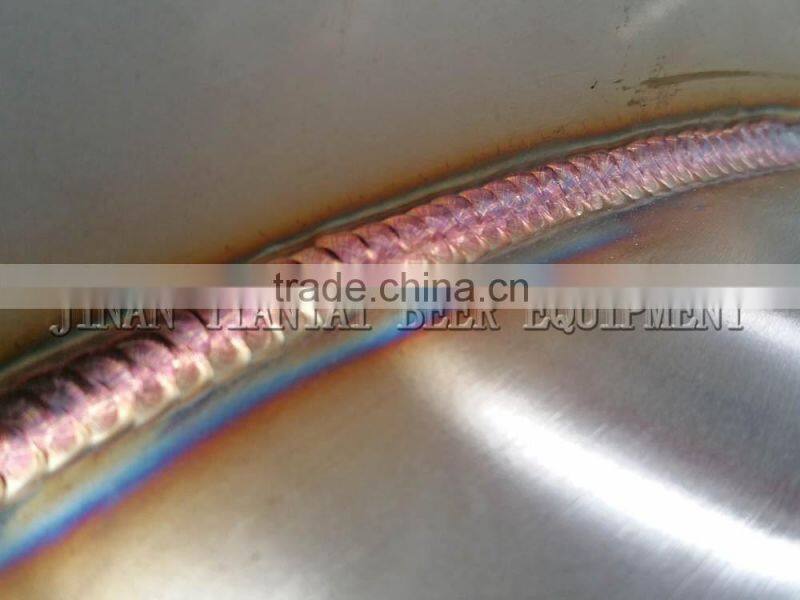

1.We abandoned the argon gas cylinder but adopt The Central System of Argon to make sure the TIG welding with pure argon gas shield. We also increase the using amount of gas when welding, so the quality of the welding line is more higher.

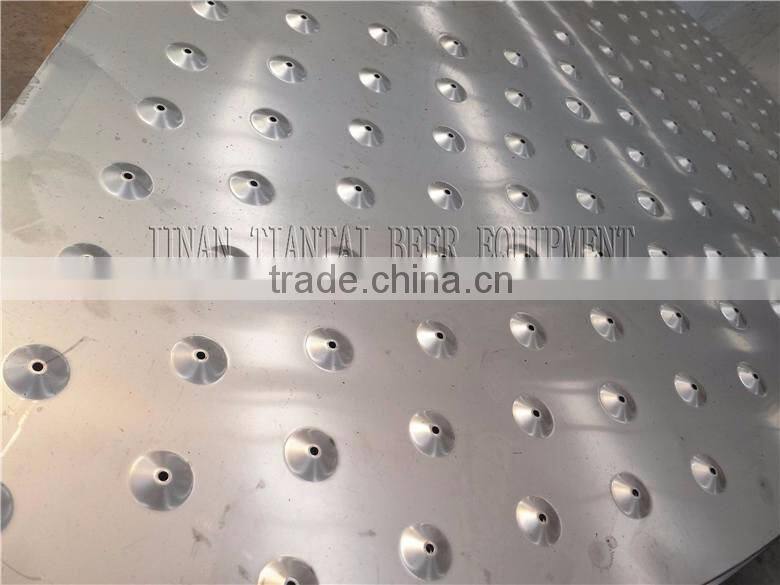

2.We adopt dimple plate rather than belt for glycol jacket, since it can increase the cooling area and improve the speed of cooling.

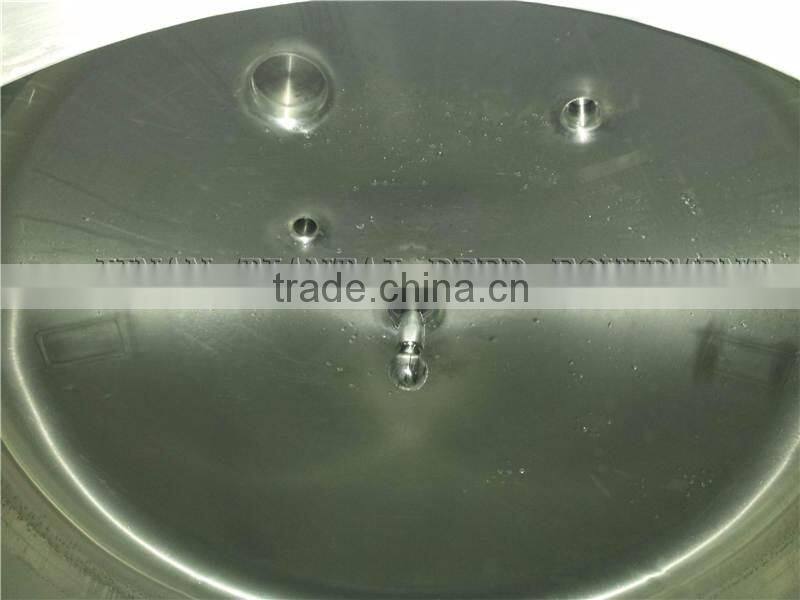

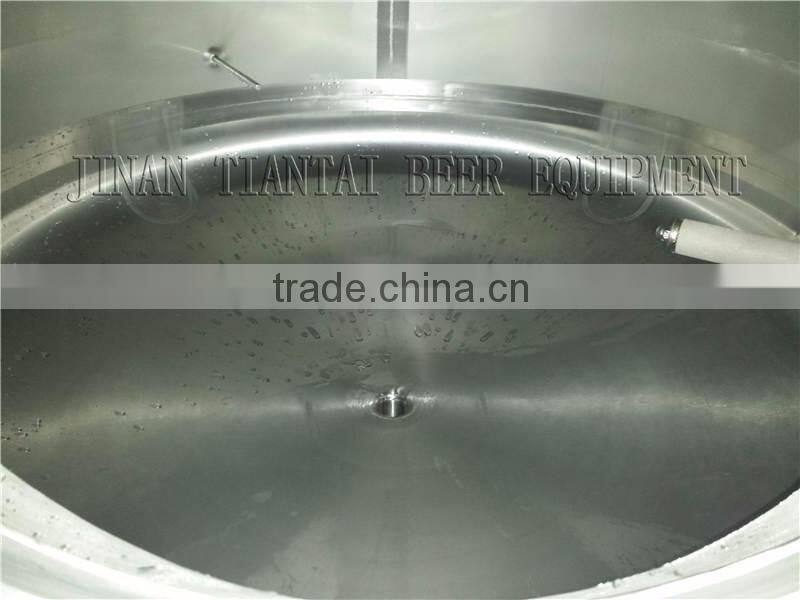

3.Recently, we introduce acid washing passivation technology. The processes are listed as follows.
A. Inner tanks are finished
B. Filing the tanks with water to accelerate radiating and reduce carbonization .
C. The dimple jacket is welded.
D.Close or seal all the hole, sparging the acid to inner tank, and react 48h(Summer) or 36h(Winter)
E.Open all the hole after acid reacting, tanks are cleaned by alkalescent water first and then cleaned by high pressure water.

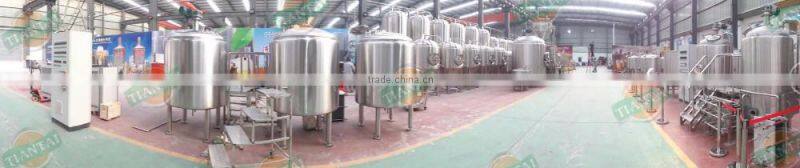

Jinan tiantai beer equipment Co.,Ltd is a professional beer fermenter equipment manufacturers .We are
specialized in professional design,manufacture,installation and commissioning of various beer
craft brewery and supporting facilities. Which includes miller, brewhouse, fermenter, bright beer tank,
glycol water tank, chiller, control panel, CIP etc for small and micro beer plant, brewpub,hotel,bar and etc.
Tiantai’s product variety, complete in specifications.At the same time, we have a deep foundation
of cooperating with many of domestic and foreign companies and research institutions,
which help us to cultivate and to attract a number of outstanding technical engineers,
production workers,and to laid a solid foundation for the development of enterprises.
Friends, if you are also interested in 2000L turnkey beer fermenting system, please click the following link.
2000L brewpub equipment
