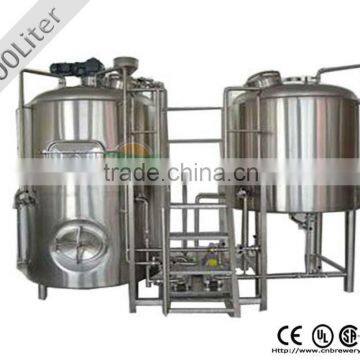

Stainless Steel 7 Barrel Brewhouse
- Qingdao
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | Tiantai | Model Number | TT-600L | |
| Processing Types | Carbonated Beverage | Voltage | 3phase/380v/50Hz or customized | |
| Power(W) | 40Kw depends on capacity | Dimension(L*W*H) | 50-100M2 depends on capacity | |
| Weight | Various in different models | Certification | CE ISO UL | |
| Warranty | 36 months from commissionin | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
7 barrel brewhouse
Various combination of brewhouse
Brewhouse is various in combination of vessels, of course to achieve the same four steps mashing,
lautering, boiling, whirlpool, by special brewing intentions of brewer including wort output, wort gravity,
sparging water, brews in certain time, brewing method etc. Tiantai Company accepts special
design for these variations.
Components of 7 barrel brewhouse
| 7BBL mash/lauter tun | With steam jacket, rake, false bottom, sight glass |
| 7BBL kettle/whirlpool tun | With steam jacket |
| 7BBL hot water tank | With steam jacket |
| Plate heat exchanger | 8m2, SUS304, two stages/single stage |
| Work platform | |
| Wort pump | 3t/hr, 0.75KW |
| Hot water pump | 3t/hr, 0.75KW |
| Wort earation device | |
| Brewhouse control panel | PID, temperature display and control |
| Fittings | Butterfly valves, hard piping, vent, steam condensor, wort hose |
Brewhouse Series | Volume in US Gallon | Diameter | Height |
1HL Brewhouse | 26 US Gallon | 620mm | 1800mm |
2HL Brewhouse | 53 US Gallon | 760mm | 2100mm |
3HL Brewhouse | 79 US Gallon | 860mm | 2100mm |
5HL Brewhouse | 132 US Gallon | 1060mm | 2250mm |
7 barrel brewhouse |
| 1060mm | 2500mm |
20HL Brewhouse | 528 US Gallon | 1760mm | 2600mm |
30HL Brewhouse | 793 US Gallon | 1760mm | 3400mm |
50HL Brewhouse | 1321 US Gallon | 2200mm | 3800mm |
Every Weld Blended and Finished to a Smooth Sanitary Finish
Stainless steel brewing platform & integrated stairs with adjustable foot pads
Stainless steel condensation stack.
Sanitary centrifugal pump for mash, wort or hot water transfer
Various speed agitator and rake for efficient lautering and spend grain removing
High Efficiency multi-pass plate type heat exchanger with thermometer and aeration device
Control panel in stainless steel with digital control and readout to programmable optimized water temperature
V-Wire False Floor Included in Mash/Lauter Tun – virtually guarantees consistent wort flow
Compact- Space Saving and flexible Brewing Configurations
Available in Steam or Direct Fired
Standard Thermometers and Thermawell Adapters
Other brewhouse combination
1.) Two Vessel brewhouse: Mash/lauter combination; Boiling/whirlpool combination; 2.) Heating method suitable: Steam with steam boiler or Electric coil 3.) Capacity suitable: 100L-500L 4.) Mashing method suitable: Infusion 5.) Can not sparge 6.) One brew per day | |
1.) Three Vessel brewhouse a.Mash tun, lauter tun, boiling/whirpool tun; b.Hot water tun, Mash/Lauter tun, Boiling/whirlpool tun. 2.) Heating method suitable: Steam with steam boiler. 3.) Capacity suitable:above 500L. 4.) Mashing method suitable: both Infusion and decoction. 5.) 2 brews per day | |
1.) Four Vessel brewhouse Mash tun, lauter tun, boiling tun, whirpool tun; 2.) Heating method suitable: Steam with steam boiler. 3.) Capacity suitable:above 3000L. 4.) Mashing method suitable: both Infusion and decoction. 5.) 3 brews per day | |
1.) Two-body three-vessel brewhouse a. Lauter tun/Whirlpool tun, Mash/Boiling tun; b. Lauter/Hot water tun, Mash/Boiling tun. 2.) Heating method suitable: Steam with steam boiler or electric 3.) Mashing method suitable: Infusion only 5.) 1-2 brews per day |
Free consultation service before, during, and after sales;
Project planning and design services;
Free debugging instruction of equipment until everything is functional;
Management of equipments' long distance shipping from seller's factory to named port or station by buyer;
Training of equipment maintenance and operating personally;
New production techniques;
Provide 36 months complete warrantee for tanks body and life-time maintenance service;
Welcome inquiry to learn our latest news about the
7 barrel brewhouse!
