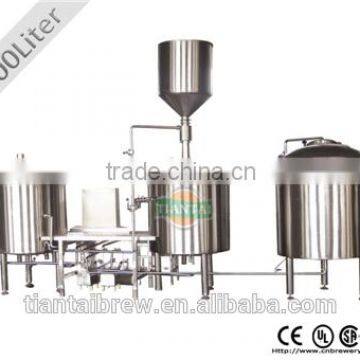

Stainless Two Vessel 5 Bbl Brewhouse

Craft beer stainless steel 5 bbl brewhouse

5 BBL brewhouse is various combinations of vessels, of course to achieve the same four steps mashing,

lautering,boiling, whirlpool, by special brewing intentions of brewer including wort output, wort gravity,

sparging water,brews in certain time, brewing method etc.Tiantai Company accepts special design for

these variations.

The 5bbl brewhouse can be single function or can also have a false bottom and spigot so that the

sparging process can be done in the same vessel. Steam jacket design will allow The Tiantai systems are

designed to do both decoction mashing and infusion mashing. The mash tun brew kettle is made out of

stainless steel or copper.

There are two different types of the 5 bbl brewhouse, Two vessel or Two body three vessel as below:

-Every Weld Blended and Finished to a Smooth Sanitary Finish

-Stainless steel brewing platform & integrated stairs or ladder with adjustable foot pads for platform leveling

-Stainless steel hard piping and brewhouse manifold with butterfly valves, Sight glass and all required clamps

  and gaskets to hook tanks together

-Stainless steel steam condensation stack.

-Sanitary centrifugal pump for mash, wort or hot water transfer

-Fixed speed or various speed agitator and rake for efficient lautering and spend grain removing

-High Efficiency multi-pass plate type heat exchanger with thermometer and oxygenate aeration

  stone port (stone not included)

-Control panel in stainless steel with digital control and readout to programmable optimized water temperature

-V-Wire False Floor Included in Mash/Lauter Tun – virtually guarantees consistent wort flow

-Compact- Space Saving and flexible Brewing Configurations

-Available in Steam or Direct Fired

-Standard Thermometers and Thermawell Adapters

• you can enjoy our free consultation service any time
• you can let us help you plan and design your brewery project if you don't know how to do it quite well
• you will be free of charge for our debugging the brewery equipment to get it work perfectly
• you can decide that which port the goods will arrive at
• you will be trained how to maintain and operate the brew system personally if you are not good at it
• you will learn some new beer production techniques from our professional brewer
• you will have our words:
• Provide 36 months complete warrant for main parts and life-time maintenance service;
• The seller is responsible for the nature damage of the machinery in the
• warranty period except for man-made damage.
• All spare parts and wearing parts are attached with the machinery for free;

2.Dimpling: We adopt dimple plate rather than belt for glycol jacket, since it can increase the cooling area

and improve the speed of cooling. The most important thing in brewing process is to avoid contaminating,

that is to say the most important thing in producing beer equipment is to polish the inside tanks to 0.4~0.6

μm without dead corner.

3.Polishing: We use large-scale polishing equipment to polish the inside of the tanks -- all over the wall to

make sure there is no dead corner. You need not worry about there will be some bacterias remained after

cleaning.Some other manufacturers may not pay enough attention to the polishing, even some have no

polishing machine.

Some other products you may interest as below, please click the links:

1000L micro brewery equipment for sale

2000L beer brewing system with CE UL

Welcome to send us inquiry for detailed cost of the 5 bbl brewhouse!
