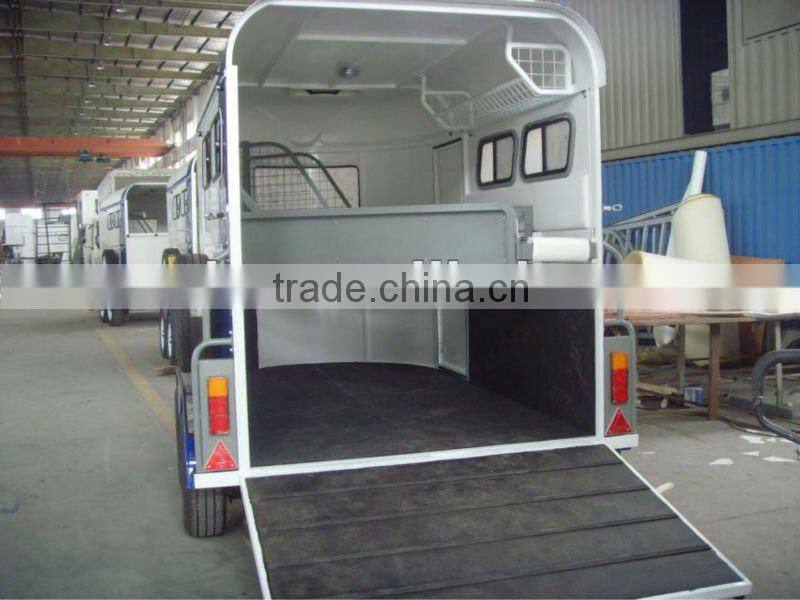

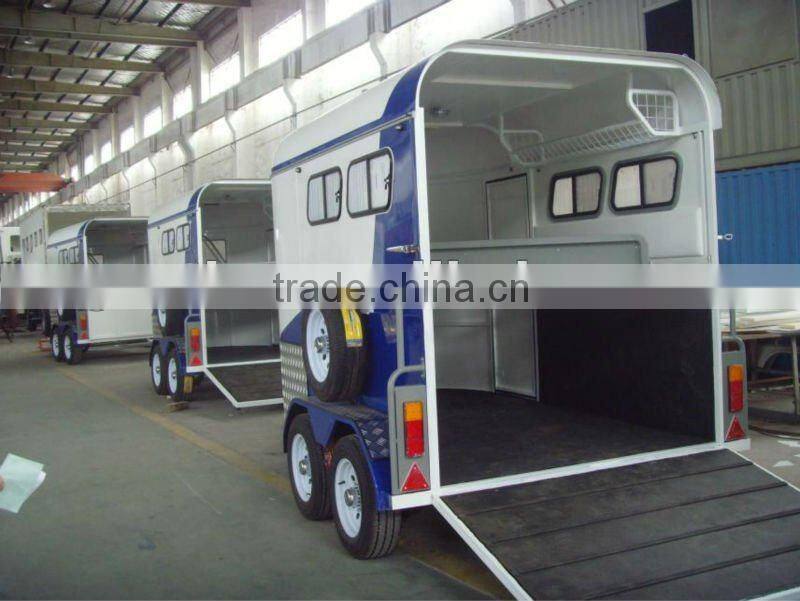

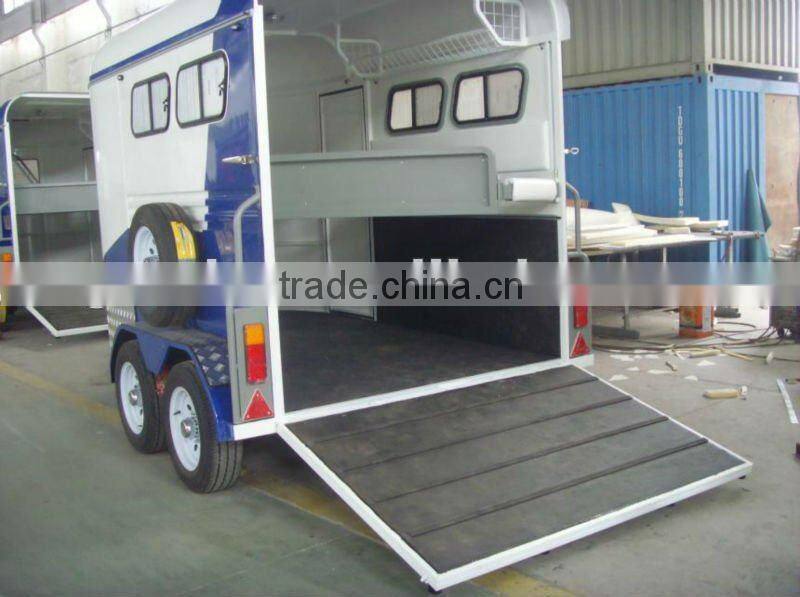

Horse Trailer 2 Horse Angle Load With Pop Up Door

FOB Price

US$ 1 - 10 / Piece

3 Pieces(Min. Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

OEM No.	2HAL	Max Payload	1000KGS
Size	2horse	Place of Origin	Shanghai, China
Brand Name	GW	Model Number	GW-2HAL

Product Description

Specifications

Horse Trailer 2 Horse Angle Load With Pop Up Door
Pop up door
Side luggage shelf
Moulded one pc new rubber matting

Horse Trailer 2 Horse Angle Load With Pop Up Door

Over Dimension	(LxWxH:mm):4795x2290x2662
External Dimension	(LxWxH:mm):3400x1830x2190
Inner Dimension	(LxWxH:mm):3320x1780x2120
Horse bay	(LxW:mm):2050x700
Trailer Weight	1240KGS
Max Payload	1000 KGS
Body frame	Galvanised body frame and hot dipped galvanised chassis, galvanised sheet panels
Roof	3-4mm thickness fiberglass
Side wall	6mm thickness rubber matting
Floor	18mm thickness rubber matting,rear ramp door with moulded one pc new rubber matting
Chain	Safety chain D-ring, welded chain
Coupler	Φ=50mm load 3500kgs
Brake	Electric drum brake in one axle with hand brake system
Brake	Break away switch with 12V battery
Suspension	6 leaf spring
Axle	2pcs, 840mm length
Axle distance	840mm
Light	LED light, rear lights 2pcs, internal Roof light 1pc
Light	Outer view width lights 2pcs, licence board light 1pc
Plug	7 pin plug round or flat
Wheels & Tires	5pcs 195/70R 15C, 14X5J, including a spare tire
Spare wheel Bracket	1pc
Alu decoration	1.5mm Alu decoration on front and on wheel
Button bar	Galvanised and powder coated button bar with soft pads, its tube 40x40x2mm
Hook	Galvanised hook for tighting the horse (inside 2pcs, outside 2pcs)
Vent	Roof vent with five opening ways
Front window	Mould alu alloy front window (950x500mm)
Side window	Mould alu alloy side window 4pcs (300x600mm)
Rear ramp door	Rear ramp door with spring support:1600x1220mm
Side door	1650x600mm
Option	Pop up door
	Barn door
	Break away switch with 12v battery
	Luggage shelf
	Front tack box
	Swing out tool box
	Alloy wheel
	Folded Awning
	Gas strut for rear door
	Extension size available
