Custom 2Horse Float With Shower Room

FOB Price

US$ 1 - 10 / Piece

2 Pieces(Min. Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

OEM No.	2HAL-Kitchen&Shower	Max Payload	1000KGS
Size	2horse	Place of Origin	Shanghai, China
Brand Name	GW	Model Number	GW-2HAL-EX

Product Description

Specifications

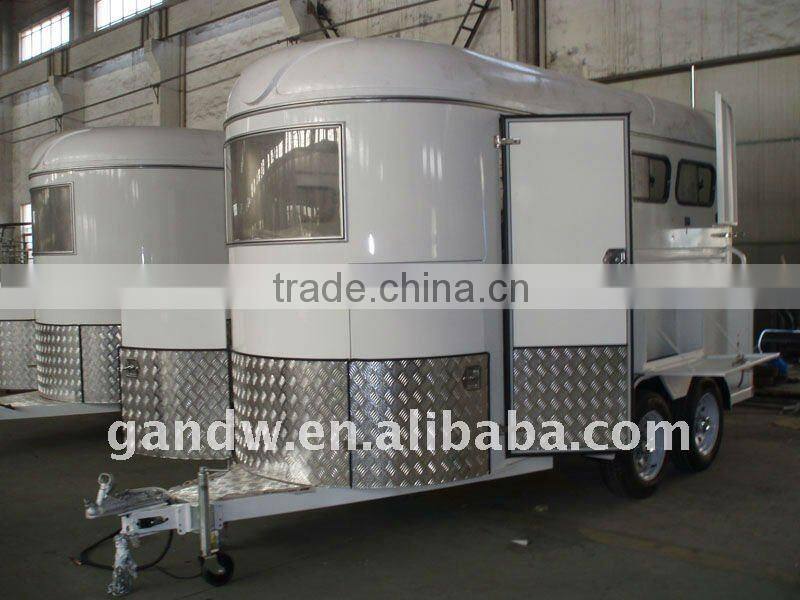

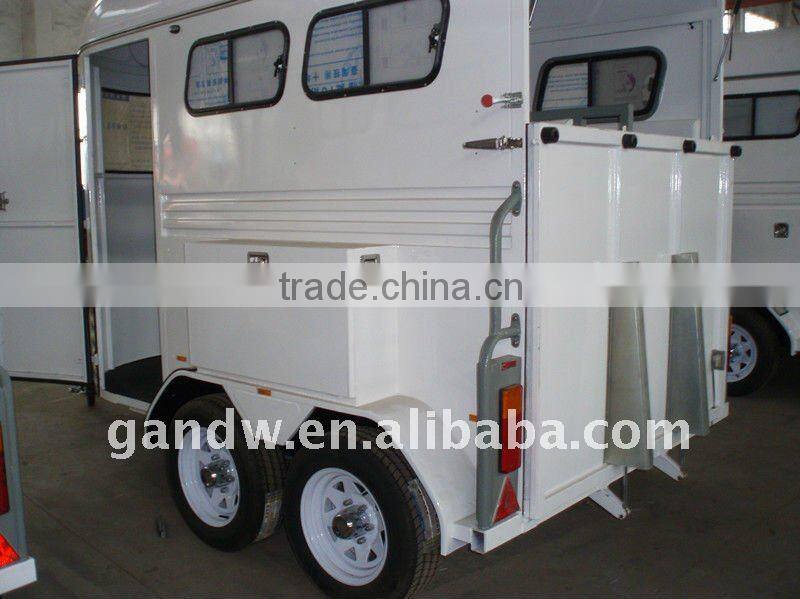

Custom 2 horse trailer 2horse float with shower room/kitchen
2 horse straight load
Pop up door

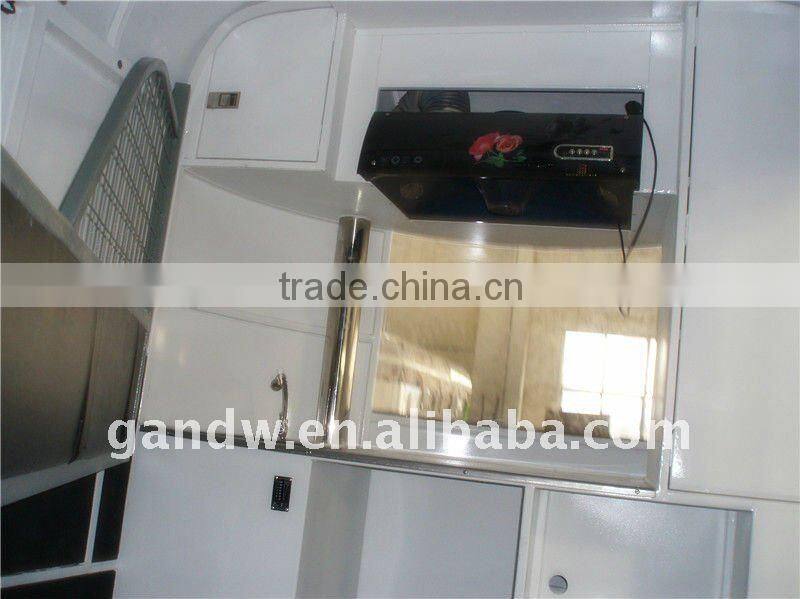

2Horse Float With Shower Room& Kitchen

Over Dimension	(LxWxH:mm):5415x2290x2698mm
External Dimension	(LxWxH:mm):4150x1830x2314mm
Inner Dimension	(LxWxH:mm):4075x1780x2156mm
Horse bay	(LxW:mm):1800x715mm
Trailer Weight	1090 KGS
Max Payload	1000 KGS
Body frame	Hot dipped galvanised chassis, galvanised body frames and galvanised sheet panels
Roof	3-4mm thickness fiberglass
Side wall	6mm thickness rubber matting +plywood
Floor	Rubber matting 9mm+18mm thickness hard heavy duty plywood
Chain	Safety chain D-ring, welded chain
Coupler	Φ=50mm load 3500kg
Brake	Electric drum brake in one axle with hand brake system
Brake	Break away switch with 12v battery
Suspension	5 leaf spring
Axle	2pcs
Axle distance	840mm
Light	LED light, rear lights 2pcs, internal roof light 1pc
Light	Outer view width light 2pcs, licence board light 1pc
Plug	7 pin plug round or flat
Wheels & Tires	5pcs 185R14C, 14X5J, including a spare tire
Spare wheel Bracket	1pc
Alu decoration	1.5mm Alu checker plate decoration on front and on wheel
Breast bar	Galvanised and powder coated breast bar with soft PVC pads, its tube 80x30x2mm
Button bar	Galvanised and powder coated button bar with soft PVC pads, its tube 80x40x2mm
Tie ring	Galvanised hook for tighting the horse (inside 2pcs, outside 2pcs)
Vent	Roof vent with five opening ways
Front window	Mould alu alloy front window (950x500mm)
Side window	Mould alu alloy side window 4pcs (300x600mm)
Rear ramp door	Rear ramp door with spring support: 1600x1220mm
Side door	1650x600mm
Option	Pop up door
	Barn door with hinge
	Break away switch with12V battery
	Front rug rack
	Front tack box
	Alloy wheel
	Folded awning
	Gas strut for rear door
	Extension size available
