Product Details

Place of Origin	Shanghai, China		Brand Name	GW
Model Number	GW-2HAL		Type	Other, Horse cart

Product Description

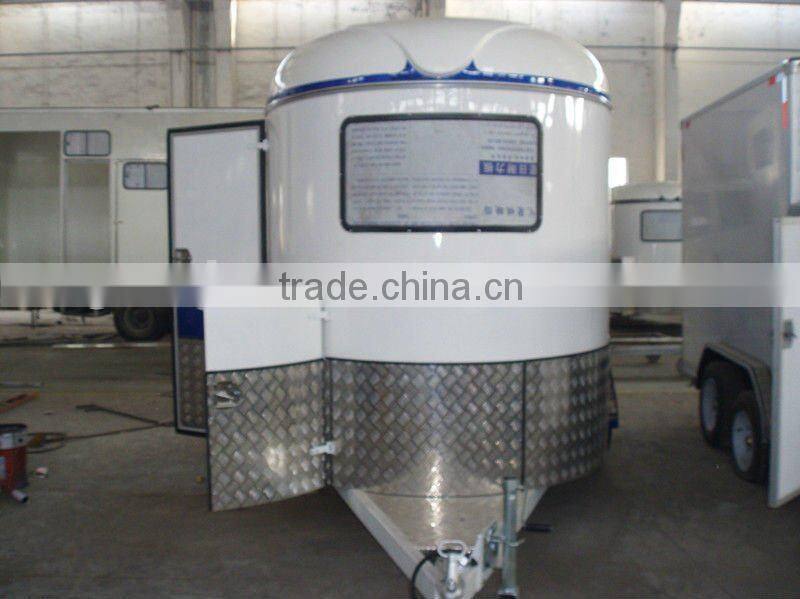

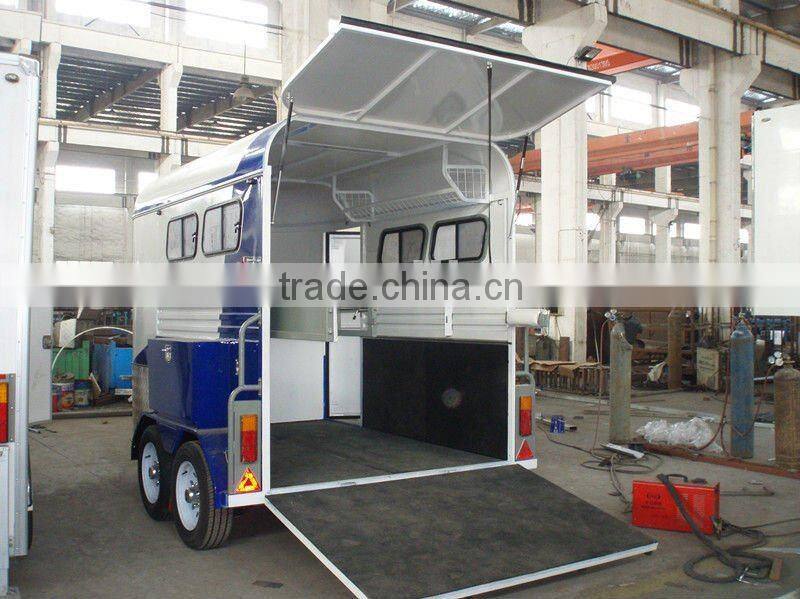

2Horse float Horse carts

Over Dimension	(LxWxH:mm):4795x2290x2662
External Dimension	(LxWxH:mm):3400x1830x2190
Inner Dimension	(LxWxH:mm):3320x1780x2120
Horse bay	(LxW:mm):2060x660
Trailer Weight	1240KGS
Max Payload	1000 KGS
Body frame	Hot dipped galvanised frame and chassis, galvanised sheet panels
Roof	3-4mm thickness fiberglass
Side wall	6mm thickness rubber matting
Floor	18mm thickness hard heavy duty plywood +9mm rubber matting
Chain	Safety chain D-ring, welded chain
Coupler	Φ=50mm load 3500kgs
Brake	Electric drum brake in one axle with hand brake system
Brake	Break away switch with 12V battery
Suspension	6 leaf spring
Axle	2pcs, 840mm length
Axle distance	840mm
Light	LED light, rear lights 2pcs, internal Roof light 1pc
Light	Outer view width lights 2pcs, licence board light 1pc
Plug	7 pin plug round or flat
Wheels & Tires	5pcs 195/70R 15C, 14X5J, including a spare tire
Spare wheel Bracket	1pc
Alu decoration	1.5mm Alu decoration on front and on wheel
Button bar	Galvanised and powder coated button bar with soft PVC pads, its tube 40x40x2mm
Hook	Galvanised hook for tighting the horse (inside 2pcs, outside 2pcs)
Vent	Roof vent with five opening ways
Front window	Mould al alloy front window (950x500mm)
Side window	Mould al alloy side window 4pcs (300x600mm)
Rear ramp door	Rear ramp door with spring support:1600x1220mm
Side door	1650x600mm
Option	Pop up door
	Barn door
	Break away switch with 12v battery

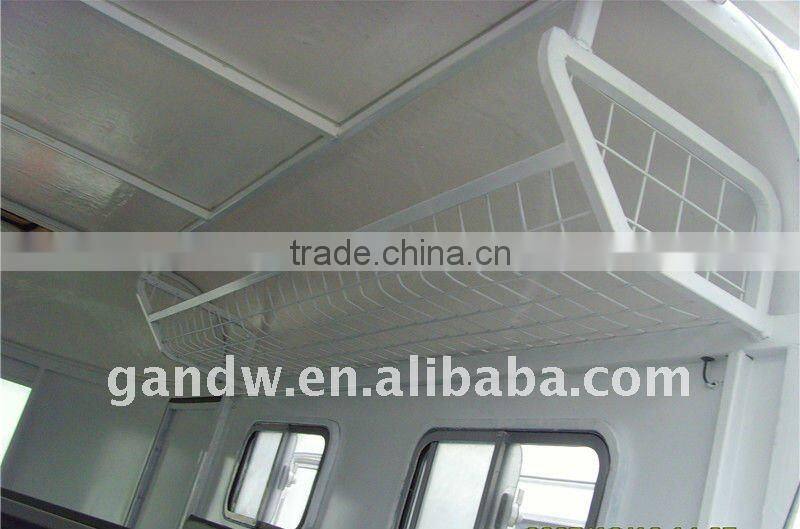

	Luggage shelf
	Front tack box
	Swing out tool box
	Alloy wheel
	Folded Awning
	Gas strut for rear door
	Extension size available
