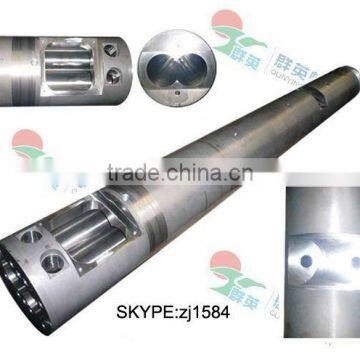

Weber Bimetallic Twin Parallel Screw barrel(Cylinder)

Bimetallic twin extrusion parallel screw and barrel.

Processes:

Technical Parameters:

Screw

1. Nitride Depth: 0.55-0.7mm

2. Nitride Hardness: 850-960HV

3. Surface Roughness: Ra≤0.8um

4. Screw Straightness: 0.015mm

5. Bimetallic Hardness: HRC50-62

6. Bimetallic Depth: 1.5-2.0mm

Barrel

1. Nitride Depth: 0.55-0.7mm

2. Nitride Hardness: 960-1020HV

3. Surface Roughness: Ra≤1.6um

4. Bimetallic Hardness: HRC50-65

5. Bimetallic Depth: 1.5-2.0mm

For good plasticizing effect, we have different design of screw barrel to meet customer's demand: gradual type, mutant type, wave type, barrier type, double screen type, shunt type, separation type, exhaust type, pin type, double-head type, multi head type etc.It is suit for PA.PP.PC.PE.ABS.AS.PS.PVC.PMMA.LCP.PBT.PET.PPC.PPS.PAR.PO.Magnetic powder, ceramic powder, aluminum powder, iron powder, wood flour and other engineering plastics, PVC, PE/PP WPC pelleting.

We can make any specification of extruder screw barrel and injection screw barrel for Cincinnati, KRAUSS-MAFFEI, Battenfeld, Haitian, Demag, Engle, Nigro bossi, arburg, NPM, BOY, Husky, Fanuc, Billion, Sumitomo, Nippon Steel, Toshiba, Nissei, Mitsubishi and etc. We also can supply all types of screw and barrel according to your different requirements.

More details, contact US !!
