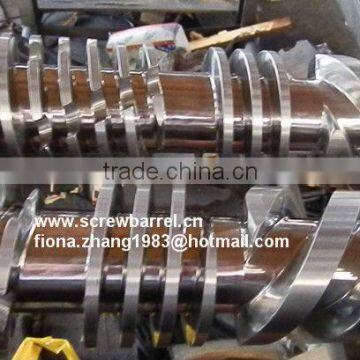

screw barrel parallel 9Cr18MoV double twin 38CrMoALA(JIS SACM645)bimetallic twin screw and barrel
- 1000 Set / Sets per Month
- Ningbo
- T/T
You May Like
-
screw barrel parallel double twin barrel 38CrMoALA(JIS SACM645) bimetallic twin screw and barrel
-
double twin screws and barrels bimetallic plastic extrusion injection
-
CHINA alloy bimetallic double twin screws and barrels plastic extrusion injection
-
china conical twin screws and barrels bimetallic
-
Single screw in screws in vent with barrel for hdpe recycled material
-
Bimetallic double twin screw in screws and barrels plastic extrusion injection
Product Details
Place of Origin | Zhejiang, China | Brand Name | QY screw barrel | |
Model Number | 55/110 |
Product Description
Parallel twin screw barrel/Conical twin screw barrel/twin screw barrel for recycled plastic material/recycled plastic screws
Specification:
45/90, 45/100, 50/105, 51/105, 55/110, 55/120, 58/124, 60/125, 65/120, 65/132, 68/143, 70/135, 70/140, 75/150, 80/143, 80/156, 92/188
Screw diameter:Φ15mm-Φ360mm L/D=15-56
Length of screw and barrel/cylinder:8000mm
According to different material and plastic products to design different screw structure ,compress rate and L/D!
According to different material and plastic products to design different Barrel with exhaust system and IKV force load system!
As per customers’ demand,we can supply below:
PVC/PE Film Blowing Screw; Blow Molding Screw; PS/PE/PP/ABS Sheet Extrusion Screw; PE Aluminum Plate;PPR Pipe Screw;EVA Extrusion Screw;HDPE High efficiency Screw;PET Straps Screw;XPS/EPE Foamed Screw;Granulation Screw,Vented single screw etc!
Technical Parameter | |
Base Material | 1)38CrMoAlA(JIS SACM645);2)Cr12MOV(JIS SKD-11) ; 3)4Cr5MoSiV1(JIS SKD-61) ;4)42CrMo(AISI 4140) |
Bimetallic Alloy Materials | 1)Fe-based alloy 2)Ni-based alloy/Deloro alloy 3)Co-based alloy 4)NiCo-based alloy 5)Tungsten carbide/Wolfram carbide |
Double-alloy level | Level A - containing Tungsten of 40% Level B - containing tungsten of 25% Level C - containing tungsten of 15% |
Surface Treatment | Heat Treatment High Frequency Treatment Nitriding treatment(120 Hours): Depth of Nitrided Layer: 0.5-0.8 mm Hardness of Nitrided Layer: 900-1020Hv (HRC56°-65°) Hard Chrome Plating treatment: Thickness of Hard Chrome Plating Layer: 0.05-0.10mm Hardness of Hard Chrome Plating Layer: ≥950HV Nickel alloy plating.treatment: Bimetallic Barrel/Cylinder: Centrifugal Casting (Inlay Alloy) Bimetallic Screw: Plasma Alloy Coating Spraying Depth of Bimetallic Layer: >2mm Hardness of Bimetallic Layer: HRC55°-72° Spraying corrosion wear-resisting dual metal layers |
Basic information | Roughness of the surface:Ra0.4um Linearity of the screw: ≤0.015mm Linear axis limit: ≤0.02mm Hardness after Hardening & Tempering: HB240-280 Fragility of Nitration:≤Two class |
Material Application | 1)General Plastics 2)ABS,PA,PC,PE,PET,PP,PS,EVA,PU,PVC,U-PVC,etc 3)PA + GF(Glass Fiber) 4)Flame-resistant Reinforced Plastics 5)Modified Engineering Plastics 6)All kinds of Mixed Recycled Material(in Scrap or Granule), PVC + 30% CaCo3, etc |
Quality Certificate:
•100%Quanlity Inspection
As the screw and barrel are the important parts for plastic extruders and injection molding machine,they affect the machine performance and quality directly,therefore,QunYing established quality control system strictly as ISO 9001:2008 International Quality System, our every production process is under strict inspection , Those provides solid foundation for our quality products!What we need to do is to make sure best quality of each screw and barrel.Till now,our screw and barrel has been sold to more than 40 countries in the world and enjoy a good reputation by our customers!
Products sales network:
About us
QunYing Screw is leading supplier of SCREW and BARREL in china,including designing,manufacturing and sales for these products,we can make any specification of extruder screw barrel and injection molding screw barrel for Haitian,Demag,Engle,Nigrobossi,KMD,NPM,BOY,HUSKY, Nippon Steel, Toshiba, Nissei, Mitsubishi and etc. We also can supply all types of screw and barrel according to your different requirements.
What is our advantage:
First:Cretive in designs,our desinging team is very strong,since we have unique culture to motivate them,in order to meet requirement,we work closely to our customer and market!
Second:We have 10 years’ experience of manufacturing varied screws, barrels and spares.We are keeping improving our production stytem day by day on the delievey,quality control,all the efforts have improved the customers satisfaction!
Third:We are located in China’s screw Town-Jintang,Town in zhoushan city,near to Ningbo Port and Shanghai Port!
Finally,We assure the customer benefits,we supply best quality and competitive price,also best customer service!
Contact Us
- Zhoushan Qunying Plastic Machinery Manufactory
- Contact nameFeiying Fang Chat Now
- Phone86-580-8340889,8340879
- AddressNo.169 Xindao East road, Jintang Town, Zhoushan,Zhejiang,China, Zhoushan, Zhejiang
