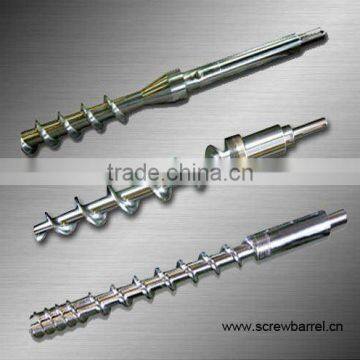

hot feed screw and barrel for rubber extruder

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port NingBo
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	QunYing
Model Number	QY7127

Product Description

Specifications

1. Diameter of screw: D12-D300mm
2. L/D ratio of screw: 10 - 50
3. Injection amount of screw barrel: 45g - 200g

***Grade available:

1. Standard grade: 38CrMoAlA + nitriding 96 hours
2. Bimetallic grade: 38CrMoAlA + bimetallic alloy
3. TC-A grade: Tungsten carbide 40%
4. TC-B grade: Tungsten carbide 25%
5. TC-C grade: Tungsten carbide 15%

***Material for rubber extruder screw barrel for rubber processing machine

1)38CrMoALA(JIS SACM645)

2)42CrMo(JIS SCM440)

3)9Cr18MoV
4)CW6Mo5Cr4V2

5)Various high quality alloy steels,According to different usage, the choose for alloy is different, some require for abrasion-resistant while some require for corrsion-resistant. For standard, we have Fe-based, Ni-based, ^W2C alloy,Tunsten alloy etc for choice.

6)The foreign material we used as following:

*Germanysteel, GH113 ,2250 ,2842 ,1.8509 ,1.442 ,1.6582 ,1.6523 ,1.2080,1.4542,

*USA steel, P20,420,L6,H13,W110,D3,A2,D6,O1,S1,M35,8620,3115,K52440
*Sweden steel, 718S,718H,S136,S136H,STAVAX,ASP-23,ASP-30
*Australia Steel, M202,M300,W302,K460,W300,K900,K100,W321
*Hardnesssteel, YG6X,YG 6A,YG 6,YG8N,YG8,YG8C,YG11C,YG 15,YT5,YT14,YT30
*Japan Steel, SKT 4,YXM 4,YXM 42,SNC 815,SK -3,SKS 3,and etc.

***Application:

Rubber,various high glass fiber, mineral fiber and PPA,PPS, PA6T, LCP,VO fire protection, ferrous power, magnetic powder and etc. Meanwhile,Used for PVC + 30% CaCo3, recylced plastic material.

***Treatment:

Heat-treatment

Nitriding treatment

Electroplate hard-chrome

High-frequency quenching

Spraying corrosion wear-resisting dual metal layers

Vacuum quenching

Technical Parameter

Steel Material	DIN 41CrA1Mo7 / AST M4140 / GB 38CrMoAlA /DC53/SKD61/HTP
Deepness of Nitriding Layer	0.7 mm -0.9 mm
Hardness of Nitriding	HV900 - HV1,000
Nitriding Brittleness	≤Grade 1
Chromate plating	Thickness 0.05 mm - 0.10 mm, hardness HV950
Special treatment	Carbide coating on screw flight and bimetallic barrel
Screw straight tolerance	0.015 mm/m
Surface roughness	Ra 0.4μm

Instructions for our Screw&Barrel:

1.We are a professional company specialized in manufacturing many types of screw, the barrel can be applied on all types of injection moulding machine,rubber hot-feeding extruder, rubber cold-feeding extruder, pin barrel cold feed extruder, plastic extruder with different specifications.
2.The models of screw include:

Variable pitch and variable depth, variable pitch and equal depth, variable depth and equal pitch, and equal depth and pitch.

Groove multi-die type, composite type, mixing type and separating type.

3. The material of screw: manufactured with high-quality nitro alloy steel, applying the method of hardening and tempering and nitriding, thus it enjoys the characteristics of long working life, wear resistance, and anti corrosion. Besides, the technique of hard alloy spraying or chrome plating can be used on the working surface of screw, which will make it have better using effectiveness.
