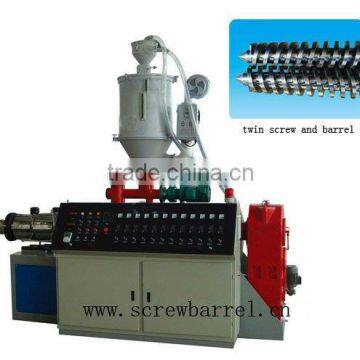

38CrMoALA(JIS SACM645)double Twin Parallel Screw and Barrel Bimetallic China Screw Barrel Twin
US$ 50 - 5,000
/ Set
1 Set(Min. Order)
- Ningbo Shanghai
- T/T D/P D/A
You May Like
-
38CrMoALA(JIS SACM645)double Twin Parallel Screw and Barrel Bimetallic China Screw Barrel Twin
-
(JIS SACM645)38CrMoALAdouble Twin Parallel Screw and Barrel Bimetallic China Screw Barrel Twin
-
(JIS SACM645)38CrMoALAdouble Twin Parallel Screw and Barrel Bimetallic China Screw Barrel Twin
-
Double Twin 38CrMoALA(JIS SACM645) Parallel Screw and Barrel Bimetallic China Screw Barrel Twin
-
9Cr18MoV Double Twin 38CrMoALA(JIS SACM645) Parallel Screw and Barrel Bimetallic China Screw Barrel Twin
-
Screw Barrel Parallel 9Cr18MoV Double Twin 38CrMoALA(JIS SACM645)bimetallic China Screw and Barrel
Product Details
| Place of Origin | Zhejiang, China | Brand Name | QunYing | |
| Model Number | QY-LG160 |
Product Description
Specifications
1.38CrMoALA(JIS SACM645)2.twin
3.alloy-steel of high quality
4.38 CrMoAIA(JIS SACM645)
cessed to drawing
38CrMoALA(JIS SACM645)
Material:
Alloy-steel of high-quality
1. 38 CrMoAIA(JIS SACM645)
2. 42CrMo(AISI4140)
3. 9Cr18MoV
4. CW6Mo5Cr4V2
5. SKD61
Processes:
1.Heat-treatment
2.Nitriding treatment
3.Electroplate hard-chrome
4.High-frequency quenching
5.Spraying corrosion wear-resisting dual metal layers
6.Vacuum quenching
Technical Parameters:
Screw
1. Nitride Depth: 0.55-0.7mm
2. Nitride Hardness: 850-960HV
3. Surface Roughness: Ra≤0.8um
4. Screw Straightness: 0.015mm
5. Bimetallic Hardness: HRC50-62
6. Bimetallic Depth: 1.5-2.0mm
Barrel
1. Nitride Depth: 0.55-0.7mm
2. Nitride Hardness: 960-1020HV
3. Surface Roughness: Ra≤1.6um
4. Bimetallic Hardness: HRC50-65
5. Bimetallic Depth: 1.5-2.0mm
Our products can ensure high performance and low energy consumption of extruder and Injection molding machine. More over, we can supply professional screw and barrel to your order! Sincerely looking forward to establishing new business ship with you in the near future.
|
