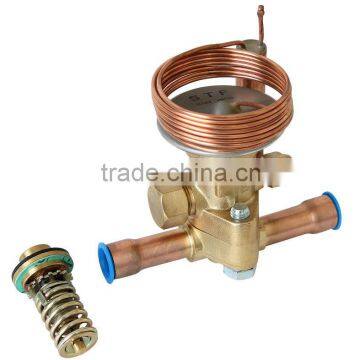

thermostatic expansion valve TCLE
- 500 Piece / Pieces per Month
- Shanghai
- T/T
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Gate | |
| Pressure | Medium Pressure | Power | Other, heat | |
| Material | Brass | Temperature of Media | Normal Temperature | |
| Media | Gas | Port Size | 16MM, 5/8In | |
| Place of Origin | Shanghai, China | Model Number | TCLE | |
| Brand Name | STF thermostatic expansion valve |
Product Description
Specifications
TCLE/TRFE series are take-apart valves applicable to freezing ,refrigeration and air conditioning plant.
Characteristics
l Interchangeable orifice assembly ,easier stocking ,easy
capacity matching ,better service.
l Stable superheat setting.
l Can be supplied with MOP(Max operating pressure).
l Input and output type and size according to customer’s
requirement.
l Suitable for R22, R134a, R407C, R404A/R507.
l If you have special requirement , please cantact STF.
| R134a | R22 | R407c | R404A/R507 | ||||||||
| (Model) | Nominal capacity (KW) | (Model) | Nominal capacity (KW) | (Model) | Nominal capacity (KW) | (Model) | Nominal capacity (KW) | ||||
| TCLE | 1/4M | 1.2 | TCLE | 1/2H | 1.76 | TCLE | 1/2N | 1.68 | TCLE | 1/3S | 1.17 |
| TCLE | 3/4M | 2.29 | TCLE | 1H | 3.52 | TCLE | 1N | 3.49 | TCLE | 2/3S | 2.35 |
| TCLE | 1-1/2M | 4.93 | TCLE | 2H | 7.04 | TCLE | 2N | 7 | TCLE | 1-1/2S | 5.28 |
| TCLE | 2-1/2M | 10.91 | TCLE | 3H | 10.55 | TCLE | 3N | 10.23 | TCLE | 2S | 7.04 |
| TCLE | 3-1/2M | 14.08 | TCLE | 5H | 17.6 | TCLE | 5N | 16.8 | TCLE | 3-1/2S | 12.32 |
| TCLE | 5-1/2M | 19.36 | TCLE | 7-1/2H | 26.4 | TCLE | 7-1/2N | 25.75 | TCLE | 5S | 17.6 |
| TCLE | 7-1/2M | 26.05 | TCLE | 10H | 35.2 | TCLE | 10N | 34.78 | TCLE | 7S | 24.64 |
| TCLE | 9M | 30.72 | TCLE | 12H | 42.24 | TCLE | 12N | 41.85 | TCLE | 8-1/2S | 29.92 |
| A | B | C | D | E | F | G | H | I | ||||
| Form of connection | Connection size | mm | mm | mm | mm | mm | mm | mm | mm | mm | Capillary length | |
| Inlet | Outlet | |||||||||||
| Straight-thru | ∅16 ODF or 5/8 | ∅16 ODF or 5/8 | 94 | 65 | 65 | 30.5 | 17 | 122 | ∅13 | 62 | 44.5 | 1.5m |
| Angle | ∅16 ODF or 5/8 | ∅16 ODF or 5/8 | 138 | 65 | 65 | 30.5 | 61 | 122 | ∅13 | 62 | 44.5 | |
Factory setting :superheat 3.5K, static superheat adjusting range is between 2~8K.
Turn adjusting stem anticlockwise one round ,reduces superheat 0.3K.
Note :If you have special requirement ,please contact STF.
Contact Information
STF Shanghai Thermostat Factory Co.,Ltd.
Address: No.655 West Zhongshan Road,
Songjiang District,Shanghai 201600.
Tel: +86-21-60537189
Cell: 86-18516078678
Fax: +86-21-67725882 61303675
Website:
Contact Information
STF Shanghai Thermostat Factory Co.,Ltd.
Address: No.655 West Zhongshan Road,
Songjiang District,Shanghai 201600.
Tel: +86-21-60537189
Cell: 86-18516078678
Fax: +86-21-67725882 61303675
Website:
Packaging Detail: carton
Delivery Detail: 15days
1)our advantage:
we are the manufacturer with more than 60 years experience in valves. Best price,quality and service, Also we can control the production status.
Shanghai Thermostat team with strong ability in designing and after sell service. Cooperation with Carrier has improved our quality to a new level.
2)Terms of payment: T/T, L/C, Western union.
3)Shipment: average 20-25days after receiving deposit.
4)Delivery: Shanghai ,by sea or air.
5)Gurantee: One year since delivery.
6)Inspection: 100% testing for all the valves.
7) All kinds of CERTIFICATE OF ORIGIN.
Welcome to chooseShanghai Thermostat , we are always ready!
