TCLE1 2H R22 Thermostatic Expansion Valve
- shanghai
- T/T Credit Card
You May Like
-
Air Conditioner Thermal Expansion Valve RTB RTBT
-
Solenoid Valve for CFC HCFC Oil Water Oil Gas
-
Unload Valve Compressor for CFC HCFC Oil Water Oil Gas
-
SOLENOID WATER VALVE for Oil, Water and Freon(FDF1.2S1)
-
Unloading Valve for CFC HCFC Oil Water Oil Gas About Control Coil Valve
-
Unloader Valve Compressor for CFC HCFC Oil Water Oil Gas About Control
Product Details
| Standard or Nonstandard | Standard | Structure | Safety | |
| Pressure | High Pressure | Power | Other | |
| Material | Brass | Temperature of Media | Normal Temperature | |
| Media | Water | Place of Origin | Shanghai, China | |
| Model Number | TCLE1 2H R22 Thermostatic Expansion Valve | Brand Name | STF |
Product Description

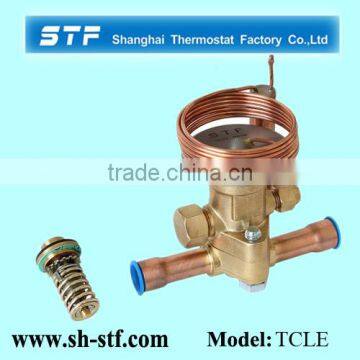

TCLE1 2H R22 Thermostatic Expansion Valve
Our Products VS Others:
Product Description:
1.Characteristics
1)Interchangeable orifice assembly ,easier stocking ,easy capacity matching ,better service.
2)Stable superheat setting.
3)Can be supplied with MOP(Max operating pressure).
4)Input and output type and size according to customer’s requirement.
5)Suitable for R22, R134a, R407C, R404A/R507.
6)If you have special requirement , please cantact STF.
2. Technical data
R134a | R22 | R407c | R404A/R507 | ||||||||
(Model) | Nominal capacity (KW) | (Model) | Nominal capacity (KW) | (Model) | Nominal capacity (KW) | (Model) | Nominal capacity (KW) | ||||
TCLE | 1/4M | 1.20 | TCLE | 1/2H | 1.76 | TCLE | 1/2N | 1.68 | TCLE | 1/3S | 1.17 |
TCLE | 3/4M | 2.29 | TCLE | 1H | 3.52 | TCLE | 1N | 3.49 | TCLE | 2/3S | 2.35 |
TCLE | 1-1/2M | 4.93 | TCLE | 2H | 7.04 | TCLE | 2N | 7.00 | TCLE | 1-1/2S | 5.28 |
TCLE | 2-1/2M | 10.91 | TCLE | 3H | 10.55 | TCLE | 3N | 10.23 | TCLE | 2S | 7.04 |
TCLE | 3-1/2M | 14.08 | TCLE | 5H | 17.60 | TCLE | 5N | 16.80 | TCLE | 3-1/2S | 12.32 |
TCLE | 5-1/2M | 19.36 | TCLE | 7-1/2H | 26.40 | TCLE | 7-1/2N | 25.75 | TCLE | 5S | 17.60 |
TCLE | 7-1/2M | 26.05 | TCLE | 10H | 35.20 | TCLE | 10N | 34.78 | TCLE | 7S | 24.64 |
TCLE | 9M | 30.72 | TCLE | 12H | 42.24 | TCLE | 12N | 41.85 | TCLE | 8-1/2S | 29.92 |
TRFE | 11M | 38.72 | TRFE | 14H | 49.28 | TRFE | 14N | 47.93 | TRFE | 10S | 35.20 |
TRFE | 13M | 45.76 | TRFE | 18H | 63.36 | TRFE | 18N | 61.59 | TRFE | 12S | 42.24 |
TRFE | 16M | 56.32 | TRFE | 22H | 77.44 | TRFE | 22N | 75.88 | TRFE | 15S | 52.80 |
TRFE | 19M | 66.36 | TRFE | 26H | 91.52 | TRFE | 26N | 90.79 | TRFE | 18S | 63.36 |
TRFE | 25M | 84.48 | TRFE | 35H | 123.20 | TRFE | 35N | 121.9 | TRFE | 25S | 88.00 |
TRFE | 31M | 105.60 | TRFE | 45H | 158.40 | TRFE | 45N | 156.78 | TRFE | 32S | 112.64 |
TRFE | 45M | 147.84 | TRFE | 55H | 193.60 | TRFE | 55N | 191.41 | TRFE | 38S | 133.76 |
TRFE | 55M | 193.60 | TRFE | 75H | 264.00 | TRFE | 75N | 262.50 | TRFE | 52S | 183.04 |
TRFE | 68M | 228.80 | TRFE | 100H | 352.00 | TRFE | 100N | 350.17 | TRFE | 70S | 246.40 |
TRFE | 80M | 280.60 | TRFE | 120H | 420.70 | TRFE | 120N | 416.70 | TRFE | 84S | 295.70 |
3.Superheat adjusting
Factory setting :superheat 3.5K, static superheat adjusting range is between 2~8K.
Turn adjusting stem anticlockwise one round ,reduces superheat 0.3K.
4.Dimensions
Model |
Form of connection |
Connection size | A mm | B mm | C mm | D mm | E mm | F mm | G mm | H mm | I mm | Capillary length | |
Inlet |
Outlet | ||||||||||||
TCLE |
Straight-thru | ∅16 ODF OR 5/8 | ∅16 ODF OR 5/8 | 94 | 65 | 65 | 30.5 | 17 | 122 | ∅13 | 62 | 44.5 | 1.5m |
Angle | ∅16 ODF OR 5/8 | ∅16 ODF OR 5/8 | 138 | 65 | 65 | 30.5 | 61 | 122 | ∅13 | 62 | 44.5 | ||
TRFE |
Straight-thru | ∅22 ODF OR 7/8 | ∅22 ODF OR 7/8 | 138 | 55 | 49 | 44 | 90 | 122 | ∅13 | 65 | 50 | 1.5m OR 3m |
∅28.5 ODM OR 1-1/8 | ∅28.5 ODM OR 1-1/8 | ||||||||||||
Angle | ∅22 ODF OR 7/8 | ∅22 ODF OR 7/8 | 138 | 55 | 49 | 44 | 90 | 122 | ∅13 | 65 | 50 | ||
∅28.5 ODM OR 1-1/8 | ∅28.5 ODM OR 1-1/8 | ||||||||||||
Flange | ∅33X∅35 | ∅33X∅35 | 123 | 115 | 85 | 111 | ∅35 | 122 | ∅13 | -- | -- | ||
Packaging and Shipping:
Packaging Detail: normally Export cartons:31*25*21cm then into plastic pallet
Delivery Detail: 15 days after receiving deposit
Packaging products:
Our Services:
1)our advantage:
we are the manufacturer with more than 60 years experience in valves. Best price,quality and service, Also we can control the production status.
Shanghai Thermostat team with strong ability in designing and after sell service. Cooperation with Carrier has improved our quality to a new level.
2)Terms of payment: T/T, L/C, Western union.
3)Shipment: average 20-25days after receiving deposit.
4)Delivery: Shanghai ,by sea or air.
5)Gurantee: One year since delivery.
6)Inspection: 100% testing for all the valves.
7) All kinds of CERTIFICATE OF ORIGIN.
Welcome to choose Shanghai Thermostat , We are always ready!
Company Information:
1.Company and Stuff
2.Production Line
3.Certificates
FAQ:
1.Q: What is your main market?
A: Our main market is north America, especially USA.
2.Q: Are you products standard?
A: Our model is standard, if you have specific demand, pls tell us.
3.Q: Do you have interest to do our own design items?
A: Absolutely! We have big interest.
