CO2 Objective Lens
- 300 Piece / Pieces per Month
- XINGANG
- Credit Card
You May Like
Product Details
| Place of Origin | Beijing, China | Brand Name | sino oper | |
| Model Number | so | Material | Glass | |
| Usage | Optical | Structure | Other | |
| Shape | Other |
Product Description
Specifications
The laser lens is widely used in drilling and marking area.
Objective CO2 Introduction:
Monolithic flat field scan lens are designed for co2 laser scanning system, widely used in drilling and marking fields.
Part No. | SL1-10.6- F100Z-48A | SL1-10.6- F150Z-48 | SL1-10.6- F200Z-70 | SL1-10.6- F250Z-48 | SL1-10.6- F420Z-70A |
EFL | 100mm | 150mm | 200mm | 250mm | 420mm |
Scan Field | 70×70mm | 107×110mm | 140×140mm | 175×175mm | 300×300mm |
Diffraction Limit Spot | 106.7 um | 161 um | 160 um | 214 um | 268 um |
Full Beam Diameter | 12 mm | 12 mm | 16 mm | 15 mm | 20 mm |
Max Input Angel | 29 deg | 29 deg | 28 deg | 28 deg | 28 deg |
Lens Dia | 48 mm | 48 mm | 70 mm | 48 mm | 75 mm |
ET | 3 mm | 3.1 mm | 2.8 mm | 3.2 mm | 3.4 mm |
BFL | 106.3 mm | 152.7 mm | 208.8 mm | 256 mm | 430 mm |
Objective YAG Introduction:

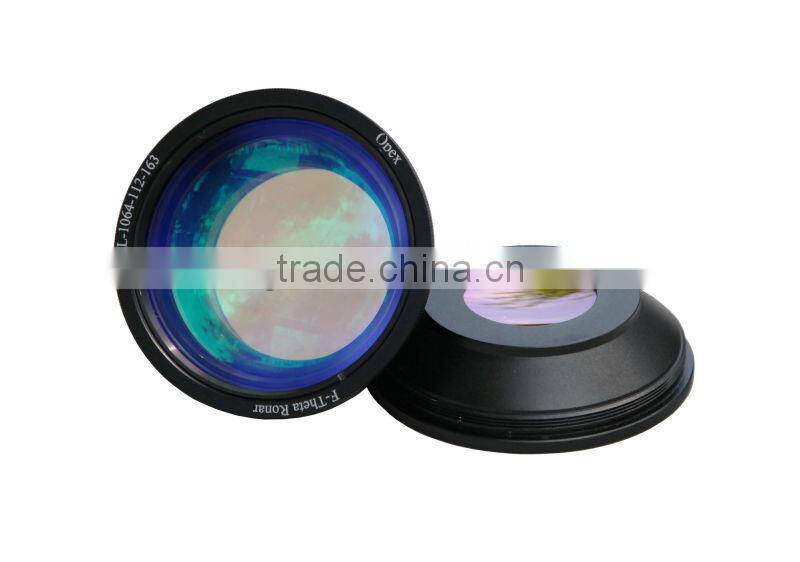

Theta Scan Lens is widely applied for taking advantage of galvanometer scanning. Nd: YAG, Green ray and U-YAG scan system. It is widely used in drilling and marking area.
Part No. | SL-1064- 70-100 | SL-1064- 110-160B | SL-1064- 140-210 | SL-1064- 180-260 | SL-1064- 300-420 |
EFL mm | 100 | 150 | 210 | 260 | 420 |
Scanning Angle mm, | -/+25 deg | -/+28 deg | -/+25 deg | -/+25 deg | -/+27 deg |
Scan Length mm | 90 | 156 | 198 | 254 | 400 |
Scan Field mm | 70×70 | 110×110 | 140×140 | 180×180 | 300×300 |
Ent. Pupil mm | 14 | 12 | 14 | 10 | 14 |
Average Spot Size um | 22.5 | 21 | 14.5 | 47 | 42.5 |
Length mm | 49.5 | 41 | 50 | 63 | 69.36 |
WD mm | 100 | 187.09 | 238.4 | 297 | 495.5 |
Screw Thread | M85×1 | M85×1 | M85×1 | M85×1 | M85×1 |
Packing:
CO2 Objective Lens will be packed in the wooden case or carton case.
Shipping:
1.Door to door, by the DHL,EMS, UPS,FedEx etc.
2.By air to the Air cargo or by sea to the seaport.
1. 1 year warranty.
2. Professional technician support on all our products.
3. We supply the sample,user manual, video operation.
4. Online trade-manager 24 hours.
we will continue to “quality first,customer first” principle of service, to update ,better product and quality service to customers.
Contact us:
michellechung07
michelle.z AT
+86-010-82790570
About us:
SINO-OPER just is a growing friend with you, and always concentrates on innovative
laser scanning systems.
We are honored that our company is supported by the people who are working for it.
Reaching a goal requires a flexible, powerful, dynamic team that reacts on work together
as one unit.
1.Minimum order quantity:1set
2.Payment terms: T/T in advance, western union
3.Delivery time: within 5 days after payment
4.Warranty: 1year
