copper conductor PVC/XLPE insulation PVC sheath control cable,xlpe dsta pvc cable,pvc cable 1.5mm2 copper wire scrap
- 5000 Kilometer / Kilometers per Month
- Qingdao Port
- T/T Credit Card
You May Like
-
China manufacturer XLPE insulated flexible controlcable electrical power cable copper conductor lead sheathed cable
-
Copper core PVC insulation PE sheath 450/750V control cable,3.5mm audio cable with volume control with low copper wire price
-
450V/750V copper conductor cable sony system control cable
-
fire resistant cable 450/750V PVC insulation sheath control cable specification,control cable
-
copper conductor PVC insulation and PVC sheath flexible push pull control cable
-
copper conductor PVC/XLPE insulation PVC sheath KVV control cable
Product Details
Place of Origin | Shandong, China | Brand Name | BIN AO | |
Model Number | KVVRP, KFFP,KVV | Insulation Material | PVC | |
Type | Low Voltage | Application | Underground | |
Conductor Material | Copper | Jacket | PVC |
Product Description

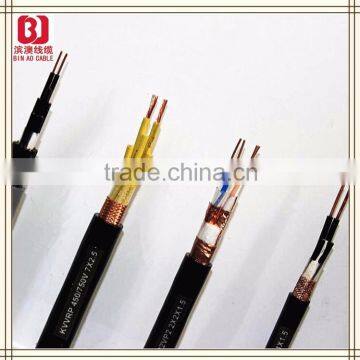

copper conductor PVC/XLPE insulation PVC sheath control cable
1. Rated power-frequency voltage U0/U: 450/750V, 300/500V and 300/300V.
2. Maximum permitted operating temperature of conductor is 60°C.
3. Permitted lowest working temperature is -35°C.
4. Cables can be used at places contaminated by mineral oil and fuel oil.
5. D more than 25mm
The minimum bending radius is over 6 times of cable diameter.
D not less than 25mm
The minimum bending radius is over 4 times of cable diameter.
(D-Diameter of the cable)
PVC Insulated Screened Control cables
Generally speaking, there are two ways of copper wires braided screen and copper tape wrapped screen for control cables, however, copper wires braided screen has stable structure, the effect of screen won’t change with the cable bending or appearance factors etc, but also doesn’t have influence on cables’ flexibility, braiding density can reach over 80%, besides,copper tape wrapped screen percentage of coverage can reach up to 100%.
Plastic PVC Insulated Screened control Cables are used for rated voltage up to and including 450/750V.
The long-term operating temperature of PVC insulation cable conductor should be lower than 70°C,and that of XLPE insulation should be lower than 90°C.
The installing ambient temperature of cables shouldn’t be lower than 0°C,the Min. bending radius of installing is 6 times of the outer diameter.
Unarmored control cables
Such unarmored control cables are suitable for laying indoors and in the electrical cabinets, however, the cables can’t bear larger external mechanical forces.
PVC sheath has stable property and excellent chemical corrosion protection characteristics, also with the features of non-fire propagation and non-water absorption, which greatly ensure the cables’ service life.
Control cables with steel wires armore
Steel wires armored control cables can endure certain mechanical tension, which are widely suitable for high-level difference environment, also can be installed vertically .
Cables with screen have good shielding and anti-interference performances.
Control Cable Tye and General Introduction
Type | Name | Application Site |
KVV/KYJV | Copper conductor, PVC/XLPE insulation, PVC sheath control cable | For laying doors, in trenches and in ducts, for fixed installation. |
KYJ(F)V | Copper conductor, Irradiated cross-linked insulation, PVC sheath control cable | With flame retardant property and conductor Max. temperature of 90-150°C |
KVV22 KYJV22 | Copper conductor, PVC/XLPE insulation, PVC sheath control cable with steel tape armored | For laying doors, in ground, can withstand heavier mechanical force and for fixed installation. |
KYJ(F)V22 | Copper conductor, Irradiated cross-linked insulation, PVC sheath control cable with steel tape armored | With flame retardant property and conductor Max. temperature of 90-150°C, which can withstand heavier mechanical force |
KVVP KYJVP | Copper conductor, PVC/XLPE insulation, PVC sheath with copper wire braided shield control cable | For laying doors, in trenches and in ducts, such cable has the stable structure and excellent properties of anti-interference. |
KVVP2 KYJVP2 | Copper conductor, PVC/XLPE insulation, PVC sheath with copper tape wrapped shield control cable | For laying doors, in trenches and in ducts, the cable has stable structure and excellent properties of anti-interference also can withstand heavier mechanical force. |
KVVP22 KYJVP22 | Copper conductor, PVC/XLPE insulation, PVC sheath with copper wire braided shield and Steel tape armored control cable | For laying in doors, in ground and be able to withstand heavier mechanical force and good anti-interference properties for fixed installation. |
KVVP2-22 KYJVP2-22 | Copper conductor, PVC/XLPE insulation, PVC sheath with copper tape wrapped shield and Steel tape armored control cable | For laying in doors, in ground and be able to withstand heavier mechanical force and good anti-interference properties for fixed installation. |
KVV32 KYJV32 | Copper conductor, PVC/ XLPE insulation, PVC sheath control cable with steel wire armored | For laying doors, in ground, able to withstand heavier mechanical force and for fixed installation. |
KVVP32 KYJVP32 | Copper conductor, PVC/XLPE insulation, PVC sheath/ copper wires braided shield and steel wire armored control cable | For laying doors, in ground, able to withstand heavier mechanical force and for fixed installation. |
KVVP2-32 | Copper conductor, PVC insulation, PVC sheath with Copper tape wrapped shield and steel wire armored control cable | For laying doors, in ground, able to withstand heavier mechanical force and for fixed installation. |
KVVR | Copper conductor , PVC insulation and PVC sheath flexible control cable | For laying doors, connecting movable devices which can be used for movable installation. |
KVVRP | Copper conductor, PVC insulation and PVC sheath flexible control cable with copper wire braided shield | For laying doors with good property of shielding and anti-interference, for movable installation but can’t withstand external mechanical force. |
KVVRP2 | Copper conductor, PVC insulation and PVC sheath flexible control cable with copper tape wrapped shield | For laying doors with good property of shielding and anti-interference, for movable installation but can’t withstand external mechanical force. |
NH-KVV | Copper conductor, PVC insulation and PVC sheath fire-resistance control cable | Excellent property of flame-retardance and applies to high requirements of fire-fighting situation. |
More products for you to choose:
Specification Drawing :
Product Packaging:
Wooden or iron drum or as customer's requirement
Our Company:
Shandong Binao Wire& Cable Co.,Ltd.,founded in 2009 with a registered capital of 102 million CNY, covering an area of 96000 square meters, structure area 15000 square meters, is a large modern domestic enterprise integrating development, production and sales together.It owns the most advanced cable production and test equipment at home and abroad. The company has successively acquired the National Industrial Production License of PRC, and passed the China National Compulsory CCC Certification, the ISO9001:2008 Quality Management System Certification, and the ISO14001:2004 Environment Manament System Certification. And the company was awarded the title of National High-tech Enterprise, for it stays ahead in the technical aspect of the cable industry with more than 20 R&D technicians and several technical and untility patents.
Production Line:
As one of top rank cables manufacturers in China, our factory is mainly specialized in PVC Insulated Building Wire, PVC and XLPE Insulated Power Cable ,hook-up wires for electric appliance, controlling cables, power cables, instrument signal cables, high temperature-resistant cables, low temperature-resistant cables,fire ratardant cables,aerial cables, marine cables, rubber sleeve cables for mining, locomotive cables, branch cables and special cables.These various types cables could be widely used in electricity, petroleum, chemical industry, railway, construction etc.
Our Certification:
Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST,CCC and so on.
As first rank of the supplier in China, we have obtained ISO9001, ISO14001 and CCC certificates.
