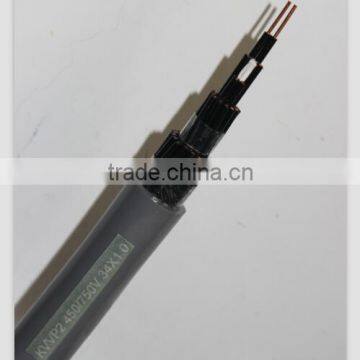

KVV KVVP 450/750v Control Cable

Type

Name

Application Site

KVV/KYJV

Copper conductor, PVC/XLPE insulation, PVC sheath control cable

For laying doors, in trenches and in ducts, for fixed installation.

KYJ(F)V

Copper conductor, Irradiated cross-linked insulation, PVC sheath control cable

With flame retardant property and conductor Max. temperature of 90-150°C

KVV22 KYJV22

Copper conductor, PVC/XLPE insulation, PVC sheath control cable with steel tape armored

For laying doors, in ground, can withstand heavier mechanical force and for fixed installation.

KYJ(F)V22

Copper conductor, Irradiated cross-linked insulation, PVC sheath control cable with steel tape armored

With flame retardant property and conductor Max. temperature of 90-150°C, which can withstand heavier mechanical force

KVVP   KYJVP

Copper conductor, PVC/XLPE insulation, PVC sheath with copper wire braided shield control cable

For laying doors, in trenches and in ducts, such cable has the stable structure and excellent properties of anti-interference.

KVVP2 KYJVP2

Copper conductor, PVC/XLPE insulation, PVC sheath with copper tape wrapped shield control cable

For laying doors, in trenches and in ducts, the cable has stable structure and excellent properties of anti-interference also can withstand heavier mechanical force.

KVVP22 KYJVP22

Copper conductor, PVC/XLPE insulation, PVC sheath with copper wire braided shield and Steel tape armored control cable

For laying in doors, in ground and be able to withstand heavier mechanical force and good anti-interference properties for fixed installation.

KVVP2-22 KYJVP2-22

Copper conductor, PVC/XLPE insulation, PVC sheath with copper tape wrapped shield and Steel tape armored control cable

For laying in doors, in ground and be able to withstand heavier mechanical force and good anti-interference properties for fixed installation.

KVV32 KYJV32

Copper conductor, PVC/ XLPE insulation, PVC sheath control cable with steel wire armored

For laying doors, in ground, able to withstand heavier mechanical force and for fixed installation.

KVVP32 KYJVP32

Copper conductor, PVC/XLPE insulation, PVC sheath/ copper wires braided shield and steel wire armored control cable

For laying doors, in ground, able to withstand heavier mechanical force and for fixed installation.

KVVP2-32

Copper conductor, PVC insulation, PVC sheath with Copper tape wrapped shield and steel wire armored control cable

For laying doors, in ground, able to withstand heavier mechanical force and for fixed installation.

KVVR

Copper conductor , PVC insulation and PVC sheath flexible control cable

For laying doors, connecting movable devices which can be used for movable installation.

KVVRP

Copper conductor, PVC insulation and PVC sheath flexible control cable with copper wire braided shield

For laying doors with good property of shielding and anti-interference, for movable installation but can’t withstand external mechanical force.

KVVRP2

Copper conductor, PVC insulation and PVC sheath flexible control cable with copper tape wrapped shield

For laying doors with good property of shielding and anti-interference, for movable installation but can’t withstand external mechanical force.

NH-KVV

Copper conductor, PVC insulation and PVC sheath fire-resistance control cable

Excellent property of flame-retardance and applies to high requirements of fire-fighting situation.
