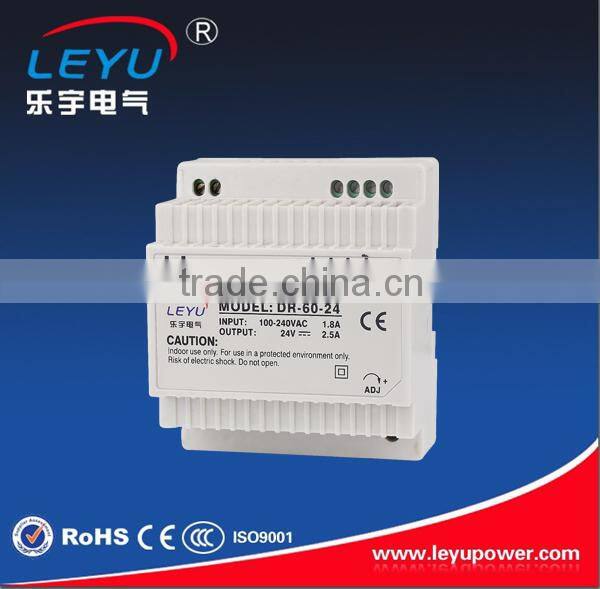

60w 12v 5A Single Output Industrial Manufacture Power Supply 60w Din Rail Plastic Enclosures

SPECIFICATIONS

OUTPUT

Model

DR-60-5

DR-60-12

DR-60-15

DR-60-24

DC Voltage

5V

12V

15V

24V

Rated Current

6.5A

4.5A

4A

2.5A

Current Range

0-6.5A

0-4.5A

0-4A

0-2.5A

Rated Power

32.5W

54W

60W

60W

Ripple & Noise

80mVp-p

120mVp-p

120mVp-p

150mVp-p

Voltage Adj. Range

-5%,+10%

-8%,+10%

±10%

±10%

Voltage Tolerance

±2%

±1%

±1%

±1%

Setup, Rise Time

100ms,30ms/230VAC   200ms,30ms/115VAC at full load

Hold Up Time

100ms/230VAC   23ms/115VAC at full load

INPUT

Voltage Range

88~264VAC   47~63Hz; 124~370VDC

AC Current

1.2A/115V   0.8A/ 230V

Efficiency

76%

82%

83%

84%

Inrush Current

Cold start 18A/115V   36A/230V

Leakage Current

<1mA/240VAC

PROTECTION

Over Load

105%~160%

Protection type: Constant current limiting, recovers automatically after fault condition is removed

Over Voltage

115%~135%

Protection type: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

Working Temp., Humidity

-20℃~+60℃; 20%~90%RH

Storage Temp., Humidity

-40℃~+85℃; 10%~95%RH

Temp. Coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes

SAFETY

Withstand Voltage

I/P-O/P: 3KVAC

Isolation Resistance

I/P-O/P: 100M Ohms / 500VDC

STANDARD

Safety Standard

Design refer to UL60950-1,TUV EN60950-1,EN50178

EMC Standard

Design refer to EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,EN61000-6-2,EN61204-3

OTHERS

Dimension

78*93*56mm(L*W*H)

Weight

0.3Kg

Packing

50 pcs/carton

NOTE

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.

2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor.

3.Tolerance: includes set up tolerance, line regulation and load regulation.

4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
