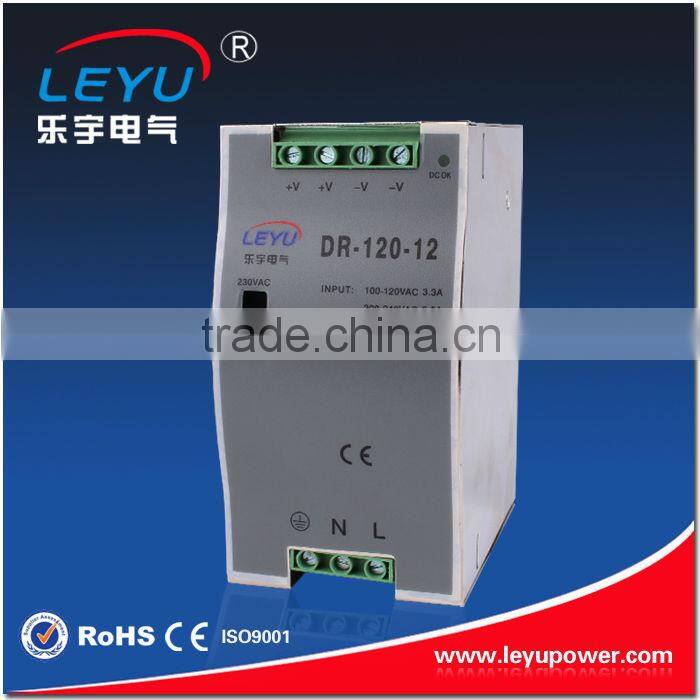

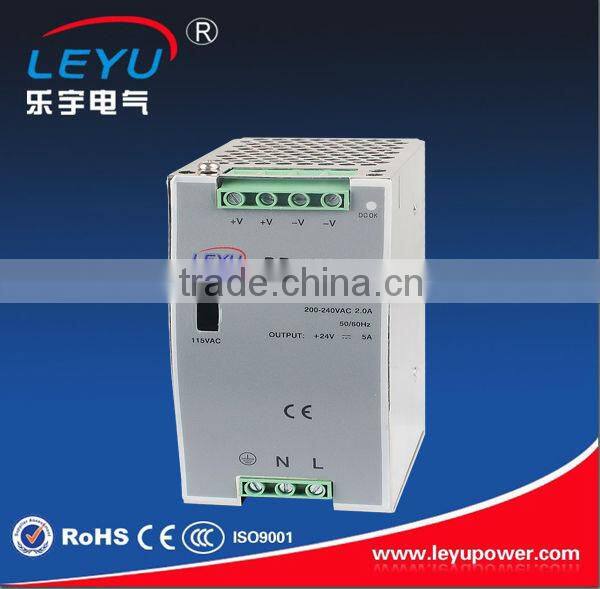

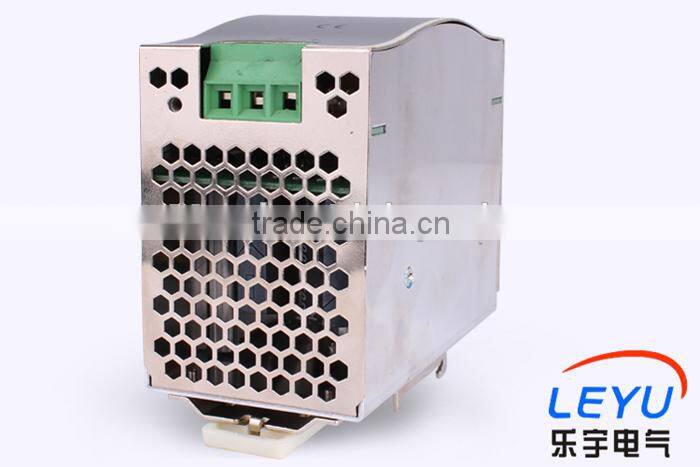

for LED Module Lamp DR-120-24 DIN RAIL Series Switching Power Supply 220v 24v

SPECIFICATIONS

OUTPUT

Model

DR-120-12

DR-120-24

DR-120-48

DC Voltage

12V

24V

48V

Rated Current

10A

5A

2.5A

Current Range

0-10A

0-5A

0-2.5A

Rated Power

120W

120W

120W

Ripple & Noise

80mVp-p

80mVp-p

100mVp-p

Voltage Adj. Range

12-14V

24-28V

48-53V

Voltage Tolerance

±2%

±1%

±1%

Setup, Rise Time

500ms,70ms/230VAC   500ms,70ms/115VAC at full load

Hold Up Time

36ms/230VAC   32ms/115VAC at full load

INPUT

Voltage Range

88~132VAC/176~264VAC selected by switch   47~63Hz; 248~370VDC

AC Current

2.6A/115V   1.6A/230V

Efficiency

80%

84%

85%

Inrush Current

Cold start 20A/115V   40A/230V

Leakage Current

<3.5mA/240VAC

PROTECTION

Over Load

105%~150%

Protection type: Constant current limiting, recovers automatically after fault condition is removed

Over Voltage

120%~135%

Protection type: Shut down o/p voltage, re-power on to recover

Over Temp.

85℃±5℃(TSW1)

90℃±5℃(TSW1)

90℃±5℃(TSW1)

Protection type: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

Working Temp., Humidity

-10℃~+60℃; 20%~90%RH

Storage Temp., Humidity

-20℃~+85℃; 10%~95%RH

Vibration

10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes

SAFETY

Withstand Voltage

I/P-O/P: 3KVAC   I/P-FG: 1.5KVAC   O/P-FG: 0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC

STANDARD

Safety Standard

Design refer to UL508,UL60950-1,TUV EN60950-1

EMC Standard

Design refer to EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,EN61000-6-2(EN50082-2)

OTHERS

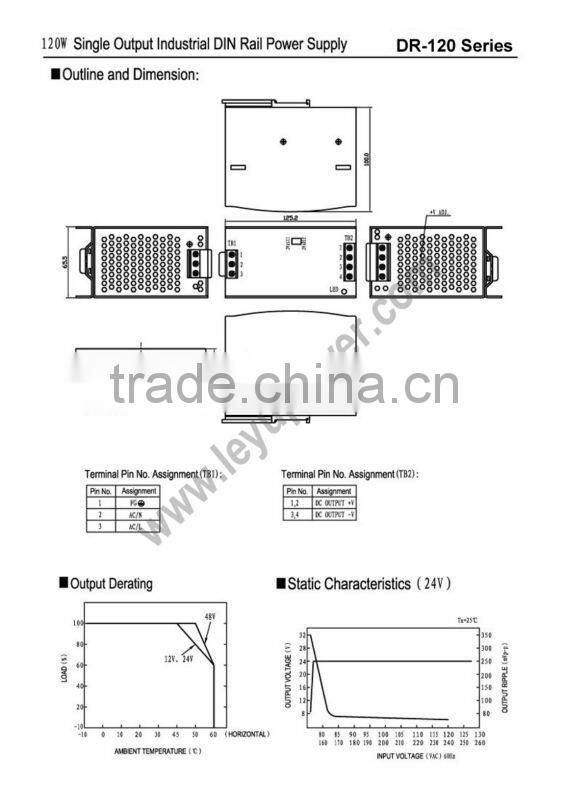

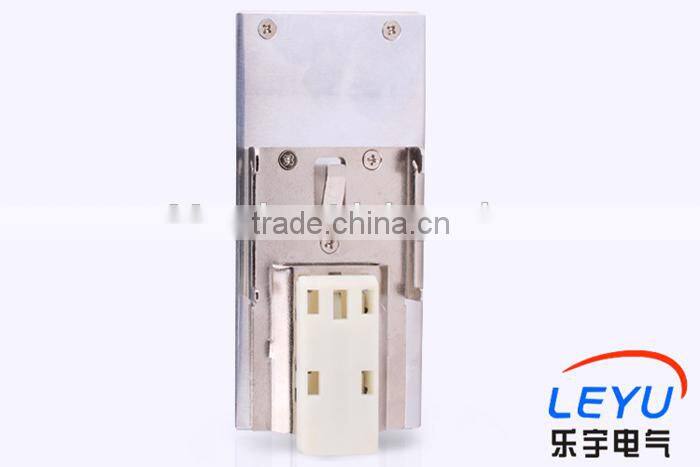

Dimension

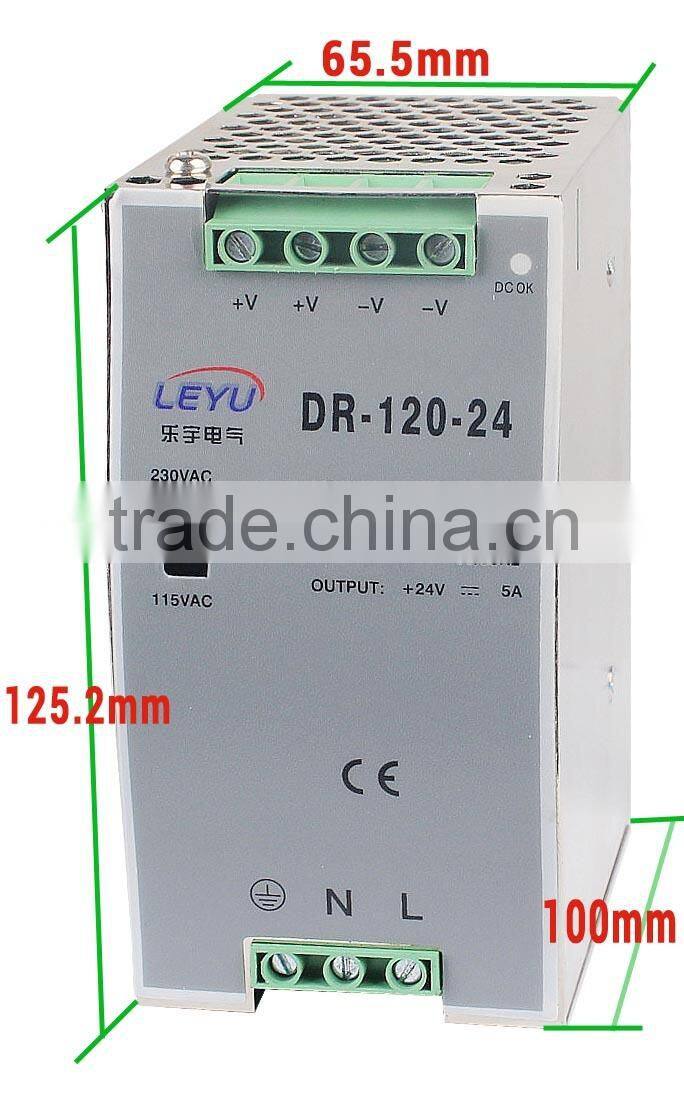

65.5*125.2*100mm(L*W*H)

Weight

0.79Kg

Packing

35pcs/carton

NOTE

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor.

3.Tolerance: includes set up tolerance, line regulation and load regulation.

4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
