•   1/4" Sony CCD


•   23x optical zoom


•   3D DNR, D WDR, IR 100M


•   540TVL high resolution

•  3D intelligent position IP66

            Model

Parameter

DS-2AE7154(N)-A

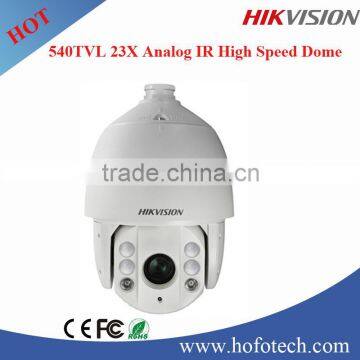

540TVL Analog IR PTZ Dome Camera

Camera

Image Sensor

1/4" Sony CCD

Effective Pixel

2230K pixels

Min. Illumination

Color: 0.4Lux(F1.6, 1/30 sec, 50IRE, AGC on);

0.05lux(F1.6, 1/1 sec, 50 IRE, AGC on); 0 lux with IR

B/W: 0.03Lux(F1.6, 1/30 sec, 50IRE, AGC on) ;

0.005lux(F1.6, 1/1 sec, 50 IRE, AGC on); 0 lux with IR

White Balance

Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp

AGC

Auto/Manual

S / N Ratio

≥ 50dB

DNR

3D DNR

Backlight compensation

HLC/BLC

WDR

Digital WDR

Shutter speed

50Hz: 1-1/30,000s, 60Hz: 1-1/30,000s

Day & Night

IR Cut Filter

Digital zoom

16X

Privacy masking

24 privacy masks programmable, optional multiple colors and mosaics

Focus mode

Auto / Semiautomatic / Manual

Enhancement

Defog

Lens

Focal length

4.3-129mm, 30X optical zoom

Zoom speed

Approx.3s(Optical Wide-Tele)

Angle of view

65.5-2.11 degree (Wide-Tele)

Min. Working Distance

10-1500mm(Wide-Tele)

Aperture range

F1.6-F5.0

Pan and Tilt

Smart tracking

Support

Pan/Tilt range

Pan: 360° endless; Tilt: -2°-90°(auto flip)

Pan/Tilt speed

Pan Manual Speed: 0.1°-160°/s, Pan Preset Speed: 240°/s

Tilt Manual Speed: 0.1°-120°/s, Tilt Preset Speed: 200°/s

Proportional Zoom

Rotation speed can be adjusted automatically according to zoom multiples

Number of Preset

256

Patrol

8 patrols, up to 32 presets per patrol

Pattern

4 patterns, with the recording time not less than 10 minutes per pattern

Power-off memory

Support

Park action

Preset/Patrol/Pattern/Pan scan/Tilt scan/Random scan/Frame scan/Panorama scan

PTZ position display

Support

Preset freezing

Support

Scheduled task

Preset/Patrol/Pattern/Pan scan/Tilt scan/Random scan/Frame scan/

Panorama scan/Dome reboot/Self-test action/Alarm output

Infrared

Smart IR

Support

IR distance

Up to 150m

IR intensity

Automatically adjusted, depending on the zoom ratio

Alarm

Alarm input

7 inputs

Alarm output

2 reply outputs, alarm response actions configurable

Alarm trigger

Motion detection, Audio Exception Detection, Dynamic analysis,Tampering alarm,

Network disconnect, IP address conflict, Storage exception

Alarm action

Preset, Patrol, Pattern, SD/SDHC card recording, Relay output, Notification on Client

Local Video & Audio

Video output

1.0V[p-p]/75W, NTSC(OR PAL) composite, BNC

Audio input

1 Mic in/Lin in interface. Line input: 2-2.4V[p-p]; output impedance: 1KW, ±10%

Audio output

1 Audio output interface. Line level, impedance: 600W

Network

Ethernet

10Base-T / 100Base-TX, RJ45 connector

Max. Image Resolution

1920×1080

Frame Rate

50Hz: 25 fps (1920×1080), 25 fps (1280×960) , 25 fps (1280×720)

60Hz: 30 fps (1920×1080), 30 fps (1280×960) , 30 fps (1280×720)

Image Compression

H.264/MJPEG/MPEG4, H.264 encoding with Baseline/Main/High profile

SVC

Support

ROI encoding

Support

Audio Compression

G.711u/G.711a/G.726/MP2L2

Protocols

IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP, DNS,DDNS,

NTP,RTSP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE

Simultaneous Live View

Up to 10

Streams

Triple streams

SD memory card

Built-in SD/SDHC Slot, up to 32GB, support manual/alarm/edge recording

User/Host Level

Up to 32 users, 3 Levels: Administrator, Operator and User

Security measures

User authentication (ID and PW), Host authentication (MAC address),

IP address filtering

Integration

Application programming

Open-ended API, support Onvif, PSIA and CGI

Web Browser

IE7+, Chrome 18+, Firefox 5.0+, Safari 5.02+, support multi-language

General

RS-485 protocols

HIKVISION, Pelco-P, Pelco-D, self-adaptive

Power

-A: 24VAC, max.50W

-AEL: 24VAC, max.60W/High-PoE, max.50W

Working temperature

-A: -30 ℃-65℃(-22℉-149℉)

-AEL: 24VAC: -40 ℃-65℃(-40℉-149℉)/High-PoE: -30℃-65℃(-22℉-149℉)

Humidity

90% or less

Protection Level

IP66, TVS 4,000V lightning protection, surge protection and

voltage transient protection

Dimensions

Φ245×399mm (Φ9.65”×15.71”)

Weight

Approx. 5.5kg(12.13lbs)
