Home > Products > HOFO > 2016 newest 4ch HD CVI DVR KIT ,720p CVI DVR and CVI camera

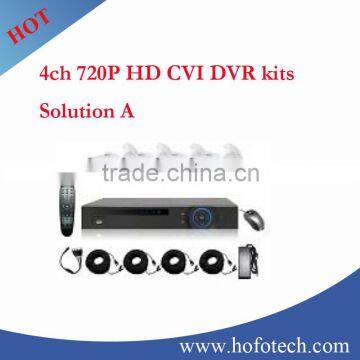

2016 newest 4ch HD CVI DVR KIT ,720p CVI DVR and CVI camera

FOB Price

USD $158 - $185 / Piece

1 Piece(Min.Order)

Port Shanghai/Ningbo
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	HOFO
Model Number	HFKIT-CVR5104DA10

Product Description

Camera & CVR Included:

- 1*HFCVI-CVR5104D

- 4*HFCVI-LBH24CV100

Model	HFCVI-CVR5104D
System
Main Processor	ARM® CPU Core (GM8287)
Operating System	Embedded LINUX
Video
Input	4 Channel, CVI
Output	1 VGA, 1 HDMI
Audio
Input	1 Channel, RCA
Two-way Audio	Yes
Output	1 Channel, RCA
Alarm
Sensor Input	NO
Output	NO
Motion Detection	4 Channel
Trigger Events	Recording, PTZ, Tour, Alarm, Video Push, Email, Screen tips
Email Alarm	Send Pieces to The Designated E-mail
PTZ
Interface	RS485
Protocol	Pelco-D, Pelco-P, Sony, Sharp, Panasonic, Samsung and Other Protocols
Baud Rate	1200~115200
Address	0~255
Display
VGA	Resolution: 1024×768, 1280×720, 1280×1024, 1920×1080
HDMI	Resolution: 1080P(1920×1080), 720P( 1280×720)
Display Split	4 Channel / 1Channel
Privacy Masking	4 Rectangular Zones (Each camera)
OSD	Camera title, Time, Video loss, Alarm, Motion detection, Recording
Recording
Video Compression	H.264
Audio Compression	G711A,G711U,PCM
Resolution	1080P(19201080), 960P(1280960), 720P(1280×720), D1(P:704×576/N:704×480), HD1(P:352×576/N:352×480), CIF(352×288/ 352×240), QCIF(P:176×144/N:176×120)
Video Quality	Best/Fine/Normal
Record Rate	PAL: 1080P@48fps, 960P@100fps, 720P@100fps, D1@100fps, HD1@100fps, CIF@100fps, QCIF@100fps NTSC: 1080P@60fps, 960P@120fps, 720P@120fps, D1@120fps, HD1@120fps, CIF@120fps, QCIF@120fps
Record Mode	ManualTimerMotion Detection
Playback & Backup
Sync Playback	4 Channel / 1Channel
Remote Playback	4 Channel/ 1Channel
Search Mode	ALL, Channel, Manual, Time, Date, Motion Detection
Playback Functions	Play, Pause, Stop, Rewind, Fast play, Slow play
Smart Phone Playback	Support
Backup Mode	USB Device/Network
Network
Interface	1 RJ45 10M/100M Adaptive Ethernet Interface
Network Functions	HTTP, IPv4,IPv6, TCP/IP, SMTP, DHCP, DNS, PPPOE, DDNS,NTP,DST
DDNS	Quick DDNS(free of charge), 3322, Dyndns
Web Browser	IE6-11, Google Chrom , Firefox
CMS Software	Support Windows XP /Windows Vista/Windows 7/Windows 8
Extra Stream	D1/CIF/QCIF(1~25fps)
Smart Phone	iPhone, ipad, Android
Hard Disk Driver
Interface Type	2 SATA Interface
Capacity	Up to 8TB Capacity
General
Language	Simplified Chinese, Traditional Chinese, English, Italian, Spanish, Japanese, Russian, French, German, Portuguese, Turkey, Poland, Romania, Hungary, Finnish, Hebrew, Brazil, Persian, Arabian, Czech,Bulgaria, Slovak, Dutch, Greece, Indonesia, Switzerland, Vietnamese, Thai
USB Interface	2 USB 2.0 Interfaces
Power Supply	DC12V/3A
Working Environment	-10℃~55℃/10%~90%
Dimension (W×D×H)	335mm×270mm×55mm
Weight	2.5kg (Without HDD)

Model NO.			HFCVI-LBH24CV100
Camera
Image Sensor	OV9712S	IMX238	PO3100K	AR0130	IMX238
DSP	NVP2431H	NVP2430H	DH9801	DH9801	TP2801
Image Resolution	PAL: 25fps@720P(1280×720); NTSC: 30fps@720P(1280×720)
Effective Pixels	1280(H)×720(V) , 1MP
TV System	PAL/NTSC
Electronic Shutter	1/25s~1/50,000s , 1/30s~1/60,000s
Sync System	Internal
Usable Illumination	0.01Lux	0.001Lux	0.01Lux	0.01Lux	0.001Lux
S/N Ratio	≥50dB
Scanning System	Progressive Scan
Video Output Mode	AHD/CVBS (960H) (BNC)	AHD/CVBS (960H) (BNC)	CVI(BNC)	CVI(BNC)	TVI(BNC)
Lens
Focus Length	Board Lens 3.6mm/F2.0
Focus Control	Fixed
Lens Type	Fixed
Pixels	2M Pixels
Auto Iris Support	NO
Night Vision
Infrared LED	5X24PCS
Infrared Distance	20M
IR Status	Under 10 Lux by CDS
IR Power On	CDS Auto Control
