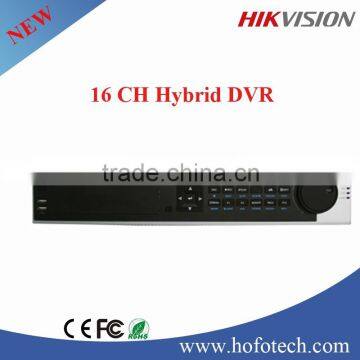

Hikvision 16ch hybrid dvr DS-8016HFI-ST

• Hybrid input: 32ch IP + ANALOG

• Play back at:  5Megapixels / 3Megapixels / 1080P / UXGA / 720P / 4CIF

• 8 SATA supported

• Synchronous playback up to 16ch

• up to 16 alarm in , 4 alarm out

Model

DS-8004HFI-ST

DS-8008HFI-ST

DS-8016HFI-ST

Video/Audio input

Video compression

H.264

Analog video input

4-ch,

BNC

(1.0           Vp-p, 75 Ω),

PAL /NTSC  self-adaptive

8-ch,

BNC

(1.0           Vp-p, 75 Ω),

PAL /NTSC  self-adaptive

16-ch,

BNC

(1.0 Vp-p, 75 Ω), PAL /NTSC  self-adaptive

IP video input

8-ch

16-ch

32-ch

Composite

video input

Up to 8-ch

(Analog video + IP video)

Up to 16-ch (Analog video + IP video)

Up to 32-ch (Analog video + IP video)

Audio compression

OggVorbis

Audio input

4-ch,

BNC

(2.0 Vp-p, 1 kΩ)

8-ch,

BNC

(2.0 Vp-p, 1 kΩ)

16-ch,

BNC

(2.0 Vp-p, 1 kΩ)

Two-way audio

1-ch, BNC (2.0 Vp-p, 1 kΩ)

Video/Audio output

HDMI output

1-ch, resolution:

1920 × 1080P / 60 Hz ,1920 × 1080P / 50 Hz,1600 × 1200 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz

VGA output

1-ch, resolution:

1920 × 1080P / 60 Hz ,1600 × 1200 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz

CVBS output

1-ch, BNC (1.0 Vp-p, 75 Ω),

resolution: PAL: 704 × 576, NTSC: 704 × 480

Video spot output

1-ch, BNC (1.0 Vp-p, 75 Ω),

resolution: PAL: 704 × 576, NTSC: 704 × 480

Video loop out

Optional

Encoding resolution

4CIF / 2CIF / CIF / QCIF

Frame rate

25 fps (P) / 30 fps (N)

Video bit rate

32 Kbps ~ 8192 Kbps, or user defined (Max. 8192 Kbps)

Audio output

2-ch, BNC (Linear, 600 Ω)

Audio bit rate

16 Kbps

Dual-stream

Support | (Sub-stream at CIF/QCIF: 25fps (P)/30fps (N))

Stream type

Video, Video & Audio

Playback resolution

5Megapixels / 3Megapixels / 1080P / UXGA / 720P / 4CIF / VGA / DCIF / 2CIF / CIF / QCIF

Synchronous playback

8-ch

16-ch

16-ch

Hard disk

SATA

8 SATA interfaces

eSATA

1 eSATA interface

Capacity

Up to 4TB capacity for each disk

External interface

Network interface

1 RJ45 10M / 100M / 1000M Ethernet interface

Serial interface

1 RS-232 interface (for parameters configuration, maintenance, transparent channel);
1 RS-485 interface (for PTZ control);
1 RS-485 keyboard interface (for special keyboard control)

USB interface

2, USB2.0

Alarm in

4

16

16

Alarm out

2

4

4

General

Power supply

100 ~ 240 VAC, 6.3 A, 50 ~ 60 Hz

Consumption

(without hard disk or DVD-R/W)

≤ 35 W

≤ 40 W

≤ 45 W

Working temperature

-10 ºC~ +55 ºC

Working humidity

10% ~ 90%

Chassis

19-inch rack-mounted 2U chassis

Dimensions

(W × D × H)

445 × 470 × 90 mm

Weight

≤ 8 kg (without hard disk or DVD-R/W)
