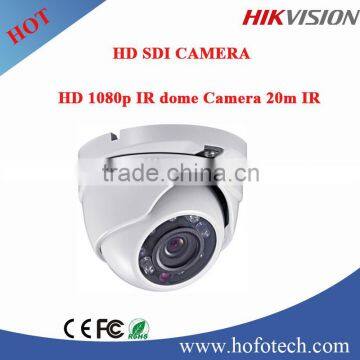

hikvision 2mp HD SDI camera, mini IR dome camera
- Shanghai
You May Like
-
hikvision 720P HD SDI camera mini IR dome camera
-
hikvision1080P HD SDI camera mini IR bullet camera AHD
-
hikvision 1.3 Megapixel 1/3" CMOS ICR HD-SDI Camera,security camera
-
cheap2.1MP hd sdi cctv camera
-
Hikvision 720P real time HD SDI camera, ir dome camera
-
Hikvision 720P bullet hd sdi camera ir 20m HD camera ip66
Product Details
Place of Origin | Zhejiang, China | Brand Name | Hikvision | |
Model Number | DS-2CC52D5S-IRM | Type | Analog Camera | |
Style | Dome Camera | Sensor | CMOS | |
Technology | Infrared | Special Features | Waterproof / Weatherproof |
Product Description
HOFO Will Be Your Best Partner
|
|
|
|
• IP66 weatherproof
|
Model Parameter | DS-2CC52D5S-IRM |
2 Megapixel 1/3" CMOS ICR HD-SDI Camera | |
Camera | |
Image Sensor | 1/3" Progressive Scan CMOS |
Signal System | PAL/NTSC |
Effective Pixels | 1920(H)*1080(V) |
Min. Illumination | 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR |
Shutter Time | 1/25 s to 1/50,000 s |
Lens | 3.6mm (2.8mm, 6mm optional) |
Angle of View: 80.9°(3.6mm), 103.5°(2.8mm), 54.3°(6mm) | |
Lens Mount | M12 |
Angle Adjustment | Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360° |
Day & Night | ICR cut filter auto switch |
Synchronization | Internal synchronization |
WDR | Digital WDR |
Video Frame Rate | PAL: 1080p@25fps NTSC: 1080p@30fps |
HD Video Output | SMPTE292M (HD-SDI) |
CVBS Output | 1Vp-p Composite Output(75Ω/RCA) |
S/N Ratio | More than 52dB |
Menu | |
Camera ID | On/off (15 characters, position programmable) |
AGC | Support |
D/N Mode | Auto/color/black and white |
White Balance | AWC-SET, indoor, outdoor, manual white balance, auto white balance |
Privacy Mask | On/Off, maximum 8 zones |
Motion Detection | On/Off, maximum 3 zones |
BLC | Support |
Anti-flicker | On/off |
RS 485 | Rule: PELCO D/P Baud Rate: 2400-38400 |
Language | Chinese/English |
Functions | Eclipse, Digital noise reduction, Digital zoom(64 times), Slow shutter, ePTZ, Mirror, PIP, Demist, Defect pixel correction |
General | |
Working Temperature/Humidity | -10 °C - 60 °C (14 °F - 140 °F) Humidity 90% or less (non-condensing) |
Power Supply | DC12V±10% |
Power Consumption | 2.5W MAX (Max. 4 W with IR cut filter on) |
Weather Proof Ratings | IP66 |
IR Range | Approx. 10 to 20 meters |
Dimension | 89.6 × 59.1 mm (3.53” × 2.33”) |
Weight | 400 g (0.88 lbs) |
♦ Quality Control
1. All raw materials are carefully selected and inspected.
2. Advanced production equipment is used and routinely inspected and serviced.
3. All operators and employees are thoroughly trained.
4. All products have passed the European Union RoHS standard and are CE, FCC certified.
5. All products must pass strict inspection before delivery.
6. Professional logistics personnel are employed to control the damage during the physical distribution of products.
♦ Cost Control
1. Our factories have been accredited in terms of ISO9001, and our advanced management system increases efficiency and reduces costs.
2. Bulk purchasing has reduced our material cost, and massive production have lowed each product cost.
3. Advanced production equipment such as our SMT production line provides a highly efficient production rate.
4. Reduction of any unnecessary surplus of products by strict stock control reduces our warehousing costs.
♦ Strong Tech Support
1. Presale: product consultation and solution design can be provided.
2. Sale: spares parts can be provided at a certain discount. Delivery time is approximately two weeks. Please note that delivery times may vary depending on the destination and transportation method.
3. After sale: We offer a 2-years warranty, which includes maintenance and technical support for all the products. Within the warranty period, exchanges and free maintenance are provided. If any quality issues occur, please contact us for technical support via telephone, email, or any method available on our site.
4. We can also provide project designs, customized products, online training, in-person training, and OEM services.
