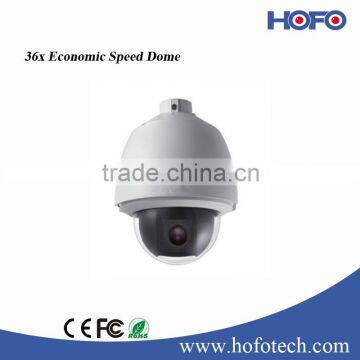

5 Inch Speed Dome,36 x optical zoom hikvision indoor camera

Model

Parameter

HFPTZ-8515-A:24VAC,Outdoor

HFPTZ-8515-A0:24VAC,Indoor ceiling

HFPTZ-8515-A3:24VAC,Indoor in-ceiling

5 Inch Cost-effective Series Speed Dome

Camera

Image Sensor

1/4’’ Sony CCD

Effective Pixel

PAL:752(H)×582(V)

NTSC:768(H)×494(V)

Horizontal Resolution

Color: 540 TVL

B/W: 600 TVL

Signal System

PAL /NTSC

Min. Illumination

Color: 0.1Lux@( F1.6,AGC ON)
B/W: 0.01Lux@( F1.6,AGC ON)

White Balance

Auto / Manual / ATW / Outdoor / Indoor

AGC

Auto / Manual

S / N Ratio

≥ 50dB

DNR

High/Medium/Low/off

WDR

128x(On/Off/Auto)

Shutter Time

PAL: 1-1/10,000s

NTSC: 1-1/10,000s

Day & Night

IR Cut Filter

Digital Zoom

16x

Privacy Mask

8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen

Focus Model

Auto / Semiautomatic / Manual

Lens

Focal Length

3.4-122.4mm, 36X

Zoom Speed

Approx.5.4s(Optical Wide-Tele)

Angle of View

57.8-1.7degree(Wide-Tele)

Min. Working Distance

10-1000mm (Wide-Tele)

Aperture

F1.6-F4.5

Pan and Tilt

Pan Range

360° endless

Pan Speed

Pan Manual Speed: 0.1°-250°/s,

Pan Preset Speed: 300°/s

Tilt Range

-5°-90° (Auto Flip )

Tilt Speed

Tilt Manual Speed: 0.1°-150°/s,

Tilt Preset Speed: 200°/s

Proportional Zoom

Rotation speed can be adjusted automatically according to zoom multiples

Number of Preset

255

Patrol

8 patrols, up to 32 presets per patrol

Pattern

4 patterns, with the total recording time not less than 10 minutes

Power-off Memory

Support

Park Action

Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan

PTZ Position Display

On / Off

Compass

Support , the north can be set

Scheduled Task

Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan / Day / Night

Input/ Output

Monitor Output

1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC

General

Menu Language

English

RS-485 Protocols

HIKVISION, Pelco-P, Pelco-D, self-adaptive

Power

24VAC

Outdoor dome: Max. 20W (Heater On), Max. 12W(Heater Off)

Indoor dome: Max.12W

Working Temperature / Humidity

-30 °C-65°C(-22°F-149°F)(outdoor dome) / -10°C-50°C(14°F-122°F)(indoor dome )

90% or less

Protection Level

IP66 standard (outdoor dome)

TVS 4,000V lightning protection, surge protection and voltage transient protection

Mounting

Various mounting modes optional

Dimensions

Φ220×305mm (Φ8.66”×12.00”)(Outdoor)

Φ183.4×243mm(Φ7.22”×9.56”) (Indoor)

Φ245×236mm(Φ9.65”×9.29”) (In-ceiling)

Weight (approx.)

5Kg (11.02Ibs)

Mount Option (only suitable for outdoor dome)

Long-arm wall mount: DS-1601ZJ;Corner mount: DS-1633ZJ; Pole Mount: DS-1622ZJ;Power box mount:DS-1634ZJ
