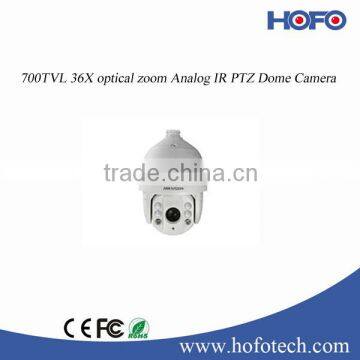

OEM Hikvision Outdoor 700TVL Analog IR PTZ Dome Camera 36X optical zoom Security Surveillance Camera
- Shanghai
You May Like
-
Hikvision Analog PTZ 540TVL PTZ DOME Camera,Security Camera
-
Hikvision OEM 720TVL PICADIS Indoor Dome Camera Analog CCTV Camera dome camera with microphone
-
HD 1080P IR Dome Camera 1/3" CMOS 2 MP Image Sensor Hikvision OEM Security Surveillance Camera
-
Hikvision 720TVL EXIR Bullet Camera Waterproof Camera Security Camera
-
Hikvision 700TVL sony ccd mini size analog ptz dome camera
-
Hikvison 24ch 960h dvr, hybrid digital video recorder support 2HDD
Product Details
Place of Origin | Zhejiang, China | Brand Name | HOFO/Hikvision | |
Model Number | DS-2AE7168(N)-A | Type | Analog Camera | |
Style | Dome Camera | Sensor | CCD | |
Technology | Other, True Day/Night | Special Features | Waterproof / Weatherproof |
Product Description
Relative Products
Key Features
1/4” Sony CCD
700TVL horizontal resolution
36X optical zoom, 16X digital zoom
Up to 100m IR distance
True Day/Night, Digital WDR
3D intelligent positioning
Application Scenarios
It can be widely applied to places requiring wide-area monitoring display, such as rivers, forests, highways, railways, airports, ports, sentries, squares, parks, scenic sites, streets, stations, large venues, outside of residential areas, etc., and the auto tracking function can be applied to the perimeter protection scenes, e.g., the perimeter of airport, harbor, and residential community.
Specifications
DS-2AE7168(N)-A 700TVL Analog IR PTZ Dome Camera 36X Optical Zoom | |
Camera | |
Image sensor | 1/4” Sony CCD |
Effective pixel | PAL: 976(H) ×582(V), NTSC: 976(H) ×494(V) |
Horizontal Resolution | Color: 700TVL, B/W: 750TVL |
Min. illumination | Color: 0.02Lux/(F1.6, AGC on), 0.0008lux/(F1.6, AGC ON, sensitivity×256), 0 lux with IR B/W: 0.002Lux/(F1.6, AGC on), 0.00008lux/(F1.6, AGC ON, sensitivity×256), 0 lux with IR |
White balance | Auto /Manual/ATW/Indoor/Outdoor |
AGC | Auto/Manual |
S / N Ratio | ≥ 50dB |
DNR | 3D DNR |
WDR | Digital WDR |
Shutter speed | PAL: 1-1/10,000s, NTSC: 1-1/10,000s |
Day & Night | IR Cut Filter |
Digital zoom | 16X |
Privacy masking | 8 privacy masks programmable, optional multiple colors and mosaics |
Focus mode | Auto / Semiautomatic / Manual |
Lens | |
Focal length | 3.3-119m, 36X |
Zoom speed | Approx.6.0s(Optical Wide-Tele) |
Angle of view | 57.1-1.7 degree (Wide-Tele) |
Min. working distance | 10-1000mm(Wide-Tele) |
Aperture range | F1.4-F3.7 |
Pan and Tilt | |
Pan/Tilt range | Pan: 360° endless; Tilt: -15°-90°(auto flip) |
Pan/Tilt speed | Pan Manual Speed: 0.1°-160°/s, Pan Preset Speed: 240°/s Tilt Manual Speed: 0.1°-120°/s, Tilt Preset Speed: 200°/s |
Proportional zoom | Rotation speed can be adjusted automatically according to zoom multiples |
Number of preset | 256 |
Patrol | 8 patrols, up to 32 presets per patrol |
Pattern | 4 patterns, with the total recording time not less than 10 minutes |
Power-off memory | Support |
Park action | Preset/Patrol/Pattern/Pan scan/Tilt scan/Auto/Random scan/Frame scan/Panorama scan |
PTZ position display | On/Off |
Compass | Support, the north can be set |
Scheduled task | Preset/Patrol/Pattern/Pan scan/Tilt scan/Auto/Random scan/Frame scan/Panorama scan |
Infrared | |
IR range | Up to 100m |
IR irradiation angle | Automatically adjusted, depending on the zoom ratio |
Input/Output | |
Video output | 1.0V[p-p]/75W, PAL/NTSC composite, BNC |
General | |
RS-485 protocols | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
Power | 24VAC, max.30W |
Working temperature | -30 ℃-65℃(-22℉-149℉) |
Humidity | 90% or less |
Protection level | IP66 TVS 4,000V lightning protection, surge protection and voltage transient protection |
Dimensions | Φ245×399mm (Φ9.65”×15.71”) |
Weight | Approx. 5.5kg(12.13lbs) |
Order mdoels
DS-2AE7168-A: PAL, 24VAC, outdoor
DS-2AE7168N-A: NTSC, 24VAC, outdoor
If you are interested in our products, pls feel free to contact us.
We will do our best to service you.
Our aim: Best Quality, Superior Service!
