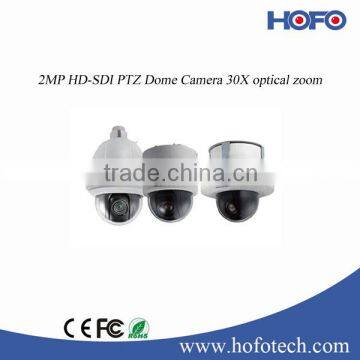

30X Optical Zoom 2MP HD-SDI PTZ Dome Camera Hikvision OEM Security Camera

DS-2AF5286-AS(outdoor)

DS-2AF5286-A3S(indoor)

2MP HD-SDI PTZ Dome Camera 30X Optical Zoom

Camera

Image sensor

1/2.8” Progressive Scan CMOS

Effective pixel

2230K pixels

Horizontal Resolution

>900TVL

Min. illumination

Color: 0.05Lux@(F1.6, AGC on); B/W: 0.005Lux@(F1.6, AGC on)

White balance

Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp

AGC

Auto/Manual

S / N Ratio

≥ 50dB

DNR

3D DNR

Backlight compensation

BLC

WDR

Digital WDR

Shutter speed

50Hz: 1/25-1/10,000s; 60Hz: 1/30-1/10,000s

Day & Night

IR Cut Filter

Digital zoom

16X

Privacy masking

24 privacy masks programmable, optional multiple colors and mosaics

Focus mode

Auto / Semiautomatic / Manual

Lens

Focal length

4.3-129mm, 30X optical zoom

Zoom speed

Approx.3.0s(Optical Wide-Tele)

Angle of view

65.5-2.11 degree (Wide-Tele)

Min. working distance

10-1500mm(Wide-Tele)

Aperture range

F1.6-F5.0

Pan and Tilt

Pan/Tilt range

Pan: 360° endless; Tilt: -5°-90°(auto flip)

Pan/Tilt speed

Pan Manual Speed: 0.1°-300°/s, Pan Preset Speed: 540°/s

Tilt Manual Speed: 0.1°-240°/s, Tilt Preset Speed: 400°/s

Proportional zoom

Rotation speed can be adjusted automatically according to zoom multiples

Number of preset

256

Patrol

8 patrols, up to 32 presets per patrol

Pattern

4 patterns, with the recording time not less than 10 minutes per pattern

Power-off memory

Support

Park action

Preset/Patrol/Pattern/Pan scan/Tilt scan/Random scan/Frame scan/Panorama scan

PTZ position display

Support

Preset freezing

Support

Scheduled task

Preset/Patrol/Pattern/Pan/Tilt/Random/Frame/Panorama scan/Dome reboot/Self-test action/Alarm output

Alarm

Alarm input

2(7 alarm inputs optional)

Alarm output

2 relay outputs, alarm response actions configurable

Alarm trigger

Motion detection, Audio Exception Detection, Dynamic analysis, Tampering alarm,

Network disconnect, IP address conflict, Storage exception

Alarm action

Preset, Patrol, Pattern, SD/SDHC card recording, Relay output, Notification on Client

Local video & audio

Output

HD-SDI Output, BNC interface

General

RS-485 protocols

HIKVISION, Pelco-P, Pelco-D, self-adaptive

Power

24VAC, max.40W

Working temperature

-AS: -30 ℃-65℃(-22℉-149℉);

-A3S: -10 ℃-50℃(14℉-122℉)

Humidity

90% or less

Protection level

IP66, TVS 4,000V lightning protection, surge protection and voltage transient protection

1K 10(optional)

Dimensions

Φ220×325.5mm (Φ8.66”×12.81”)(Outdoor)

Φ183.4×243mm (Φ7.22”×9.57”)(Ceiling)

Φ245×236mm (Φ9.65”×9.29”)(In-ceiling)

Weight

Approx. 5kg(11.02lbs)
