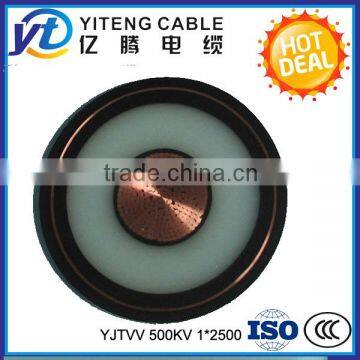

Cu|AL Conductor Price High Voltage Power Cable

Cu|AL Conductor Price High Voltage Power Cable

Cu|AL Conductor Price High Voltage Power Cable

Product Description

Conductor: Cu/Al

Insulation: XLPE( Cross-Linked Polyethylene )

Sheath: PVC( Polyvinyl chloride )

Sheath Color: Black or Gray( Bespoke cable )

Bending Radius:

Single core: 20D ± 0.05 , multi-core: 15D ± 0.05

Temperature Rating: 0°C to 90°C

Standards: IEC502 , IEC332-3

Operating Characteristics
1. Rated voltages: 3.6/6kV~26/35kV
2. The ambient temperature for cable installation ≥ 0
3. Maximum conductor temperature in normal operation ≤ 90
4. Max operating temperature of conductor When cable short-circuited(5s maximum duration): 250
5. Permissible bending radius:
Single core cable: [20(D+d)+5%], mm
Multi cable: [15(D+d)+5%], mm
D---------------Actual overall diameter, mm
D---------------Actual diameter of Conductor, mm

Data and Model

21/35(40.5)kV 1-core high voltage XLPE cable

Application:

High voltage xlpe cable is used to be laid indoors, in tunnel, cable furrow or pipe, this cable couldn’t bear mechanical force outside. Laying single core cable in magnetic duct not permissible.

Yiteng Cable Technology Hebei Co., Ltd
Registered capital of RMB:100,000,000
Factory Area:36,000m2
Manufacturing Capacity per year: 250000km
Number of Employees: 250

Main products:
Bare conductors(AAC,ACSR,AAAC,ACAR,Aluminum Clad Steel Conductor);

Aerial Bundled Cable (ABC Cable);

Power cable,Electrical wire cable,

Armored cables,

Control cables,

Rubber insulated cables, PVC insulated wires and cables,

Battery cables,Instrument cables, Coaxial cables,Flat cables,

Welding cables,House wire,Special Cables etc.

FAQ:

1.Q: Is your company a manufacturer or a trade company?

A: We are cable manufacturer.

2. Q: Where is your factory located? How can I visit there?

A:Our factory is located in Ningjin City, Hebei,Province, China. You can fly to Shijiazhuang airport directly. All our clients, from home or abroad, are warmly welcome to visit us!

3. Q: What is your sample policy?

A: Some of our samples are available for free, while others are available at a cost, which will be deducted from the purchase order.

4.Q: How does your factory do regarding quality control?

A: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end.

5. Q: I am very interested in your product, can you sent me your full catalog and pricing list?

A: We can select some popular products for you immediately.  Please let us know your requirements so that we can send out the quotation to you.
