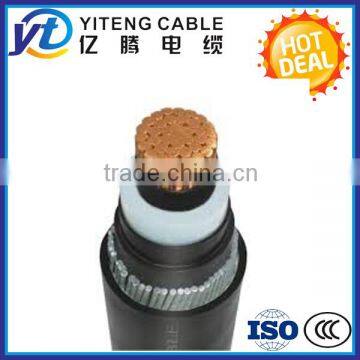

20kv cable single core cable 300mm

20kv cable single core cable 300mm

Cable conductor allows a maximum operating temperature of 90 ℃, emergency overload maximum operating temperature of 130 ℃ note, when a short circuit ( time ≤ 5 seconds) conductor maximum temperature of 250 ℃.

Note : China's power sector is no uniform overload time specified ; American standards , the load exceeds 10% of the rated load , duration of not more than 15 minutes .
Laying of cable installation when the ambient temperature is not lower than -20 ℃, warm-up time to deal with the cable laying .

Cable minimum bending diameter:

1. XLPE insulated wrinkled aluminum wrapper waterproof PVC sheathed power cable

2. XLPE insulated and wrinkled aluminum wrapper waterproof layer PE sheathed power cable

3. XLPE insulated PVC sheathed power cable lead pack

4. XLPE insulated PE sheathed power cable lead pack

Cable Type

Note: The table D0 measured value for the cable diameter .
    The maximum allowable axial traction ( not considering the turn of the radial side pressure ) when the cable is installed
    T = K * cores * cross-section (kg)
    Where the coefficient K value , taking seven copper or aluminum conductor to take 4 .
    When the maximum permissible cable bend side pressure P
    Single core cables required P ≤ 500kg / m.
    P = T / R (T axial traction , R is the radius of the bending wheel )
    Because traction is generally determined by the above equation by the cable length and weight , to make P meet the above requirements , should increase the turning wheel diameter .
    Cabling not drop restrictions .

Production range

Yiteng Cable Technology Hebei Co., Ltd
Established Year: 2014
Registered capital of RMB:100,000,000
Factory Area:36,000m2
Manufacturing Capacity per year: 250000km
Number of Employees: 250

Main products:
Bare conductors(AAC,ACSR,AAAC,ACAR,Aluminum Clad Steel Conductor);

Aerial Bundled Cable (ABC Cable);

Power cable,Electrical wire cable,

Armored cables,

Control cables,

Rubber insulated cables, PVC insulated wires and cables,

Battery cables,Instrument cables, Coaxial cables,Flat cables,

Welding cables,House wire,Special Cables etc.

FAQ:

1.Q: Is your company a manufacturer or a trade company?

A: We are cable manufacturer.

2. Q: Where is your factory located? How can I visit there?

A:Our factory is located in Ningjin City, Hebei,Province, China. You can fly to Shijiazhuang airport directly. All our clients, from home or abroad, are warmly welcome to visit us!

3. Q: What is your sample policy?

A: Some of our samples are available for free, while others are available at a cost, which will be deducted from the purchase order.

4.Q: How does your factory do regarding quality control?

A: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end.

5. Q: I am very interested in your product, can you sent me your full catalog and pricing list?

A: We can select some popular products for you immediately.  Please let us know your requirements so that we can send out the quotation to you.
