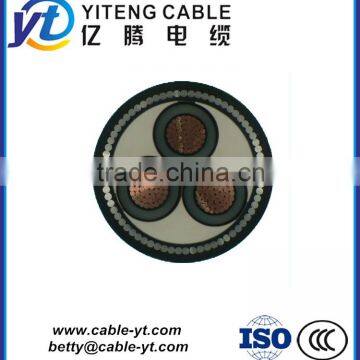

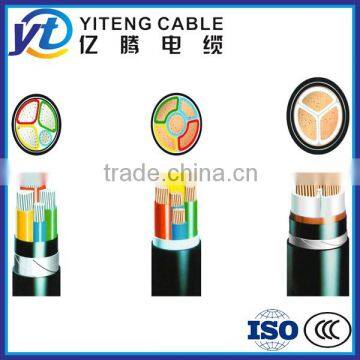

Low Medium High Voltage Xlpe Insulated Power Cable and Electric Wire

XLPE Power Cable/XLPE Construction Cable

Description:
For single core PVC or XLPE insulated or covered aerial cable without messenger or neutral conductor, the phase conductor may be AAC or AAAC or ACSR or Copper.  types of electrical underground cables

For more than one core PVC or XLPE insulated aerial cable with or without messenger or neutral conductor and with or without street lighting conductor, the phase conductor and street lighting conductor are AAC with PVC insulation, and the messenger or neutral

conductor is AAAC or ACSR with or without PVC(XLPE) insulation.

Operating Characteristics

Rated voltage: Up to and including 0.6/1(1.2)kV;  types of electrical undergroundcables

Max. permissible continuous operating temperature of conductor: 90oC(XLPE insulated),70 oC (PE insulated), 70 oC (PVC insulated);

Max. temperature of conductor during short-circuit ( 5s max. duration) shall not exceed: 250oC(XLPE insulated), 130 oC (PE insulated), 160 oC (PVC insulated);  types of electrical underground cables

The ambient temperature under installation should not be lower than: -20 oC.The bending radius of cable is recommended as following:

When the diameter of cable is less than 25mm: not less than 4 times of the diameter of cable When the diameter of cable is not less than 25mm: not less than 6 times of the diameter of cable

When the cable is used in alternative current system, the rated voltage of cable should be at least equal to the rated voltage of system; when the cable is used in direct current system, the rated voltage of system should not greater than 1.5 times of the rated voltage

of the cable.

Application:

PVC or XLPE insulated aerial cable as a new-type aerial cable is used for overhead electric power transmission, extensively used in rebuilding of urban and forest region electrified wire netting. It improves the safety and reliance of electrified wire netting.  types of

electrical underground cables

Manufacturing Standards:

GB/T 12527-2008, IEC 60502-1, BS 7870-5
