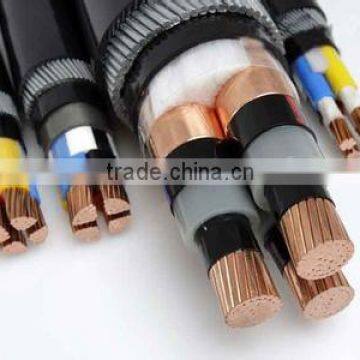

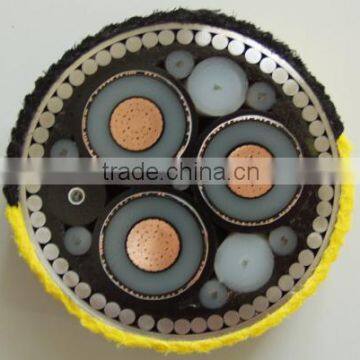

Hot Sale XLPE Insulated High Voltage Electric Cable

This product is manufactured according to  GB/T12706 (eqvIEC60502), GB/T18380-2001(eqv. IEC60332),GB/T19216 (IEC60311) and /or the BS, DIN and/or other types of international standards.And we also design and produce cables according to the requirement of our clients.

2.Application

1,Long term working temperature for the cable with PVC insulated is 70℃;

Long term working temperature for the cable with XLPE insulated is 90℃

2,Short circuit temperature

For PVC insulated cable ,the highest conductor temperature is not more than160℃.(lasting time not over 5 seconds).

For XLPE insulated cable ,the highest conductor temperature is not more than250℃.(Lasting time is not over 5 seconds).

3,Laying temperature not less than 0℃ and the drop height is out of consideration.

4,The cable with chemical stability, anti- acid, anti-alkali, anti-oil, anti-organic solvent, not easy to be burning.

5,Easy for installation, easy bending and light

6,Bending ratio:

Rated Voltage :0..6/6kV,3.6/6kV.

Conductor of cables can be Copper and Aluminum. The cables can be single core, two cores, three cores, four cores(including three main cores and neutral).five cores (including three main cores and neutral and one earthing core, Four main cores and one neutral).The cables can be with armor and without armor.

Rated voltage 6kV (Um=7.2) and 35kV (Um=40.5)

XLPE insulated cable has good electrical and physical properties, resistant to aging, resistant to the environment stress and chemical corrosion operation, with the characteristics of simple structure, easy to use, no drop-height restriction when laying, higher long-term working temperature (90℃).

3.Table of the voltage, cores and cross-section

The cable with Category A rated voltage is used in the situation requiring not over 1 min. of grounding fault lasting time. For the cable with Category B rated voltage, the grounding fault lasting time normally is not over 1 hour, max. lasting time is not over 8 hours, annual ground fault lasting time altogether should not be over 125 hours, Category C includes all the system expect Category A and B.

4.Cable  name and application

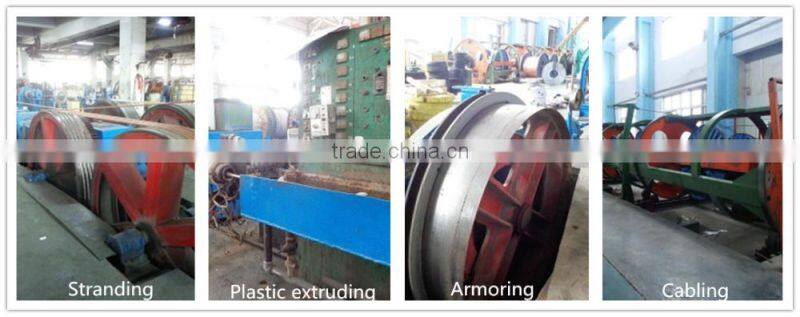

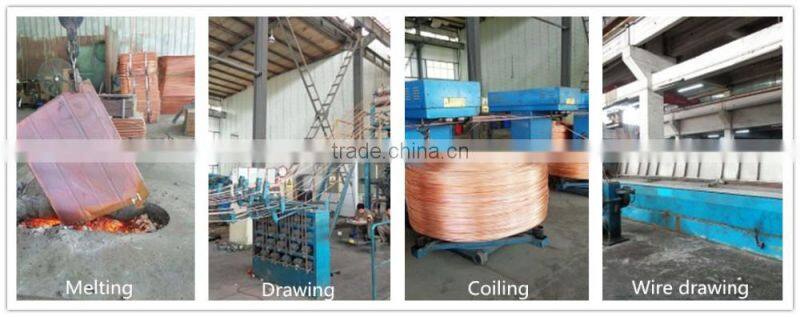

Production Processing:

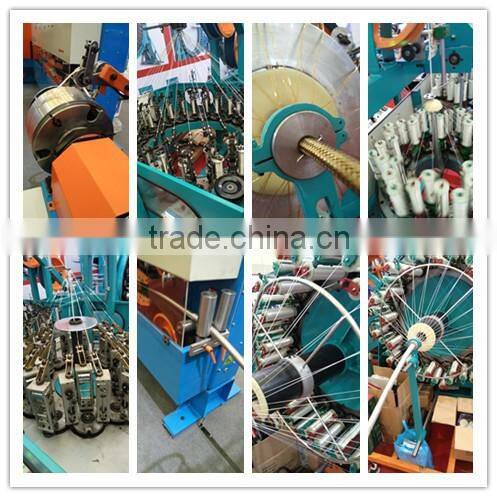

Our equipments:

Our certificates:

Our customers:

Our contact information:

 OEM for customer's label

 Fast delivery

 Perfect after sale service.

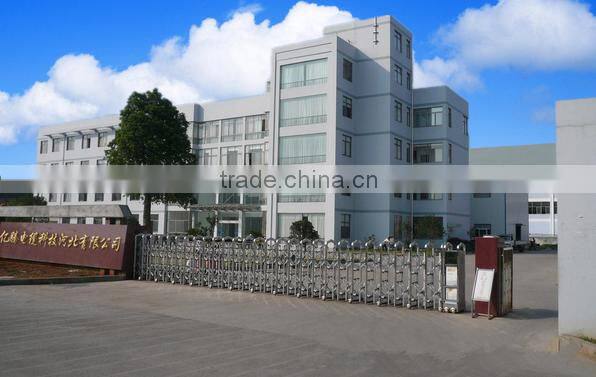

Yiteng is specializing in manufacture for all kinds of cables. It was founded in 1990. And it’s main products includes: XLPE cables from 1KV To 500KV. With over 500 workers, all kinds of advanced equipments (producing, testing), we always keep the best quality for the cables. And with all these advantages, we had covered more than 30 customers from 13 countries in the world. And we will always keep in persist for the quality all the time! We warmly welcome your inquiry and visit our factory at any time.

1. What’s your MOQ?

Usually the MOQ if each kind is 500 meters, but it still depends on different situations from different customers!

2. Do you provide OEM services?

Yes, we do OEM and customize our cables according to your special requests.

3. What’s your delivery time?

Well, it depends, according to different quantities of the cables, the delivery time is from 12 days to 30 days usually.

4. Do you provide free samples for testing?

Yes, we provide free samples, but samples are charged. But the sample and express fees will be deducted from the order which you placed to us!

5.If I want to visit your company some day, is this available?

Surely we warmly welcome your visit for us at any time. It will be our honor and a very good chance for cooperation of both sides.
