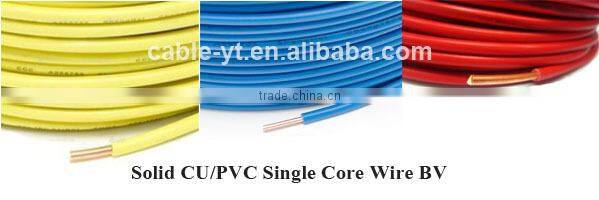

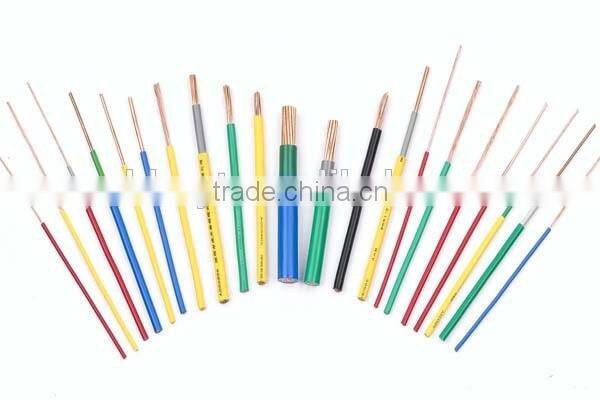

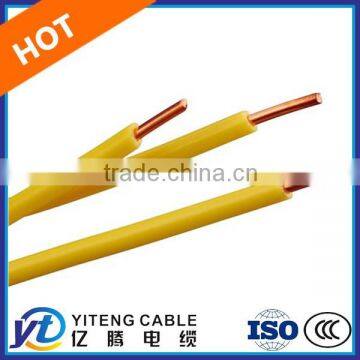

Solid Single-Core Copper/ PVC Insulated Wire (BV)

A. Description

Construction: Solid annealed copper wire as conductor (Class 1), PVC insulated single core wire.
Code Name: H05V-U ( 0.5mm² ~ 1.0mm² );  H07V-U ( 1.5mm² ~ 10mm² )
Voltage: 300/500V for H05V-U;  450/750V for H07V-U.

B. Voltage Uo/U

450/750V 300/500V

Max. permissible continuous operating temperature of the conductor: 70
The ambient temperature under installation should not below 0.

Impedance (ohms): 100±2ohm

C. Application
The non-sheathed single core wire is used for fixed wiring. It is laid in dry, normal and light duty conditions, such as in conduit and under plaster in building.

D. Manufacturing Standards
GB/T 5023-2008, BS 6004, IEC 60227

E. Specification Size and Technical Data

With Yiteng Cable, for the Electrical Wires,

Packing:

1. Packing Length:100m/roll, 200m/roll, 305m/roll, 500m/roll
2. Inner packing: Transparent Shirnk Film, Easy pull box, Wooden reel, plastic reel
3. Outer packing: Carton box, pallet available
4. Other packing available according to client's request.

Shipping:

Normally immediate shipment is available for regular items,  custom-made production lead time is 15-20 days.

Why Choose US?

Yiteng Cable Technology  Hebei Co., Ltd. sincerely ensure every present and potential customers and friends that we will always:

1. Make A Response with 12 Hours to All Custoemers;

2. ISO9001, ISO14001, CCC Certificates for Factory and Cable Products;

3. Factory Direct Supply and OEM Service of Cable Products;

4. Yiteng Cable will not only serve goods before selling, but will be better and better during sales and after sales;

5. All Customers' Information will be kept confidential without permission;

6. Production standard depends on customer's technic requirement, otherwise according to IEC, NFC standard;

7. Before production, technical data will be clarified with customer in case of any error or misunderstanding;

8. Trading Terms: FOB Tianjin, Qingdao, Shanghai, or CIF, CFR and other ways are also available;

9. Yiteng Cable can also help customers to seek for and inspect goods and factories of other categories once our cable deal is stable.

Yiteng Cable Technology Hebei Co.,Ltd. is a specialized manufacturer of cables.

Contact US

If you have any question about our products, pls contact us directly.

We will responde to you within 12 hours and there are our technical team to assist you all the time.
