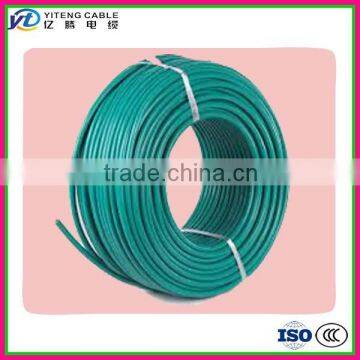

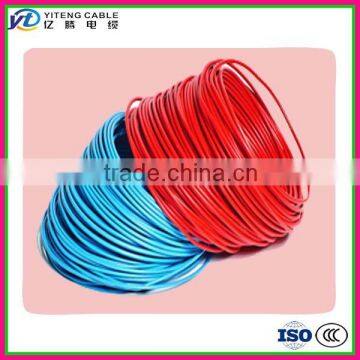

House Electric Wire PVC Insulated Electric Wire Rigid Cable / Electric Cable / bv Bvv Bvr Bvvr Cable

Type

Name

Laying place and requirement

Long term working temperature

227IEC01/05
BV
BLV

Copper conductor PVC insulated wires

Fixed laid indoors, conduits etc.

70

Aluminum Conductor PVC insulated wires

227IEC07
BV-90

Heat resistant copper conductor PVC insulated wires at 90

Mainly be laid at the places of high temperature environment and can be laid indoors, conduits.

70

BVR

Copper conductor PVC insulated flexible wire

Be for laying permanent place where flexible required

70

227IEC10
BVV

Copper conductor PVC insulated PVC sheathed round wires

Fixed laid, fit for the places with high mechanical protection and moisture place. Can be laid in the air or underground.

70

BLVV

Aluminum conductor PVC insulated PVC sheathed round wires

BVVB

Copper conductor PVC insulated PVC sheathed flat wires

BLVVB

Aluminum conductor PVC insulated sheathed flat wires

227IEC02RV
227IEC06RV

Copper conductor PVC insulated  flexible connector

Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required.

70

227IECC42
RVB

Copper conductor PVC insulated flat flexible connector

RVS

Copper conductor PVC insulated  flexible twisting connector wire

227IEC52
RVV
227IEC53
RVV

Copper conductor PVC insulated PVC sheathed round flexible connector (light and common type)

    Section

mm2

Conductive wire core

Insulation Thickness

mm2

The average outer diameter

mm2

At 20 Conductor resistance Ω / km less than

70 , the minimum insulation resistance MΩ / km

Root number / diameter,

mm2

copper

copper

1

1/1.13

0.6

2.8

18.1

0.011

13.7

1.5

1/1.38

0.7

3.3

12.1

0.011

20.1

2.5

1/1.78

0.8

3.9

7.41

0.01

32

4

1/2.25

0.8

4.4

4.61

0.0071

46.8

6

1/2.70

0.8

4.9

3.08

0.007

66.5

10

7/1.35

1

7

1.83

0.0065

116

16

7/1.70

1

8

1.15

0.005

176.5

25

7/2.14

1.2

10

0.727

0.005

277.7

35

7/2.52

1.2

11.5

0.524

0.004

375

50

19/1.78

1.4

13

0.384

0.0045

501.3

70

19/2.14

1.4

15

0.268

0.0035

706.5

95

19/2.52

1.6

17.5

0.193

0.0035

974.4

120

37/2.25

1.6

19

0.153

0.0032

1209.8
