Home > Products > Electrical Wire > Central Office Cables, General Purpose Wire, Direct Burial Wire House Electric Wire PVC Insulated Electric Wire
Central Office Cables, General Purpose Wire, Direct Burial Wire House Electric Wire PVC Insulated Electric Wire
- Tianjin port or any port in China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Electric Wire Cable, Heavy Duty Electric Wire, Flat Wire Power Cable
-
Multipair Cable , Multicore Cable, Pvc Insulated Wire Bvv Rvv for Construction
-
Floor Heating Cable, Hook Up Wire , Flat Wire
-
PVC Insulated Electrical Wire Cable 0.3 0.5 0.75 1 1.5 2.5 4 6 10mm2
-
1.5mm 2.5mm 4mm 6mm 10mm House Wiring Electrical Wire and Cable PVC Insulated Electric Wire
-
Aluminium Conductor Wire , PVC Insulated Wire , PVC Sheath Wire
Product Details
| Place of Origin | Hebei, China | Brand Name | yiteng | |
| Model Number | BVV | Insulation Material | Other, pvc,xlpe,rubber or other | |
| Type | Low Voltage | Application | Construction | |
| Conductor Material | Copper | Jacket | PVC |
Product Description
Central Office Cables, General Purpose wire, direct burial wire House electric wire PVC insulated electric wireCentral Office Cables, General Purpose wire, direct burial wire House electric wire PVC insulated electric wireCentral Office Cables, General Purpose wire, direct burial wire House electric wire PVC insulated electric wireCentral Office Cables, General Purpose wire, direct burial wire House electric wire PVC insulated electric wireCentral Office Cables, General Purpose wire, direct burial wire House electric wire PVC insulated electric wire
Main advantage
ISO9001
Factory
OEM
SGS
Standard:
According to GB/T5023, equivalent to IEC60227.
It can also be made complying with ASTM, BS, DIN standards.
Besides, we can design and manufacture the products to the buyer's requirements.
Specification

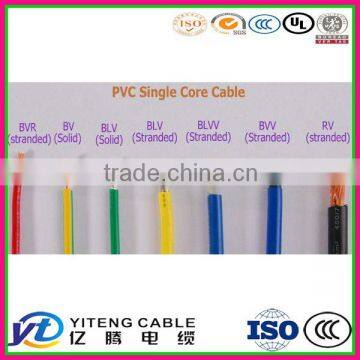

Type | H05V-U, H07V-U, H07V-R, BS6004 6491X, BV, BVR |
Voltage Rate | 300/500V, 450/750V |
Range of Nominal cross section: | 0.75 mm2 ~ 630 mm2 |
Application | These cables are used for general purpose, as building wire for power, lighting and control wire to electrical appliances, suitable for use in conduit and for fixed, protected installation. |
Standard | IEC 60227, BS 6004, VDE0281, GB/T 5023, JB/T8734 |
Constructions | Conductor: Class 1/2 Plain annealed copper wires, solid or stranded Insulation: PVC Core color: Red, Brown, Grey, Black, Blue, Green/Yellow or others on request |
Max. Operating Temperature | 70°C, can be 90°C,105°C as per requirement |
Packing | 100 meter/roll or as per requirement |
Production Capacity | 100 kilometer/ day |
Delivery time | 10~15 working days |
Remark | The cable can be of flame retardance, fire resistance and other property |
H07V-R, H07V-U, 60227IEC01 (BV BLV (BV-90)450/750V)
Nominal section (mm2) | Number/diameter of core (mm) | Maximum outer diameter (mm2) | Reference weight (Kg/km) | Conductor resistance at 20°C ≤(Ω/km) | ||
copper | aluminum | aluminum | copper | |||
1.5(A) | 1/1.38 | 3.3 | 20.3 | ----- | ----- | 12.1 |
1.5(B) | 7/0.52 | 3.5 | 21.6 | ----- | ----- | 12.1 |
2.5(A) | 1/1.78 | 3.9 | 31.6 | 17 | 11.80 | 7.41 |
2.5(B) | 7/0.68 | 4.2 | 34.8 | ----- | ----- | 7.41 |
4(A) | 1/2.25 | 4.4 | 47.1 | 22 | 7.39 | 4.61 |
4(B) | 7/0.85 | 4.8 | 50.3 | ------ | ----- | 4.61 |
6(A) | 1/2.76 | 4.9 | 65 | 29 | 4.91 | 3.08 |
6(B) | 7/1.04 | 5.4 | 71.2 | ---- | ---- | 3.08 |
10 | 7/1.35 | 7.0 | 119 | 62 | 3.08 | 1.83 |
16 | 7/1.70 | 8.0 | 179 | 78 | 1.91 | 1.15 |
25 | 7/2.04 | 10.0 | 281 | 118 | 1.20 | 0.727 |
35 | 7/2.52 | 11.5 | 381 | 156 | 0.868 | 0.524 |
50 | 19/1.78 | 13.0 | 521 | 215 | 0.641 | 0.387 |
70 | 19/2.14 | 15.0 | 734 | 282 | 0.443 | 0.268 |
95 | 19/2.52 | 17.5 | 962 | 385 | 0.320 | 0.193 |
120 | 37/2.03 | 19.0 | 1180 | 431 | 0.253 | 0.153 |
150 | 37/2.25 | 21.0 | 1470 | 539 | 0.206 | 0.124 |
185 | 37/2.52 | 23.5 | 1810 | 666 | 0.164 | 0.0991 |
240 | 61/2.25 | 26.5 | 2350 | 857 | 0.125 | 0.0754 |

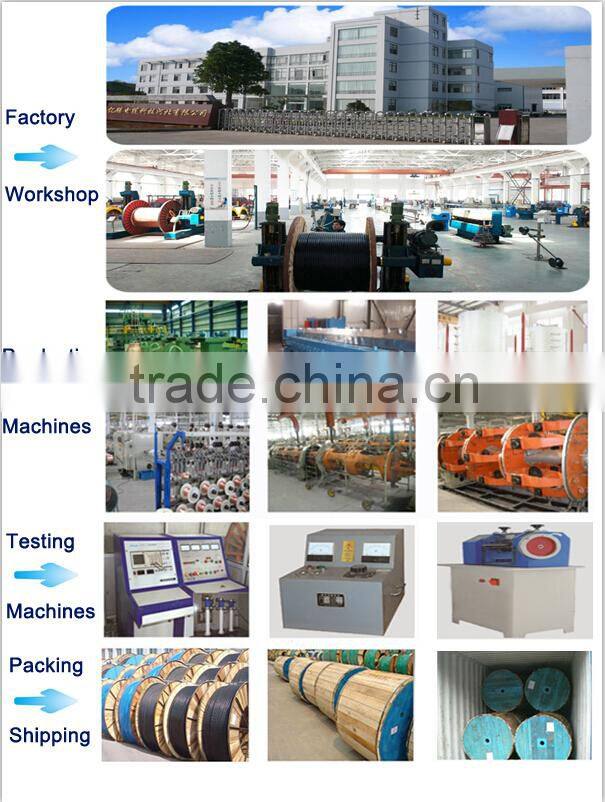

Welcome to our factory! Hope to get in touch with you!
| Factory Name | Yiteng Cable Technology HebeiCo.,Ltd |
| Location | Ningjin Town, Shijiazhuang, Hebei, China |
| Establishes in | 1994, 20 years' experience of producing kinds of cables |
| Export Office Location | Area1 Donghai Building, Shijiazhuang, Hebei, China |
| Our Main Cables Products | Low Voltage Power Cable and Medium Voltage Power Cable with or without Armor(Armor Type:Steel Tape or Steel Wire) High Temperature Cable,Silicone Rubber Insulated Cable, Teflon Insulated Cable Mining Cable, Flexible Rubber Mining Cable, PVC and XLPE Aluminum Alloy Cable with/ without Armor and Interlock Shielded/ Screened Control Cable Computer Shielded Cable Flexible Rubber Cable Electrical Wires |
1. Any inquiries will be replied within 24 hours.
2. OEM/ODM available.
1) Printing your logo on the cable.
2) Printing your logo on the pull box, wooden drum according to your design
3) Any your idea on cable, packing box are available.
3. High quality, reasonable and competitive price, fast lead time.
4. Good after-Sale Service.
1) All products will have been strictly Quality Checked in house before packing.
2) All products will be well packed before shipping.
5. Faster delivery.
Sample order in stock, and 3-7 days for bulk production.
6. Payment
We can accept payment methods: L/C, T/T, Western Union,other payment can negotiation.
7. Package
Standard Export Wooden or Steel Drums or as per Customer's Requirement
8. ISO9001, ISO14001, CCC Certificates for Factory and Cable Products
