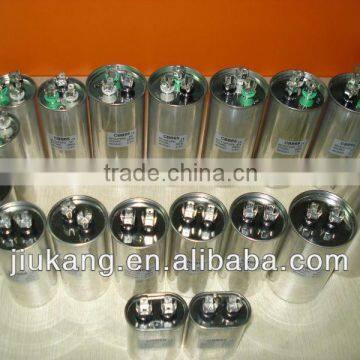

CBB65 AC Dual Capacitor ,double capacitor

Product Character:

coiled by high speed winding machine, encapsulated with Aluminum body.

It is treated by using refined castor oil as impregnant in the high temperature

and vacuum environment to make the capacitor more stable with long working life.

Mean while based on the principle of safety and proof-explosion,this kind of capacitor has been used the second generation mechanical

 explosion proof design to strengthen the reliability.

Features of CBB65 capacitor
1. The product is soaked by special oil, thus it possesses stable electric performance and explosion preventing function.
2. The radiating performance is good, the temperature rise is low and the life is long.
3. Single product could be made into quite high voltage and capacity.

Service Condition

1.Altitude:Applied in the area under 2000 meters.

2.Service temperature:The environment temperature is -25~+70 degree centigrade

3.Relative humidity:Below95%

4.Dirtiness:There's no conducting dust and corrosive gas in the service area.

5.Residual voltage in service:Under10% of rated voltage.

Technical indicators

1.Rated voltage: 200V,250V,400V,450V,500V

2.Rated frequency:50/60Hz

3.Operation mode:Continuous
4.Tangent of loss angle: ≤ 0.2%

5.Capacitor deviation:±5%,±10%

6.Top allowable overvoltage:1.1Un

7.Top allowable overcurrent:1.3In

8.Insulation:Between terminal:2Un.2seconds;None permanent arcover.Between pole and shell:3KV.2seconds;None arc over

Technical Data

Dimensions(mm)

We could design and manufacture as customer's specified specs and dimensions. We can products with any

voltage,capacity,outlet line structure and installing requirements.

Application:

This capacitor widely used for air-conditioners ,refrigerators,generators,illuminating lamps etc.

We accept OEM.
