Gas Filter For Medical Work With CE Certification
Negotiable
/ Unit
1 Unit(Min. Order)
- HONG KONG China
- Credit Card
You May Like
-
Industrial Air Cleaner For Medical Work With CE Certification
-
Dongguan Air Cleaner For Medical Work With CE Certification
-
Portable Fume Filter For Medical Laser Machinery
-
Dongguan Air Filter For Medical Work With CE Certification
-
Portable Fume Filter For Medical Processing
-
Dongguan Air Filter For Medical Work With CE Certification
Product Details
| Place of Origin | Guangdong, China | Brand Name | PURE-AIR | |
| Model Number | PA-500FS |
Product Description
Specifications
PA-500FS gas filter used on medical work to filtrate laser fume & toxic, with CE certificationPA-500FS Gas Filter For Medical Work With CE Certification
1. Strict welding and painting technology achieve to high tightness and corrosion resistance cabinet.
2. Specific sound-absorbing materials reduce operating noise to improve operation efficiency.
3. European imported low-power blower, new high pressure technology, small size, brushless design & electronic speed adjustment.
4. PWM speed control, according to the amount of dust to achieve precise adjustment. Control system is also equipped with sound and light alarm, prompt to clean or replace the filter.
5. PA-500FS filtration system consist of four parts, they are metal filter, F5 class pre-filter, HEPA main filter and gas filter.
(a). Well-proportioned holes to ensure that large dust particles are trapped on the metal filter, to prevent them block the pre-filter.
(b). F5 class pre-filter comprised by cotton and metal mesh, full-thickness adhesive, can be adsorbed middling particles in the air to avoid main filter is blocked.
(c). Main filter consists of efficient HEPA element, in independent tests, these filters remove 99.997% of all particles above 0.3 microns and 95% down to 0.01 micron.
(d). Gas filter layer formed by the chemical materials can effectively remove harmful gases and pungent odor in the air.
6. Filter Data
Filter Elements Data | ||
Item | Technical Data | Remark |
Pre-filter | F8 class | PP pre-filter. |
Main-filter | F14 class HEPA | Filter can remove 99.997% of all particles above 0.3 microns and 95% down to 0.01 micron. |
Air-filter | Chemical materials | Chemical molecular, Oxidant & Active carbon adsorb noxious gas. |
Average filtration rate | ≥99.7% | It will be a little fluctuation according to different materials. |
7. Technical Paremeters
Blower Technical Data | ||
Item | Technical Data | Remark |
Running period | more than 30,000h | One year guarantee |
Max. air flow | 500m³/h | Electronic speed control |
Input capacity | 345W | Low capacity |
Air pressure | 2800pa | High pressure |
Running sound | ≤50dBA | Low sound volume |
Input power | 110/220V, 50/60Hz | International standard |
Equipment Data | ||
Item | Technical Data | Remark |
Fume & dust inlet | 100mm | Single/Double fume inlets, include one/two set fume extract tube |
Fresh air outlet | 100mm | Trapezoid hole |
Machine weight | 56KG (N.W.) | Machine with all elements |
Dimension | 450*450*900mm | Machine size |
Package dimension | 530*530*1020mm | Packed by plywood crate |

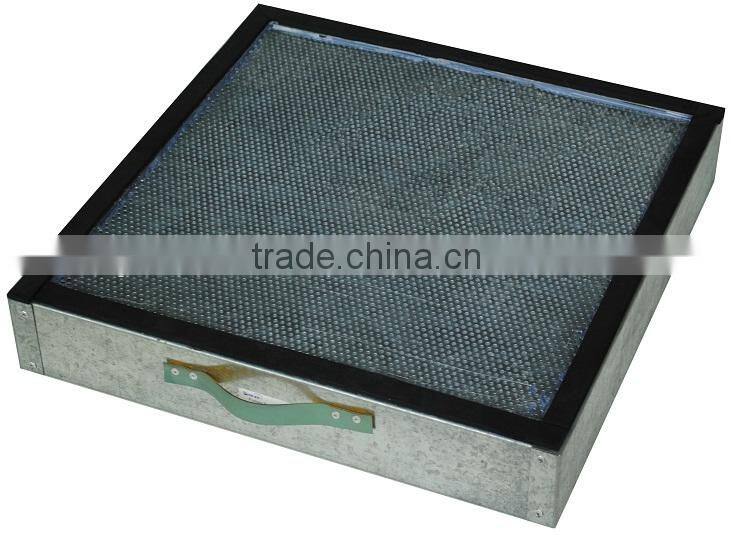

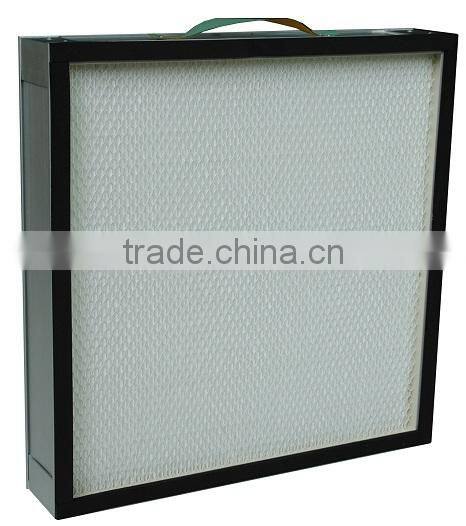

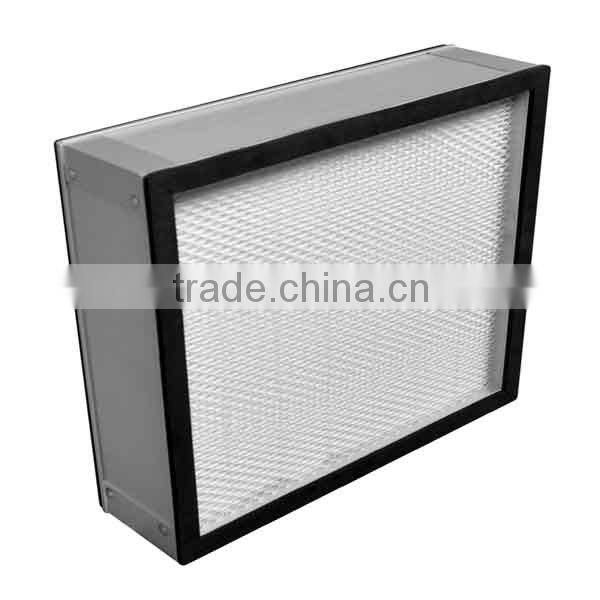

8. Filters photo

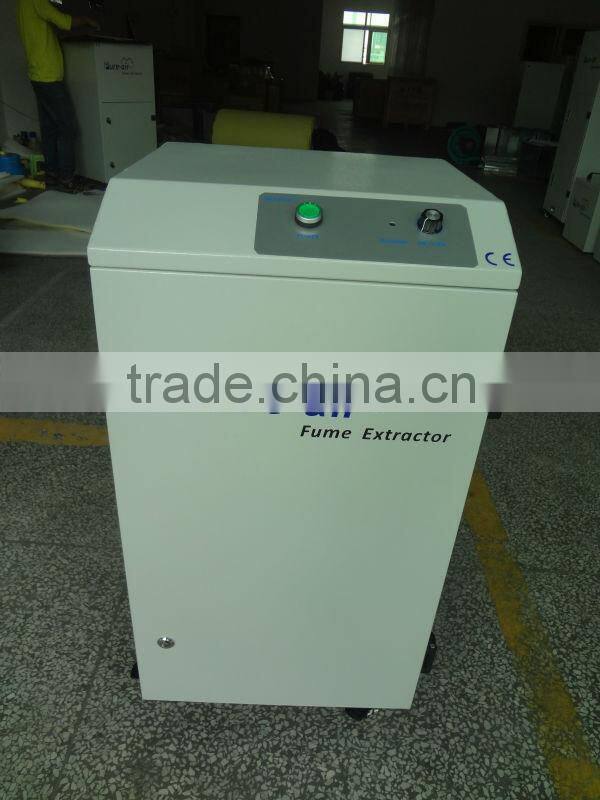

9, Product photo
