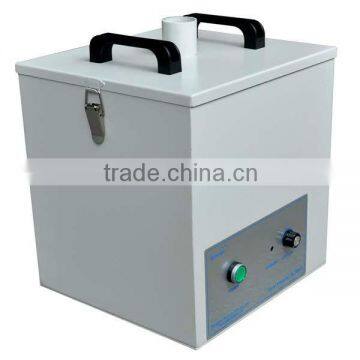

PA-200TS/TD Laser medical treatment gas filter
Negotiable
/ Piece
1 Piece(Min. Order)
- ShenZhen
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Pure-Air | |
| Model Number | PA-200TS(Single Inlet) & PA-200TD(Double Inlet) | After-sales Service Provided | Overseas third-party support available |
Product Description
Specifications
PA-200TS/TD used on laser medical treatment to filtrate the fumes, smell and toxic gas. PA-200TS/TD Laser medical treatment gas filter
1. Strict welding and painting technology achieve to high tightness and corrosion resistance cabinet.
2. Specific sound-absorbing materials reduce operating noise to improve operation efficiency.
3. European imported brushless blower, high pressure, small size, electronic speed adjustment.
4. PWM speed control, according to the amount of dust to achieve precise adjustment.
5. Control system is equipped with sound and light alarm, prompt to clean or replace the filter.
6. By the pre-filter, HEPA main filter and the chemical gas filter composed of three parts filtration system.
7. The main filter and gas filter package blocked with the metal net, it can effective remove fume and harmful gases in the air to achieve indoor air quality restoration. Also reduce the equipment size, saving floor space.
8. After multi-stage dust filtration, can be directly emitted in the room without expensive & complex exhaust project. The indoor temperature can be stability, and save energy. There is no indoor negative pressure to maintaining the air cleanliness.
9. Fliter Elements Data
Filter Elements Data | ||
Item | Technical Data | Remark |
Pre-filter | G4 class, life-time 1-3 months | Cotton filter pad. |
Main-filter | H14 class HEPA, life-time 6-10 months | Filter can remove 99.997% of all particles above 0.3 microns and 95% down to 0.01 micron. |
Air-filter | Chemical material, life-time 6-10months | Chemical molecular, Oxidant & Active carbon adsorb noxious gas. |
Average filtration rate | ≥99.7% | It will be a little fluctuation according to different materials. |
10. Technical Paremeters
Blower Technical Data | ||
Item | Technical Data | Remark |
Running period | more than 30,000h | One year guarantee |
Max. air flow | 200m³/h | Electronic speed control |
Input capacity | 130W | Low capacity |
Air pressure | 2800pa | High pressure |
Running sound | ≤45dBA | Low sound volume |
Input power | 110/220V, 50Hz/60Hz | International standard |
Equipment Data | ||
Item | Technical Data | Remark |
Fume & dust inlet | 50mm | Single fume inlet, include one set fume extract tube |
Fresh air outlet | 100mm | Shutter |
Machine weight | 15KG(N.W.) | Machine with all elements |
Dimension | 310×330×450mm | Machine size |
Package dimension | 405×410×480mm | Packed by plywood crate |
