Home > Products > Video Capture Card > hd Video Capture Card Pcie 1080p60 Hdmi Video Capture Card
hd Video Capture Card Pcie 1080p60 Hdmi Video Capture Card
US$ 350 - 400
/ Piece
1 Piece(Min. Order)
- Shenzhen
- Credit Card PayPal
You May Like
-
HDMI d hd Video Capture Card Pcie 1080p60
-
for Video Conferencing Systems DVI Input DVI-I Video Capture Device
-
1080P Video Capture Card PCIe Video Card With Rca Output
-
HDMI Video Capture Card 1080P PCIe Video Grabber
-
2013 Hdmi Video Capture Card With Ypbpr AV S-VIDEO
-
Real PCIe HD Video Capture Grabber
Product Details
| Type | Video Conference System | Function | Voting | |
| Simultaneous Interpretation | Yes | Place of Origin | Guangdong, China | |
| Brand Name | KATO/OEM | Model Number | HDCA02 |
Product Description
hd video capture card pcie 1080p60 hdmi video capture card
HDCA02 with whole A/V input terminal, support 1080p/ 720p / 480p / 480i, 1080i full HD full screen real-time preview & capture while without distortion, can connect digital TV STB, MOD, BD Blu-Ray Player, HDV digital camera, Xbox & PS3, etc. offer DVI-I (DVI-D or VGA) input, can connect another PC / Mac display card to record directly.
hd video capture card pcie 1080p60 hdmi video capture card
Support Windows 7
Support HD 1080p real-time record
MPEG-4 real-time compress

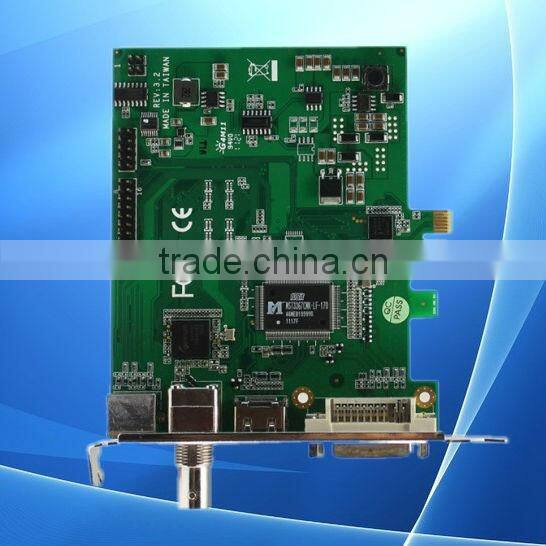

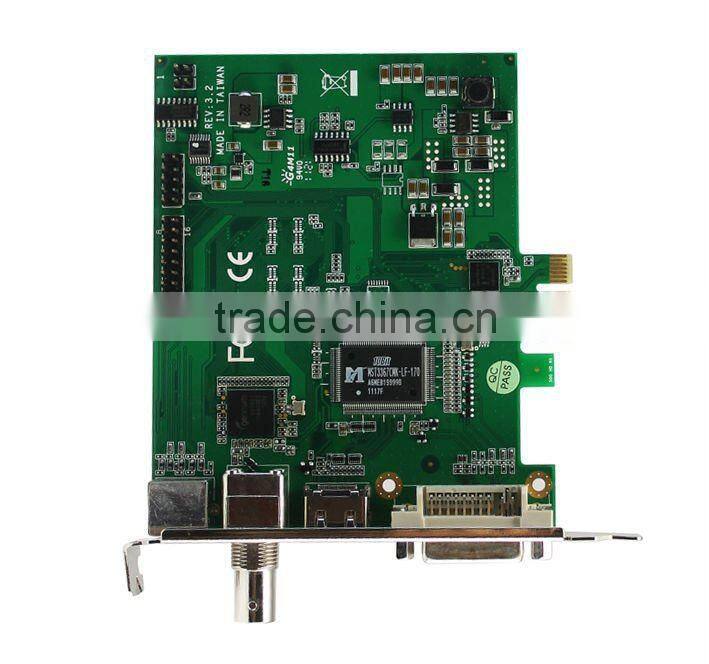

MST3367CMK-LF-170 10-bit HD Image processing chip
PCI-Express *1, support plug and play
Support NTSC/PAL
Dynamic acquisition: AVI(MPEG-4/VBR) and Static collection: BMP/JPG format
Sampling frequency: 16-bit / 32~48KHz/ Stereo
4:3 / 16:9 display
Image window zoom and full screen preview
Video format detect, window display ration automatically
Zooming display function (MouseWheel)
1080P video capture card PCIe video card with rca output
Input Terminal | Mode | NTSC | PAL | |
SDI | HD | 1080P | 1920*1080p*30fps | 1920*1080p*25fps |
1920*1080p*24fps | 1920*1080p*24fps | |||
1080I | 1920*1080i*30fps | 1920*1080i*25fps | ||
720P | 1920*720p*60fps | 1920*720p*50fps | ||
Ypbpr VGA DVI HDMI | HD | 1080P | 1920*1080p*30fps | 1920*1080p*25fps |
1920*1080p*24fps | 1920*1080p*24fps | |||
1080I | 1920*1080i*30fps | 1920*1080i*25fps | ||
720P | 1920*720p*60fps | 1920*720p*50fps | ||
SD | 480P | 720*480p*60fps | 720*576p*50fps | |
480I | 720*480i*30fps | 720*576i*25fps | ||
VGA DVI HDMI | PC | 800*600p*60fps | 800*600p*60fps | |
1024*768p*60fps | 1024*768p*60fps | |||
1280*960p*60fps | 1280*960p*60fps | |||
1280*1024p*60fps | 1280*1024p*60fps | |||
1440*900p*60fps | 1440*900p*60fps | |||
1080P video capture card PCIe video card with rca output Parameter:
Dimension | 114.44*101.03(mm) |
Interface | PCIe*1 |

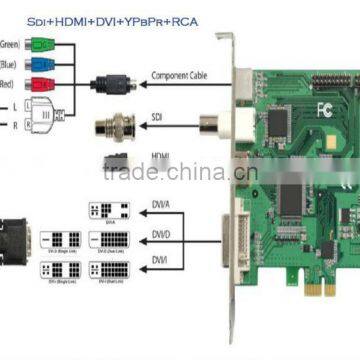

Video Input | 1*SDI, 1*HDMI, 1*DVI-D, 1*DVI-I, 1*Ypbpr |
Video Format | YUY2 |
Video Resolution | NTSC/PAL |
1920*1080p@30/25/24fps 1920*1080i@60/50fps 1280*720p@60/50/30/25fps 720*480p@60fps 7208576i@50fps (HDMI, DVI-D/I, Ypbpr only) 1440*900p@60fps 1280*1024p@60fps 1280*960p@60fps 1024*768p@60fps 800*660p@60fps 640*480p@60fps 720*480p@60fps 720*586p@60fps | |
Video Record Format | MPEG4/H.264(Depend on Software Application) |
Video Record Resolution | NTSC/PAL |
1920*1080p@30/25/24fps 1920*1080i@60/50fps 1280*720p@60/50/30/25fps 720*480p@60fps 7208576i@50fps (HDMI, DVI-D/I, Ypbpr only) 1440*900p@60fps 1280*1024p@60fps 1280*960p@60fps 1024*768p@60fps 800*660p@60fps 640*480p@60fps 720*480p@60fps 720*586p@60fps | |
Audio Input | 1*SDI, 1*HDMI, 2*RCA |
Audio Format | Stereo / 16-bit/3200-4800Hz |
I/O | 16 |
WatchDog | √ |
Multi Card Composite | ∞ |
SDK | VC++ / .NET / BCB / VB/ V4L2 |
System Requirement | |
Operation System | WINDOWS XP /VISTA/ 7 Linux 2.6. 14 or higher (32-bit and 64-bit) |
Accessories:

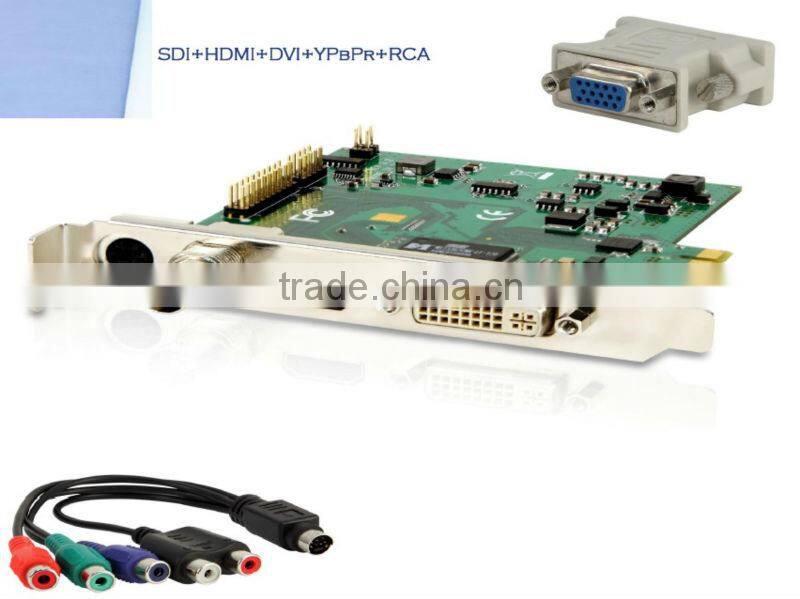

Warrantee Card, User Manual, Disk, Video Grabber, DVI to D-SUB(VGA), Ypbpr & Audio connecter.
