Ptz Joystick Visca Controller

Specifications

ptz joystick visca controller is metal structure, Vandal Proof, with USB, RS232, 422, 485 Bus, Camera protocols including SONY VISCA, Polycom, Cisco, Canon, Pelco P&D, AD, Samsung, Panasonic, Dahua, etc. DVR protocols including Appro, HighEasy, Nadatel, Dahua, Hikvision. Dali, Hanbang, etc !  Best choce for SD/HD PTZ video conference camera system, DVR, high speed dome camera, constant-speed dome camera, etc. other surveillance system control, Much protocols, baud rate, etc. are Settable, the best choice of remote control unit

ptz joystick visca controller Feature:

Features:

²  Unique control code learning function to make revise orders freely.

²  Each equipment which connect with RS485 bus can set different protocols and Baud rate individually

²  The maximum of RS485 control bus can control 255 adress,128 equipment in parallel at the same time.

²  Great Anti-lighting design and Anti-interference ability. The standard transmission distance up to 1200 meters.

²  The cascade port can connect15 vice keyboards at maximum.

²  Multiple protocols selectable. Specific standard SONY VISCA protocol 9600bps,19200bps.

²  Password protection function.

²  Keyboard with infinitely variable speed

²  7 video conference cameras cascade control

ptz joystick visca controller Specification:

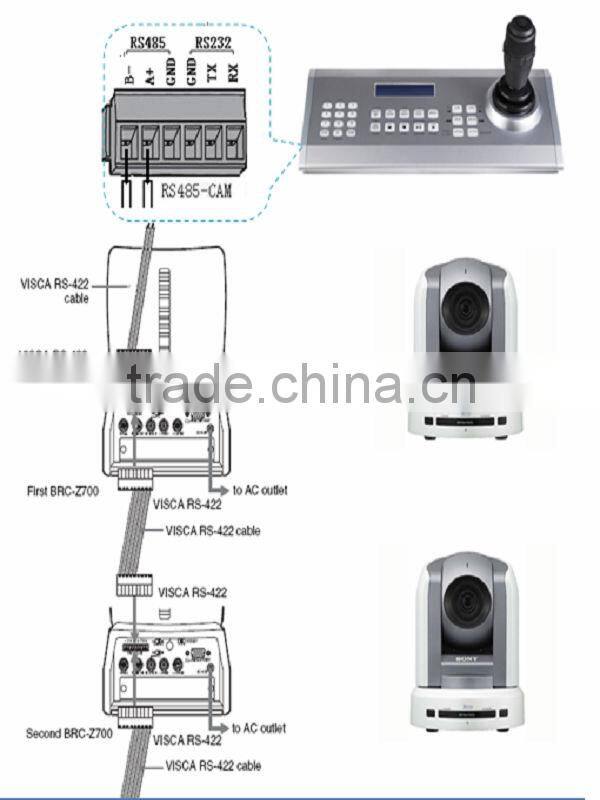

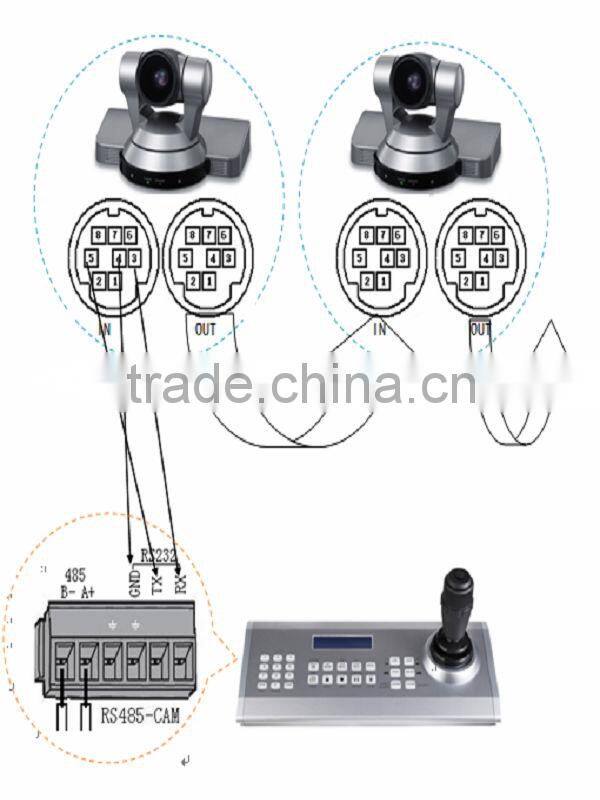

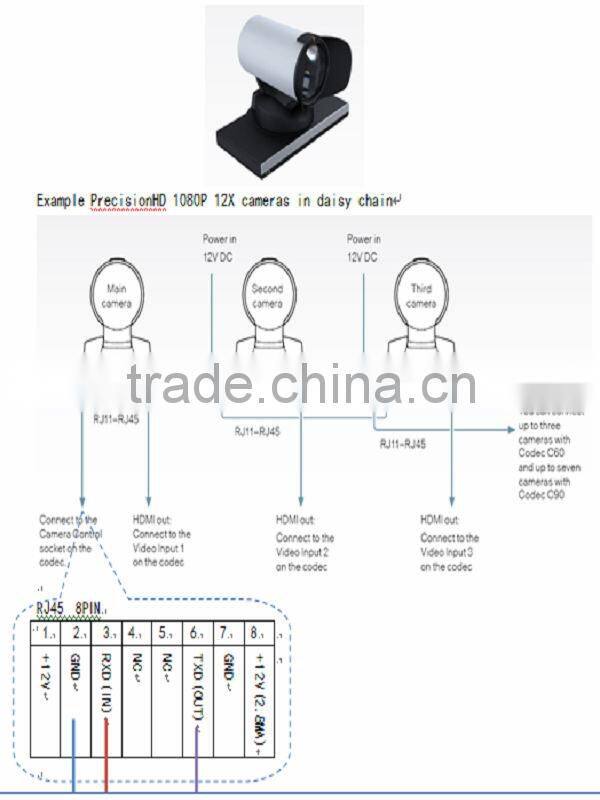

ptz joystick visca controller connect programm
