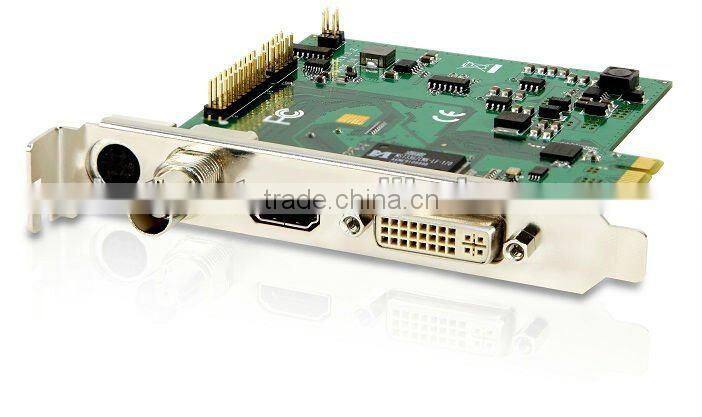

4Channel PCI HDMI Video Capture Express Card with DVI HD-SDI Ypbpr

FOB Price

USD $190 - $490 / Piece

1 Piece(Min.Order)

Port ShenZhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	KATO/OEM		Model Number	HDCA02
Place of Origin	Guangdong, China

Product Description

Specifications

1.DVI HD-SDI Ypbpr Input
2.1920 *1080i(50/60), 1920 *1080p(24/25/30)
3.WINDOWS XP /VISTA/ 7 Linux (32-bit and 64-bit)

4CH PCIe HDMI Video Capture Card with DVI HD-SDI Ypbpr Input

Product Overview

Interface:                 PCI Express x 1 HD video capture card

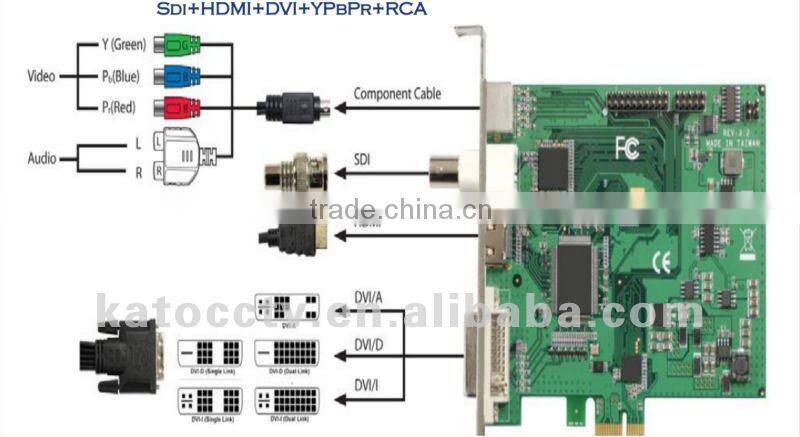

Video input:             Component(YPbPr),DVI-I(RGB),HDMI,and SDI(Optional)
Max.Resolution:      Up to 1920 *1080i(50/60) and 1920 *1080p(24/25/30)
Support devices:     VGA resolution,up to 1280 x 1024 and 1440 x 900

Software Supported:

self-developed Software-Stream catcher
Adobe Flash Media Live Encoder3.2
Ustream Producer 1.0.2
Window media encoder 9.0
Edius 6.0x--6.5
VLC 2.0
AMCAP
SKYPE
Expression Encoder4.0

Dimension	114.44*101.03(mm)
Interface	PCIe*1
Video Input	1SDI, 1HDMI, 1DVI-D, 1DVI-I, 1*Ypbpr
Video Format	YUY2
Video Resolution	NTSC/PAL
Video Resolution	19201080p@30/25/24fps 19201080i@60/50fps 1280720p@60/50/30/25fps 720480p@60fps 7208576i@50fps (HDMI, DVI-D/I, Ypbpr only) 1440900p@60fps 12801024p@60fps 1280960p@60fps 1024768p@60fps 800660p@60fps 640480p@60fps 720480p@60fps 720586p@60fps
Video Record Format	MPEG4/H.264(Depend on Software Application)
Video Record Resolution	NTSC/PAL
Video Record Resolution	19201080p@30/25/24fps 19201080i@60/50fps 1280720p@60/50/30/25fps 720480p@60fps 7208576i@50fps (HDMI, DVI-D/I, Ypbpr only) 1440900p@60fps 12801024p@60fps 1280960p@60fps 1024768p@60fps 800660p@60fps 640480p@60fps 720480p@60fps 720586p@60fps
Audio Input	1SDI, 1HDMI, 2*RCA
Audio Format	Stereo / 16-bit/3200-4800Hz
I/O	16
WatchDog	√
Multi Card Composite	∞
SDK	VC++ / .NET / BCB / VB/ V4L2
System Requirement
Operation System	WINDOWS XP /VISTA/ 7 Linux 2.6. 14 or higher (32-bit and 64-bit)

Resolution Support:

Input Terminal		Mode	NTSC	PAL
SDI	HD	1080P	19201080p30fps	19201080p25fps
		1080P	19201080p24fps	19201080p24fps
		1080I	19201080i30fps	19201080i25fps
		720P	1920720p60fps	1920720p50fps
Ypbpr VGA DVI HDMI	HD	1080P	19201080p30fps	19201080p25fps
		1080P	19201080p24fps	19201080p24fps
		1080I	19201080i30fps	19201080i25fps
		720P	1920720p60fps	1920720p50fps
	SD	480P	720480p60fps	720576p50fps
	SD	480I	720480i30fps	720576i25fps
VGA DVI HDMI	PC		800600p60fps	800600p60fps
			1024768p60fps	1024768p60fps
			1280960p60fps	1280960p60fps
			12801024p60fps	12801024p60fps
			1440900p60fps	1440900p60fps

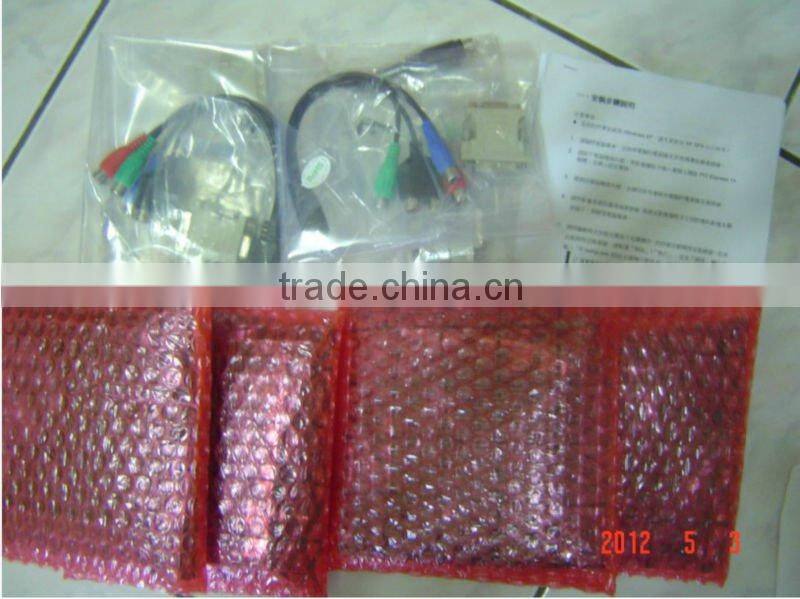

Accessories:

Warrantee Card, User Manual, Disk, Video Grabber, DVI to D-SUB(VGA), Ypbpr & Audio connecter.

Note: DVI input DVI-I
