Chinese Advance Marine Gearbox planetary gearbox HC600A for Marine Engine used
- Shanghai or any other ports in China
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Advance | |
| Model Number | HC600A | Gearing Arrangement | Planetary | |
| Input Speed | 1000-2100r/min | Output Speed | 1000-2100RPM |
Product Description

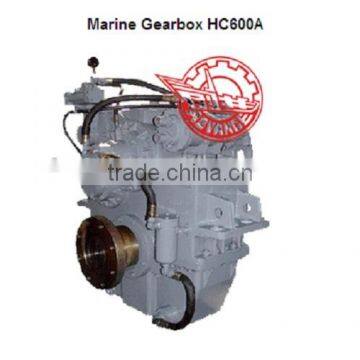

Chinese Advance Marine Gearbox planetary gearbox HC600A for Marine Engine used
Description:
Marine Gearbox HC600A possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and one-stage transmission, featuring in small in volume and light in weight.
Main Data:
Input speed | 1000-2100r/min | ||
Reduction ratio | 2.00,2.48,3.00 | Trans. capacity | 0.48kw/r/min |
3.58 | 0.44kw/r/min | ||
3.89 | 0.40kw/r/min | ||
Control way | Push-and-pull flexible shaft, electrically, pneumatically | ||
Rated thrust | 90KN | ||
Center distance | 320mm | ||
L×W×H | 745*1094*1126mm | ||
Net weight | 1300kg | ||
Flywheel | SAE18,16,14 | ||
Bell housing | SAE00,0 | ||
Application:
Marine Gearbox HC600A is suitable for passenger, fishing, and various engineering and transport boats.
